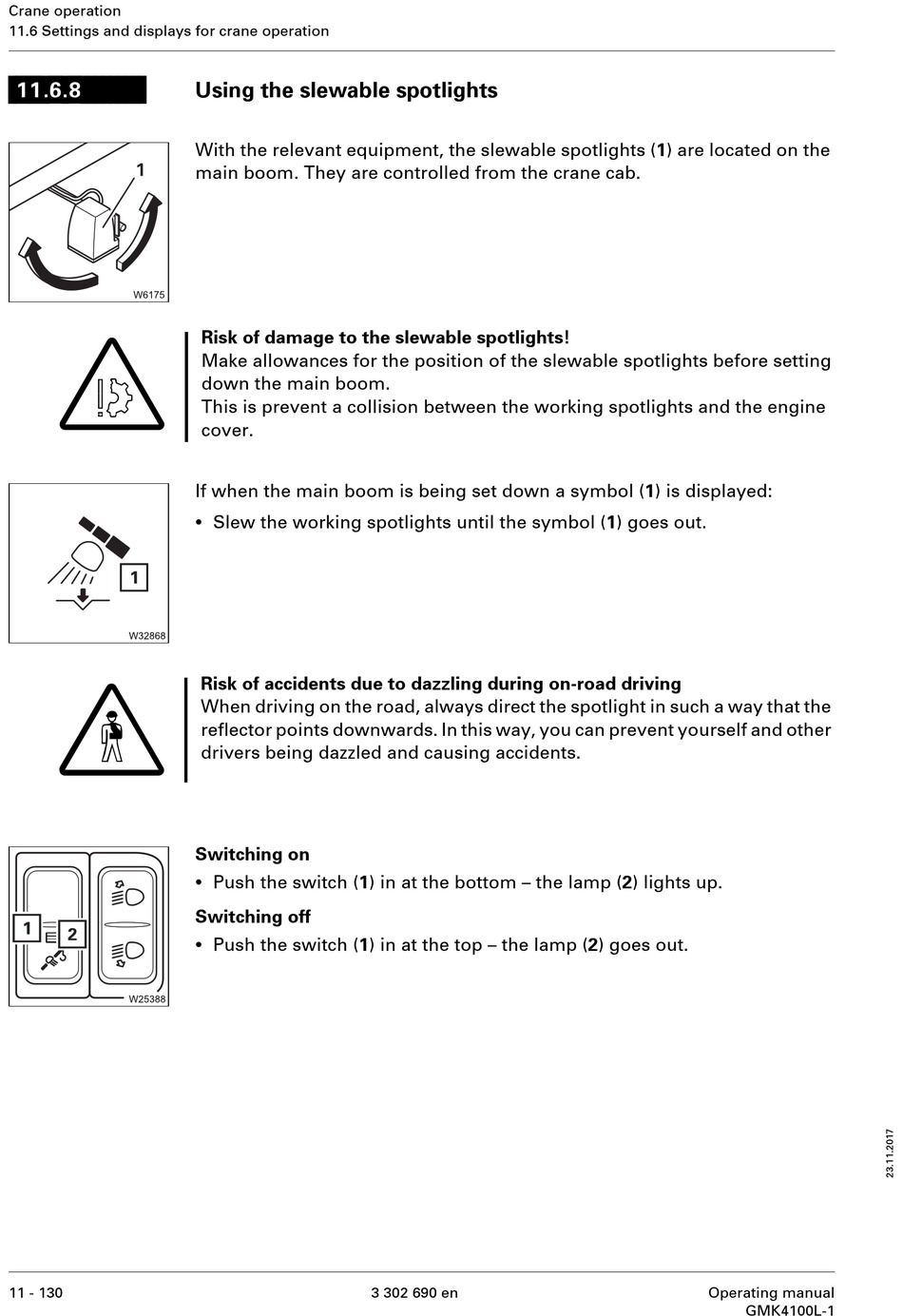

Using the slewable spotlights

With the relevant equipment, the slewable spotlights (1) are located on the
main boom. They are controlled from the crane cab.
Risk of damage to the slewable spotlights!
Make allowances for the position of the slewable spotlights before setting
down the main boom.
This is prevent a collision between the working spotlights and the engine
cover.
If when the main boom is being set down a symbol (1) is displayed:
•
Slew the working spotlights until the symbol (1) goes out.
Risk of accidents due to dazzling during on-road driving
When driving on the road, always direct the spotlight in such a way that the
reflector points downwards. In this way, you can prevent yourself and other
drivers being dazzled and causing accidents.
Switching on
•
Push the switch (1) in at the bottom – the lamp (2) lights up.
Switching off
•
Push the switch (1) in at the top – the lamp (2) goes out.
