Operating elements for driving
3.2 Short description of the operating elements
3.2.4
Instrument panel
3 - 44

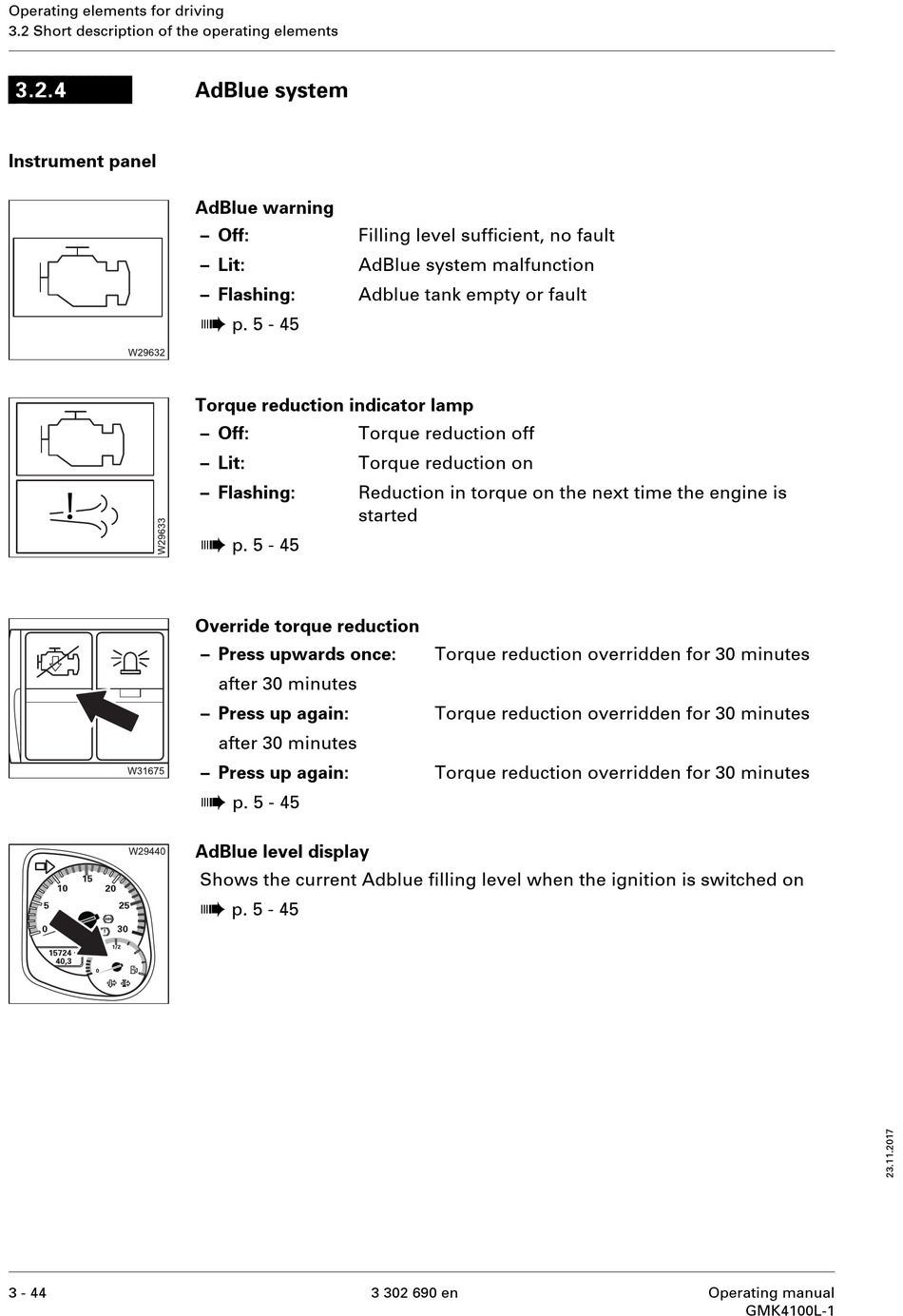

AdBlue system

AdBlue warning
– Off: Filling level sufficient, no fault
– Lit: AdBlue system malfunction
– Flashing: Adblue tank empty or fault
à
p. 5 - 45
Torque reduction indicator lamp
– Off: Torque reduction off
– Lit: Torque reduction on
– Flashing: Reduction in torque on the next time the engine is
started
à
p. 5 - 45
Override torque reduction
– Press upwards once:
after 30 minutes
– Press up again:
after 30 minutes
– Press up again:
à
p. 5 - 45
AdBlue level display
Shows the current Adblue filling level when the ignition is switched on
à
p. 5 - 45
Torque reduction overridden for 30 minutes
Torque reduction overridden for 30 minutes
Torque reduction overridden for 30 minutes
3 302 690 en Operating manual
GMK4100L-1
