Driving modes
6.4 Rigging the auxiliary hoist
6.4.4
6 - 20

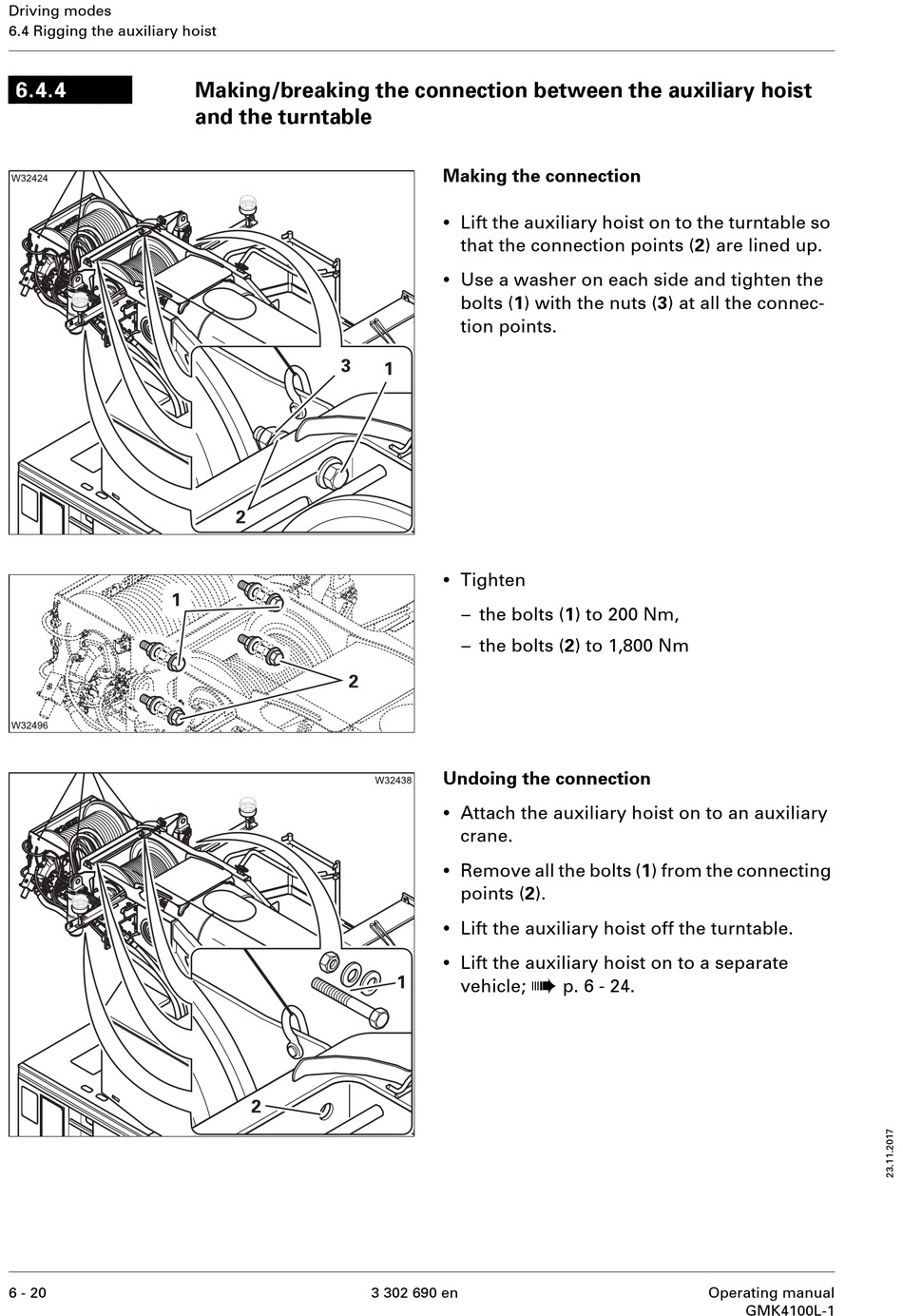

Making/breaking the connection between the auxiliary hoist
and the turntable
Making the connection
•
Lift the auxiliary hoist on to the turntable so
that the connection points (2) are lined up.
•
Use a washer on each side and tighten the
bolts (1) with the nuts (3) at all the connec-
tion points.
•
Tighten
– the bolts (1) to 200 Nm,
– the bolts (2) to 1,800 Nm
Undoing the connection
•
Attach the auxiliary hoist on to an auxiliary
crane.
•
Remove all the bolts (1) from the connecting
points (2).
•
Lift the auxiliary hoist off the turntable.
•
Lift the auxiliary hoist on to a separate
à
vehicle;
3 302 690 en
p. 6 - 24.
Operating manual
GMK4100L-1
