Operating manual
GMK4100L-1

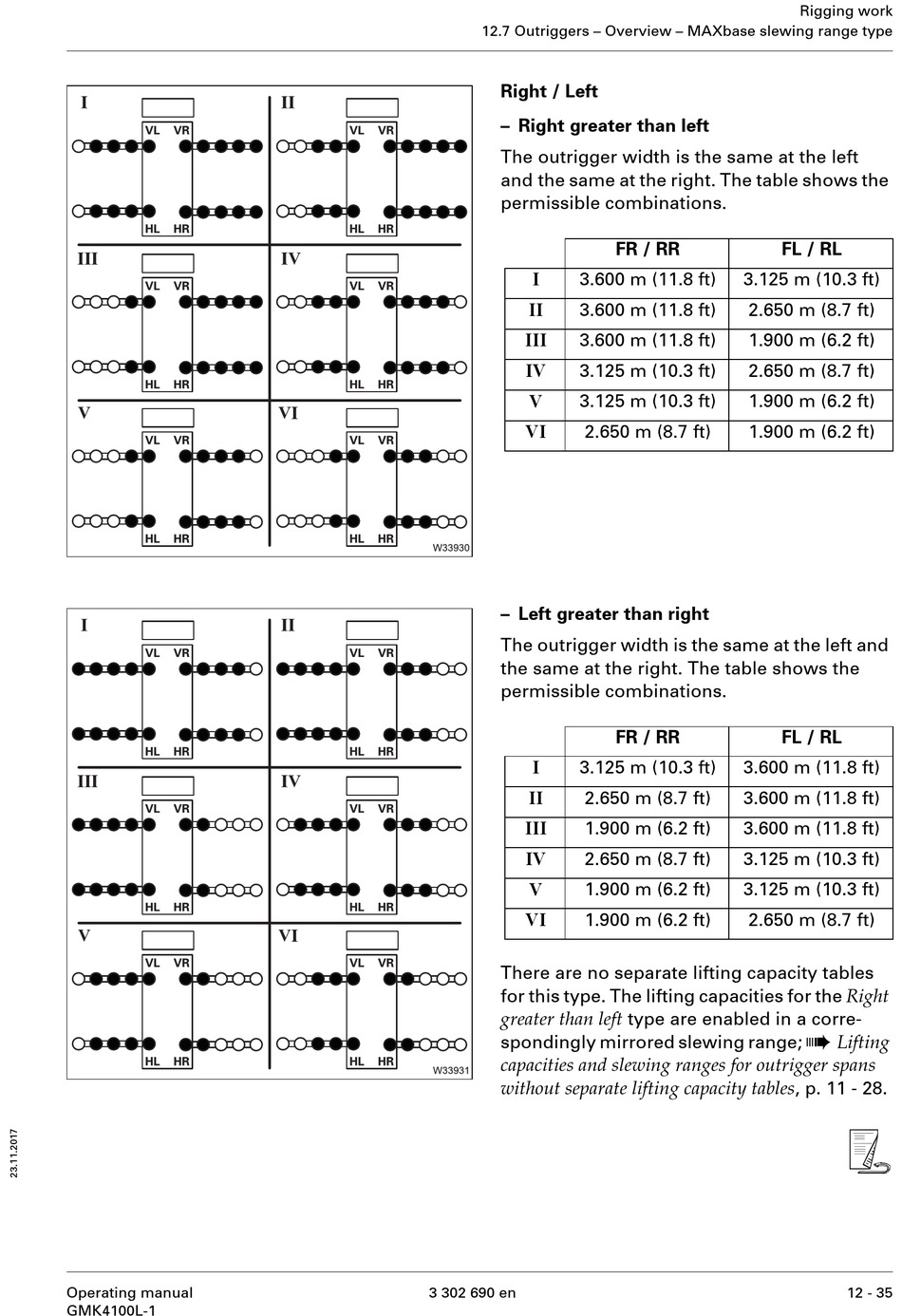

12.7 Outriggers – Overview – MAXbase slewing range type
Right / Left
– Right greater than left
The outrigger width is the same at the left
and the same at the right. The table shows the
permissible combinations.
I
3.600 m (11.8 ft)
II
3.600 m (11.8 ft)
III
3.600 m (11.8 ft)
IV
3.125 m (10.3 ft)
V
3.125 m (10.3 ft)
VI
2.650 m (8.7 ft)
– Left greater than right
The outrigger width is the same at the left and
the same at the right. The table shows the
permissible combinations.
I
3.125 m (10.3 ft)
II
2.650 m (8.7 ft)
III
1.900 m (6.2 ft)
IV
2.650 m (8.7 ft)
V
1.900 m (6.2 ft)
VI
1.900 m (6.2 ft)
There are no separate lifting capacity tables
for this type. The lifting capacities for the Right
greater than left type are enabled in a corre-
spondingly mirrored slewing range;
capacities and slewing ranges for outrigger spans
without separate lifting capacity tables , p. 11 - 28.
3 302 690 en
FR / RR FL / RL
3.125 m (10.3 ft)
2.650 m (8.7 ft)
1.900 m (6.2 ft)
2.650 m (8.7 ft)
1.900 m (6.2 ft)
1.900 m (6.2 ft)
FR / RR FL / RL
3.600 m (11.8 ft)
3.600 m (11.8 ft)
3.600 m (11.8 ft)
3.125 m (10.3 ft)
3.125 m (10.3 ft)
2.650 m (8.7 ft)
Rigging work
à
Lifting
s
12 - 35
