1.5 Technical data
1.5.4
Spare wheel
Outrigger
1 - 10

Dimensions and weights of removable parts

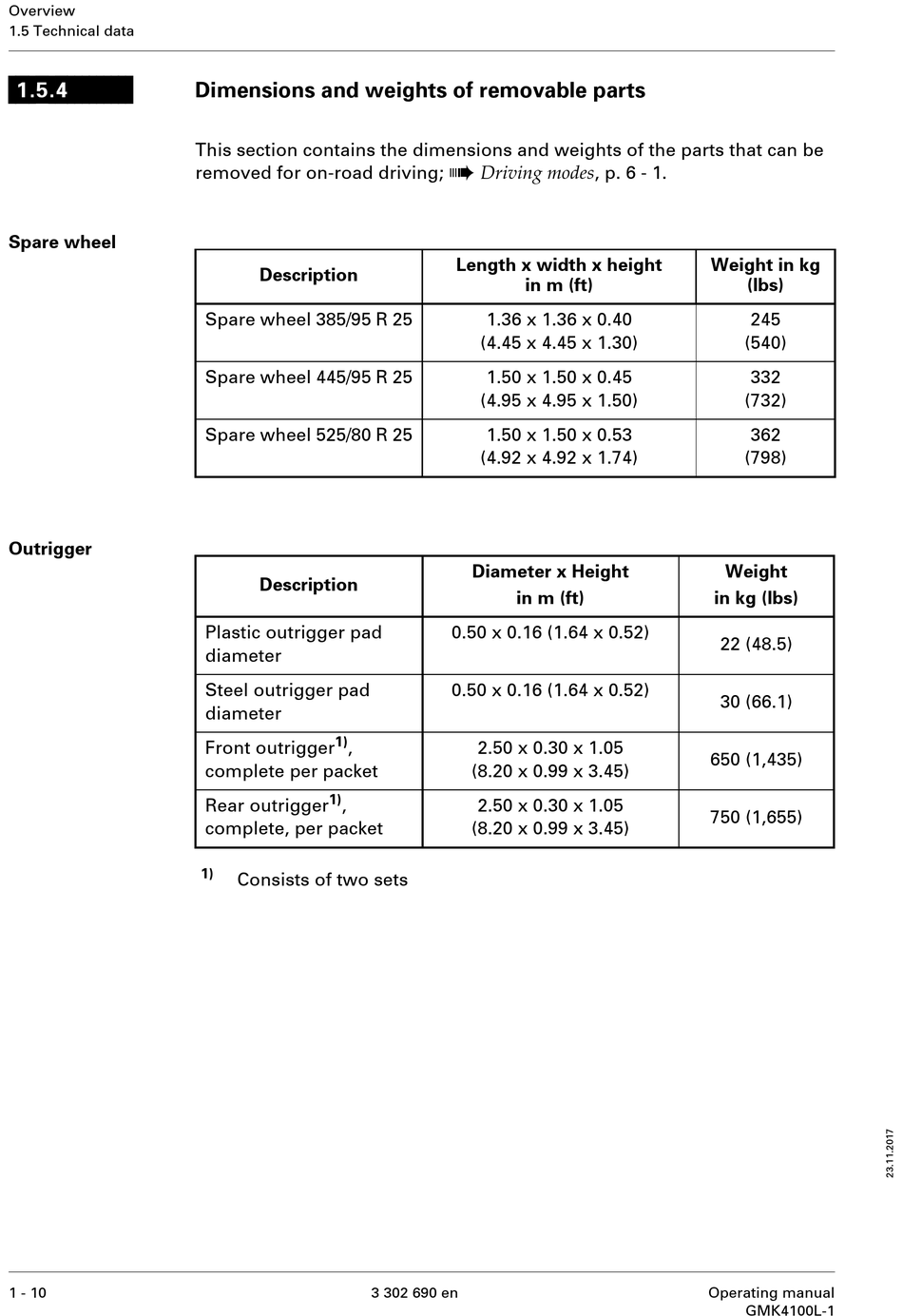

This section contains the dimensions and weights of the parts that can be
removed for on-road driving;
Description
Spare wheel 385/95 R 25
Spare wheel 445/95 R 25
Spare wheel 525/80 R 25
Description
Plastic outrigger pad
diameter
Steel outrigger pad
diameter
1)
Front outrigger ,
complete per packet
1)
Rear outrigger ,
complete, per packet
1)
Consists of two sets
à
Driving modes , p. 6 - 1.
Length x width x height
in m (ft)
1.36 x 1.36 x 0.40
(4.45 x 4.45 x 1.30)
1.50 x 1.50 x 0.45
(4.95 x 4.95 x 1.50)
1.50 x 1.50 x 0.53
(4.92 x 4.92 x 1.74)
Diameter x Height
in m (ft)
0.50 x 0.16 (1.64 x 0.52)
0.50 x 0.16 (1.64 x 0.52)
2.50 x 0.30 x 1.05
(8.20 x 0.99 x 3.45)
2.50 x 0.30 x 1.05
(8.20 x 0.99 x 3.45)
3 302 690 en
Weight in kg
(lbs)
245
(540)
332
(732)
362
(798)
Weight
in kg (lbs)
22 (48.5)
30 (66.1)
650 (1,435)
750 (1,655)
