Operating elements for crane operation

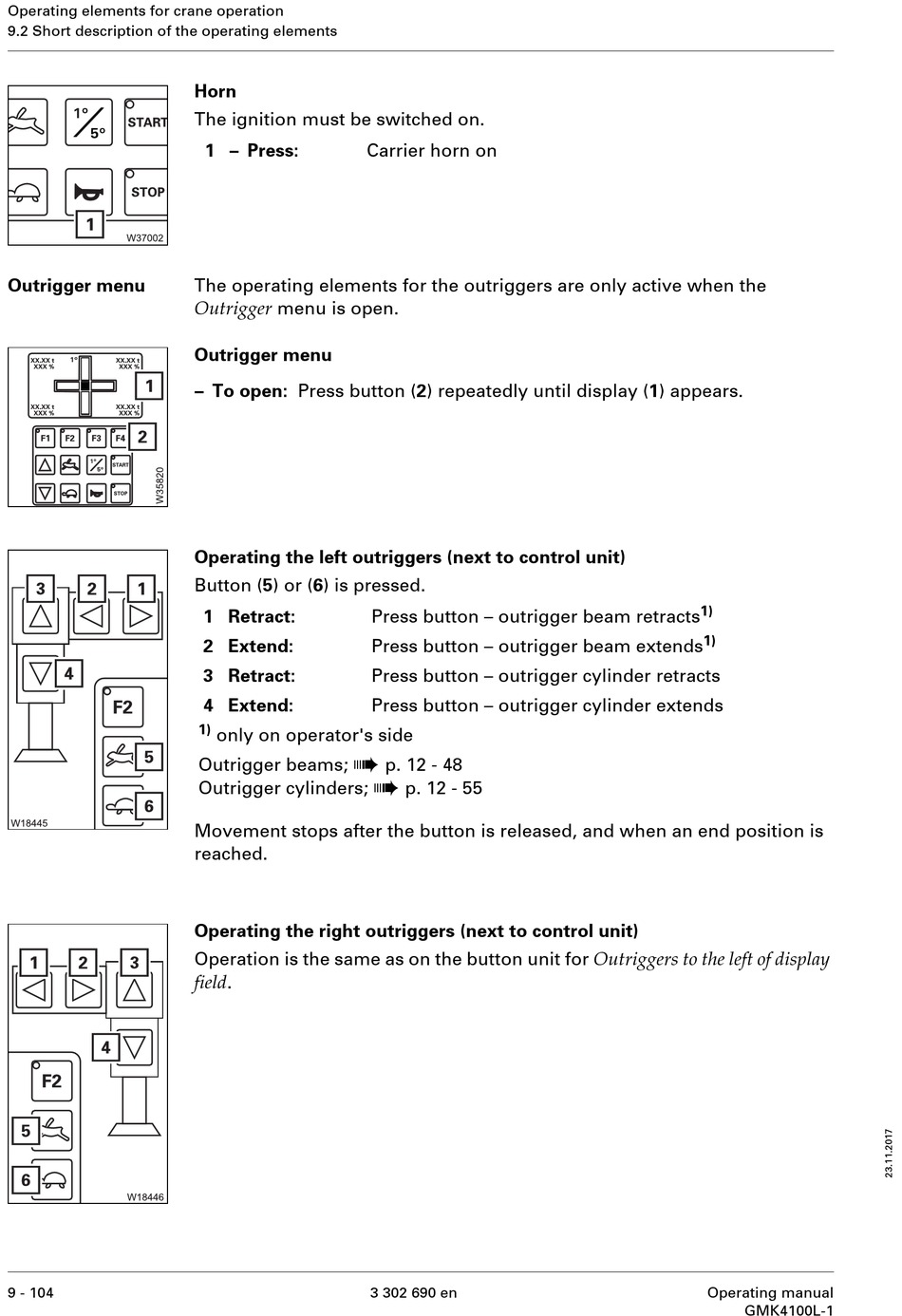

9.2 Short description of the operating elements
Outrigger menu
9 - 104
Horn
The ignition must be switched on.
1 – Press:
The operating elements for the outriggers are only active when the
Outrigger menu is open.
Outrigger menu
– To open: Press button (2) repeatedly until display (1) appears.
Operating the left outriggers (next to control unit)
Button (5) or (6) is pressed.
1 Retract:
2 Extend:
3 Retract:
4 Extend:
1)
only on operator's side
à
Outrigger beams;
Outrigger cylinders;
Movement stops after the button is released, and when an end position is
reached.
Operating the right outriggers (next to control unit)
Operation is the same as on the button unit for Outriggers to the left of display
field .
Carrier horn on
Press button – outrigger beam retracts
Press button – outrigger beam extends
Press button – outrigger cylinder retracts
Press button – outrigger cylinder extends
p. 12 - 48
à
p. 12 - 55
3 302 690 en
1)
1)
Operating manual
GMK4100L-1
