Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
12.7.3
12 - 34

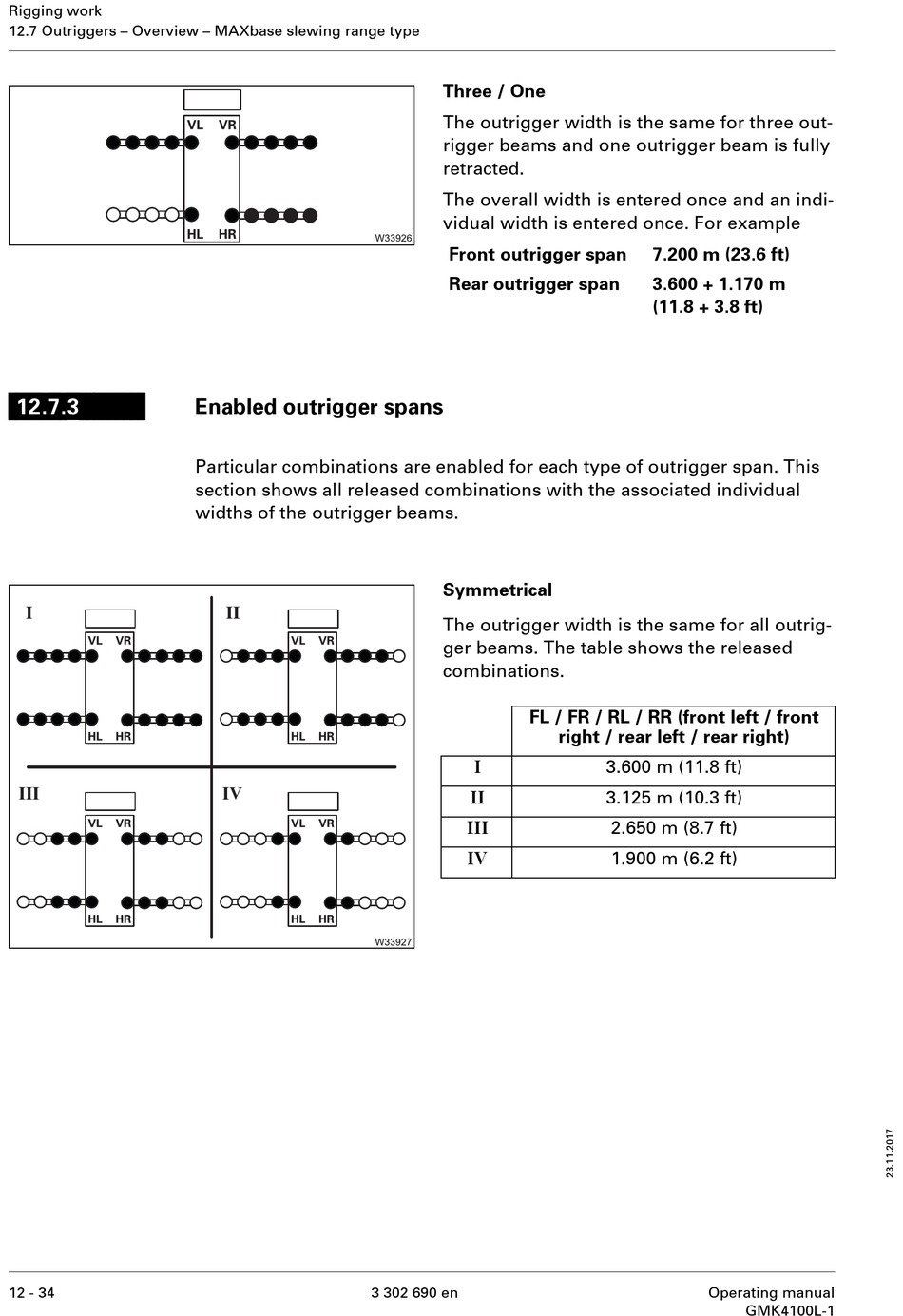

Enabled outrigger spans

Particular combinations are enabled for each type of outrigger span. This
section shows all released combinations with the associated individual
widths of the outrigger beams.
Three / One
The outrigger width is the same for three out-
rigger beams and one outrigger beam is fully
retracted.
The overall width is entered once and an indi-
vidual width is entered once. For example
Front outrigger span
Rear outrigger span
Symmetrical
The outrigger width is the same for all outrig-
ger beams. The table shows the released
combinations.
FL / FR / RL / RR (front left / front
I
II
III
IV
3 302 690 en
7.200 m (23.6 ft)
3.600 + 1.170 m
(11.8 + 3.8 ft)
right / rear left / rear right)
3.600 m (11.8 ft)
3.125 m (10.3 ft)
2.650 m (8.7 ft)
1.900 m (6.2 ft)
