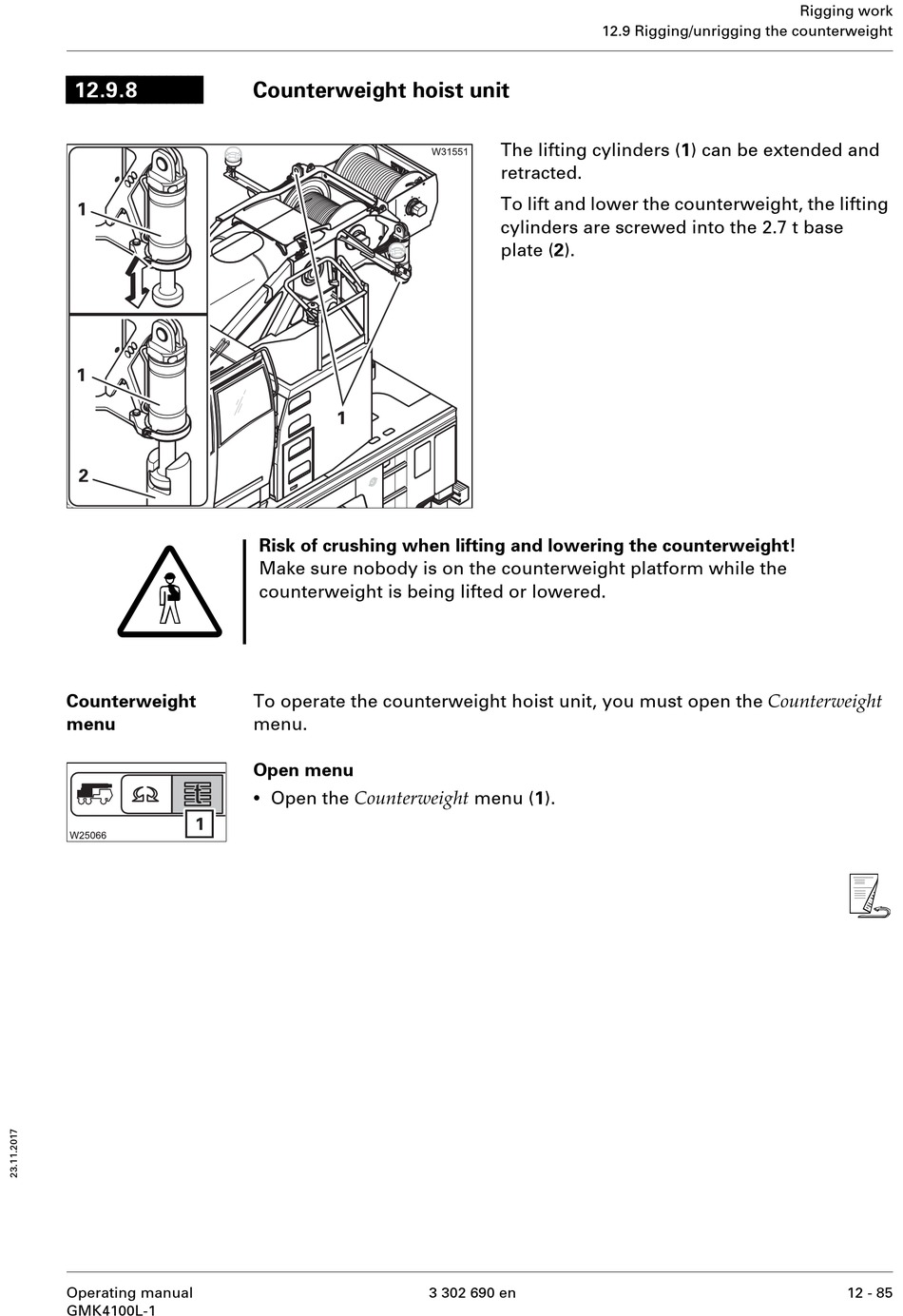

Counterweight hoist unit

Risk of crushing when lifting and lowering the counterweight!
Make sure nobody is on the counterweight platform while the
counterweight is being lifted or lowered.
To operate the counterweight hoist unit, you must open the Counterweight
menu.
Open menu
•
Open the Counterweight menu (1).
The lifting cylinders (1) can be extended and
retracted.
To lift and lower the counterweight, the lifting
cylinders are screwed into the 2.7 t base
plate (2).
