6.5 Installing/removing the outrigger beams
6.5.2
H
6 - 32

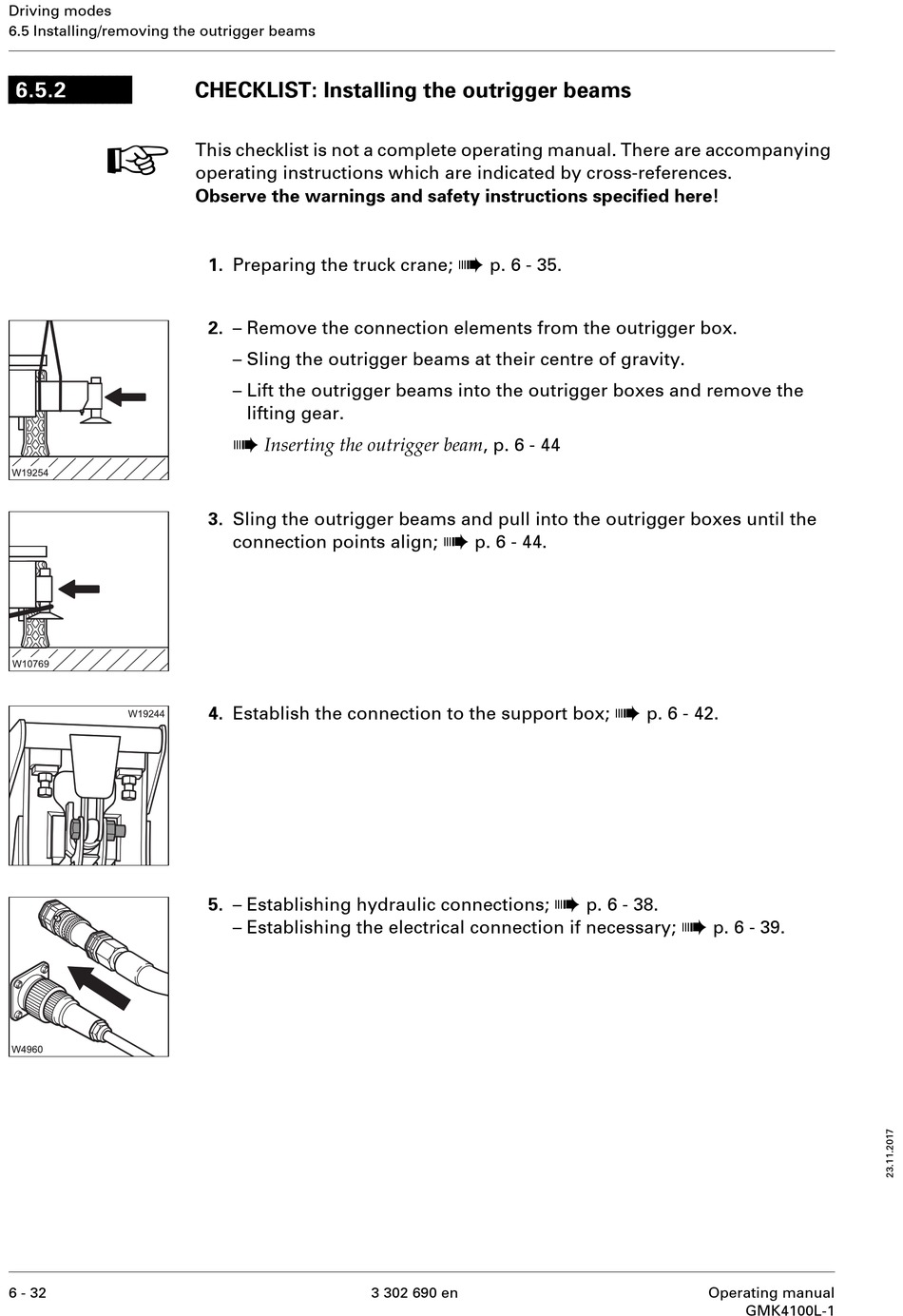

CHECKLIST: Installing the outrigger beams

This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. Preparing the truck crane;
2. – Remove the connection elements from the outrigger box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the
lifting gear.
à
Inserting the outrigger beam , p. 6 - 44
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
4. Establish the connection to the support box;
5. – Establishing hydraulic connections;
– Establishing the electrical connection if necessary;
à
p. 6 - 35.
à
p. 6 - 44.
3 302 690 en
à
p. 6 - 42.
à
p. 6 - 38.
à
p. 6 - 39.
Operating manual
GMK4100L-1
