H
Additional pages GMK

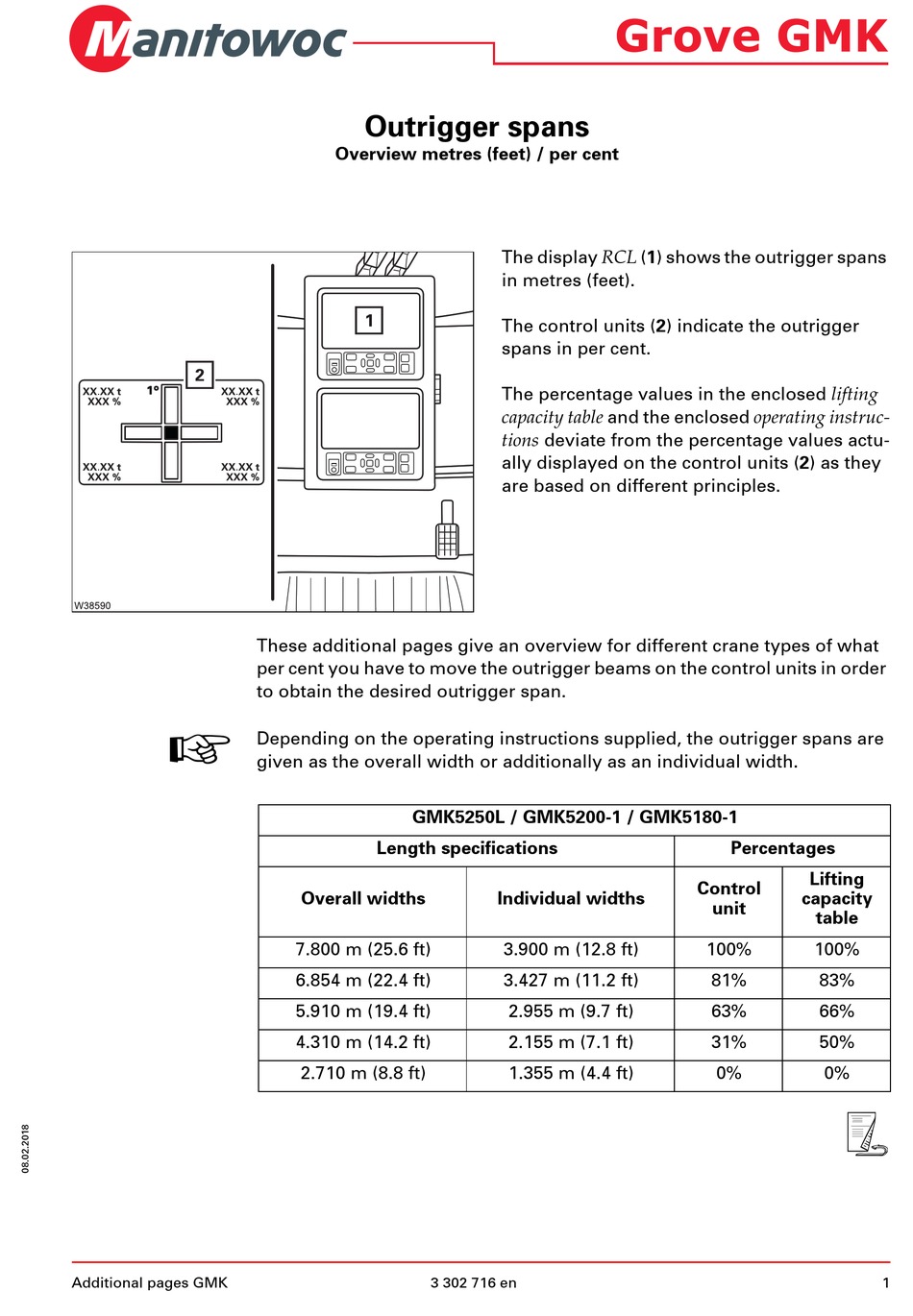

Outrigger spans
Overview metres (feet) / per cent
These additional pages give an overview for different crane types of what
per cent you have to move the outrigger beams on the control units in order
to obtain the desired outrigger span.
Depending on the operating instructions supplied, the outrigger spans are
given as the overall width or additionally as an individual width.
GMK5250L / GMK5200-1 / GMK5180-1
Length specifications
Overall widths
7.800 m (25.6 ft)
6.854 m (22.4 ft)
5.910 m (19.4 ft)
4.310 m (14.2 ft)
2.710 m (8.8 ft)
The display RCL (1) shows the outrigger spans
in metres (feet).
The control units (2) indicate the outrigger
spans in per cent.
The percentage values in the enclosed lifting
capacity table and the enclosed operating instruc-
tions deviate from the percentage values actu-
ally displayed on the control units (2) as they
are based on different principles.
Individual widths
3.900 m (12.8 ft)
3.427 m (11.2 ft)
2.955 m (9.7 ft)
2.155 m (7.1 ft)
1.355 m (4.4 ft)
3 302 716 en
Percentages
Lifting
Control
capacity
unit
table
100% 100%
81% 83%
63% 66%
31% 50%
0% 0%
