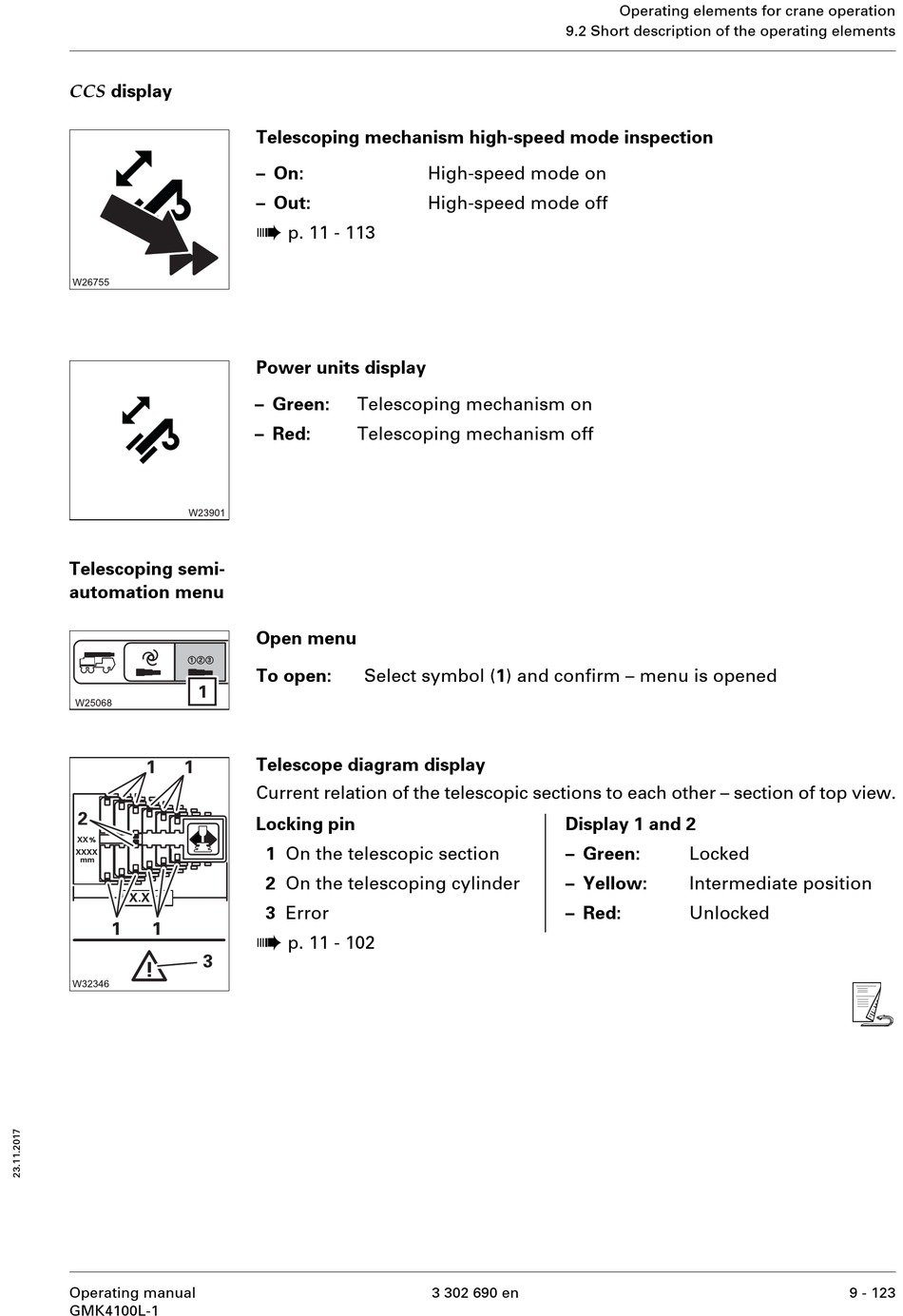

Manitowoc Grove GMK4100L-1 Operating Manual page 533

CCS display
Telescoping semi-
automation menu
Operating manual
GMK4100L-1
Telescoping mechanism high-speed mode inspection
– On:
– Out:
à
p. 11 - 113
Power units display
– Green: Telescoping mechanism on
– Red: Telescoping mechanism off
Open menu
To open: Select symbol (1) and confirm – menu is opened
Telescope diagram display
Current relation of the telescopic sections to each other – section of top view.
Locking pin
1 On the telescopic section
2 On the telescoping cylinder
3 Error
à
p. 11 - 102
9.2 Short description of the operating elements
High-speed mode on
High-speed mode off
Display 1 and 2
– Green:
– Yellow:
– Red:
3 302 690 en
Operating elements for crane operation
Locked
Intermediate position
Unlocked
s
9 - 123
