Rigging work
12.9 Rigging/unrigging the counterweight
12.9.4
G
12 - 74

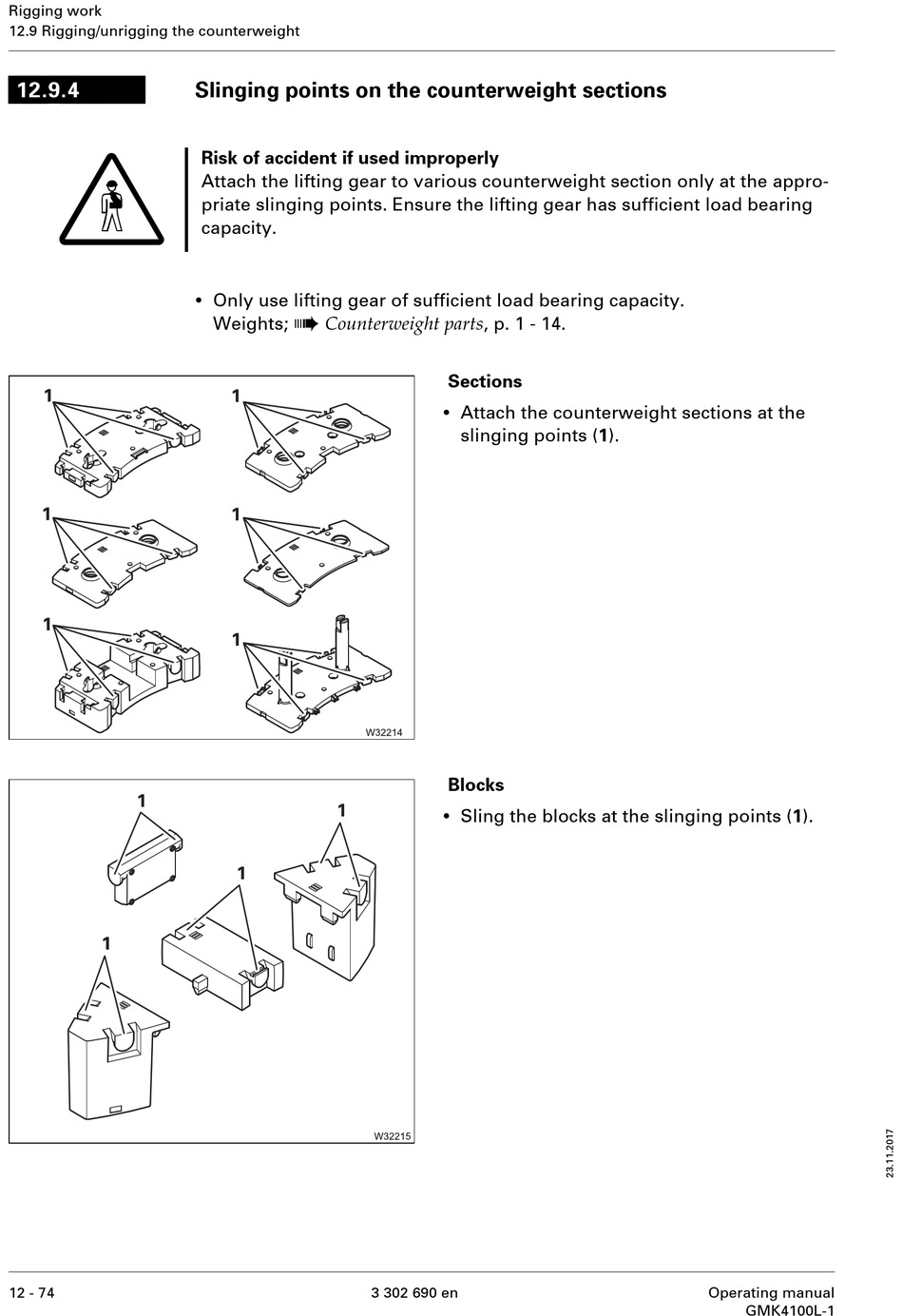

Slinging points on the counterweight sections

Risk of accident if used improperly
Attach the lifting gear to various counterweight section only at the appro-
priate slinging points. Ensure the lifting gear has sufficient load bearing
capacity.
•
Only use lifting gear of sufficient load bearing capacity.
à
Weights; Counterweight parts , p. 1 - 14.
Sections
•
Attach the counterweight sections at the
slinging points (1).
Blocks
•
Sling the blocks at the slinging points (1).
3 302 690 en Operating manual
GMK4100L-1
