12.7
12.7.1
Operating manual
GMK4100L-1

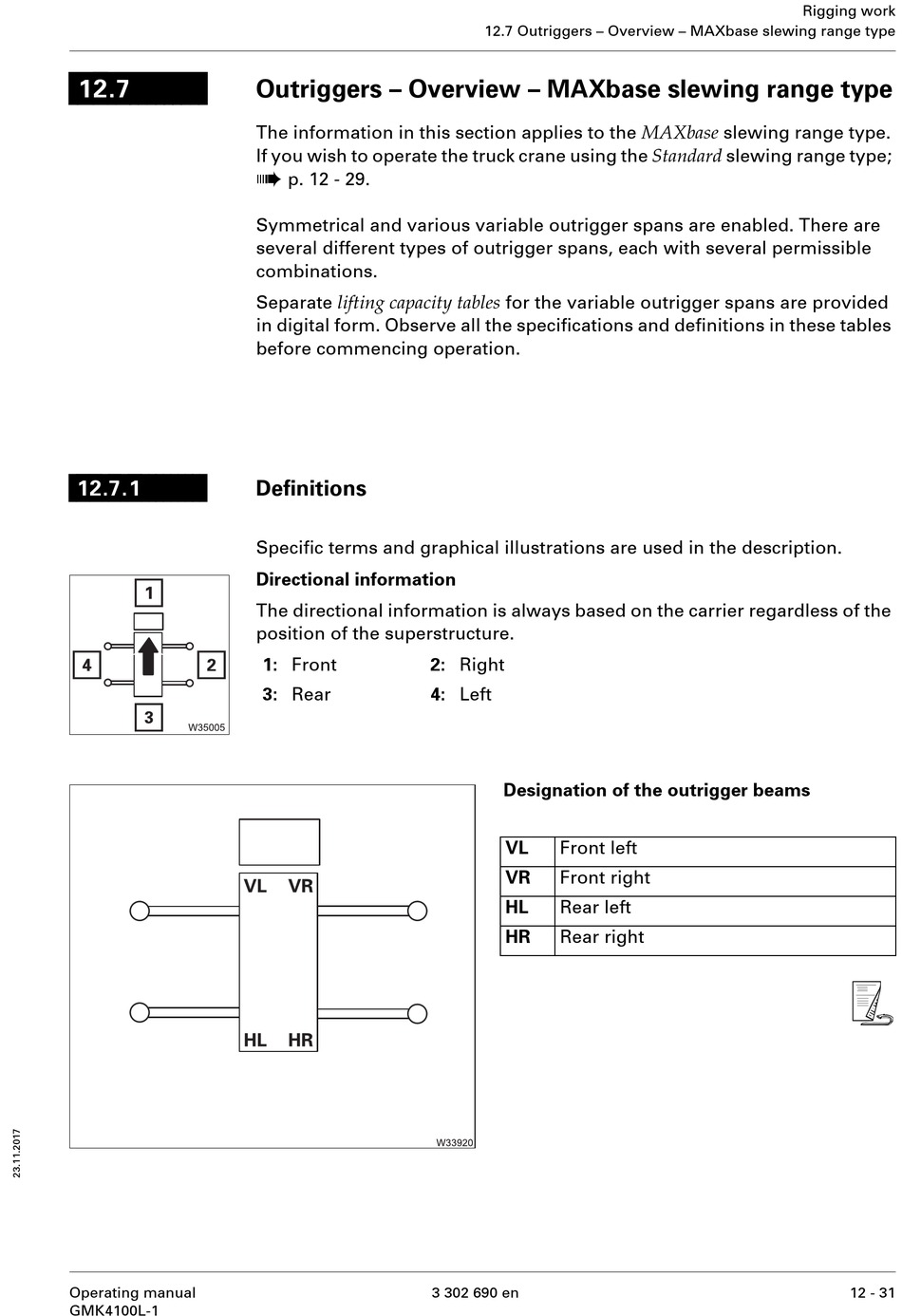

Outriggers – Overview – MAXbase slewing range type
The information in this section applies to the MAXbase slewing range type.
If you wish to operate the truck crane using the Standard slewing range type;
à
p. 12 - 29.
Symmetrical and various variable outrigger spans are enabled. There are
several different types of outrigger spans, each with several permissible
combinations.
Separate lifting capacity tables for the variable outrigger spans are provided
in digital form. Observe all the specifications and definitions in these tables
before commencing operation.

Definitions

Specific terms and graphical illustrations are used in the description.
Directional information
The directional information is always based on the carrier regardless of the
position of the superstructure.
1: Front
3: Rear
12.7 Outriggers – Overview – MAXbase slewing range type
2: Right
4: Left
Designation of the outrigger beams
VL Front left
VR Front right
HL Rear left
HR Rear right
3 302 690 en
Rigging work
s
12 - 31
