Operating elements for crane operation
9.2 Short description of the operating elements
9.2.26
Window
Rear window
9 - 154

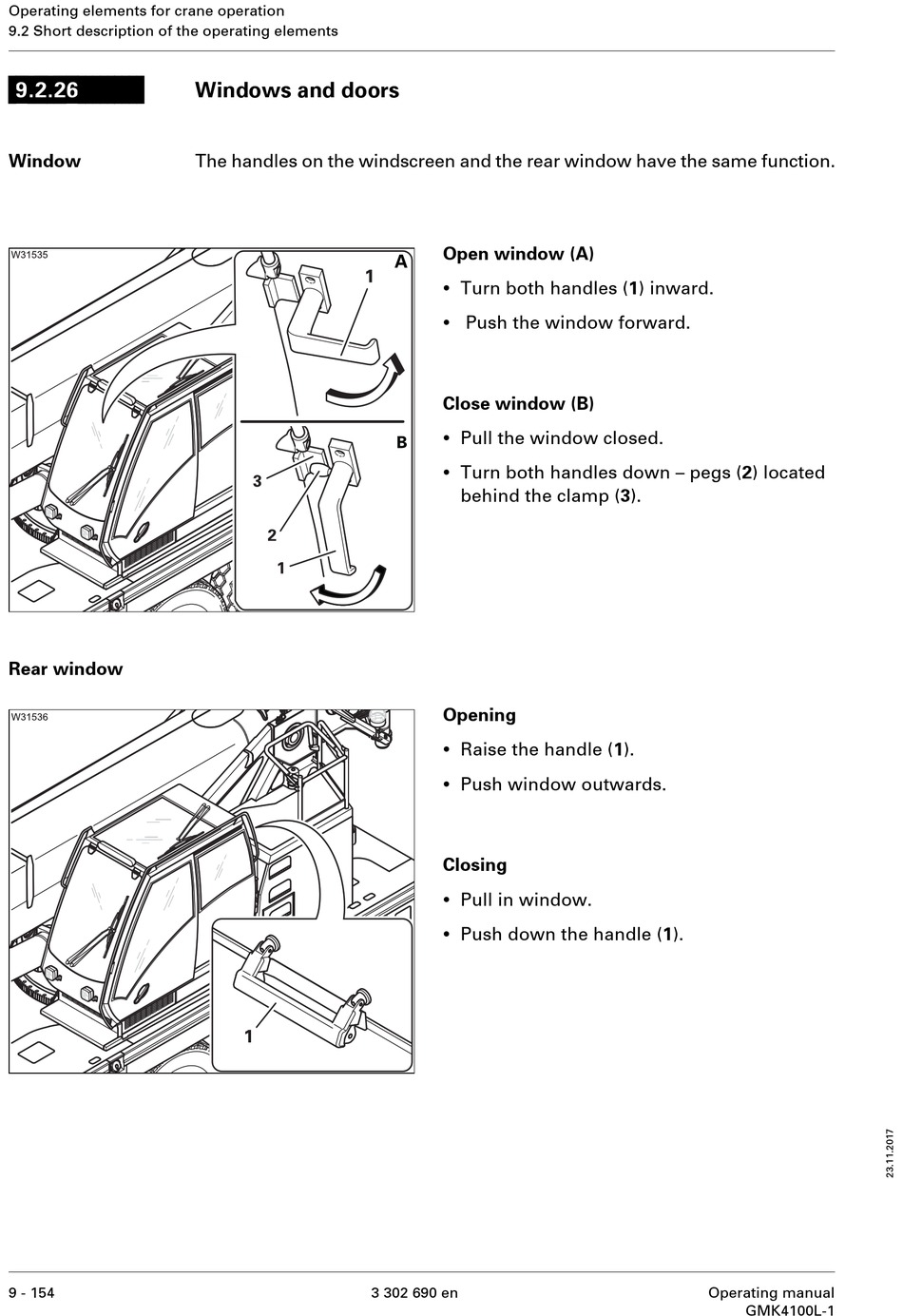

Windows and doors

The handles on the windscreen and the rear window have the same function.
Open window (A)
•
Turn both handles (1) inward.
•
Push the window forward.
Close window (B)
•
Pull the window closed.
•
Turn both handles down – pegs (2) located
behind the clamp (3).
Opening
•
Raise the handle (1).
•
Push window outwards.
Closing
•
Pull in window.
•
Push down the handle (1).
3 302 690 en Operating manual
GMK4100L-1
