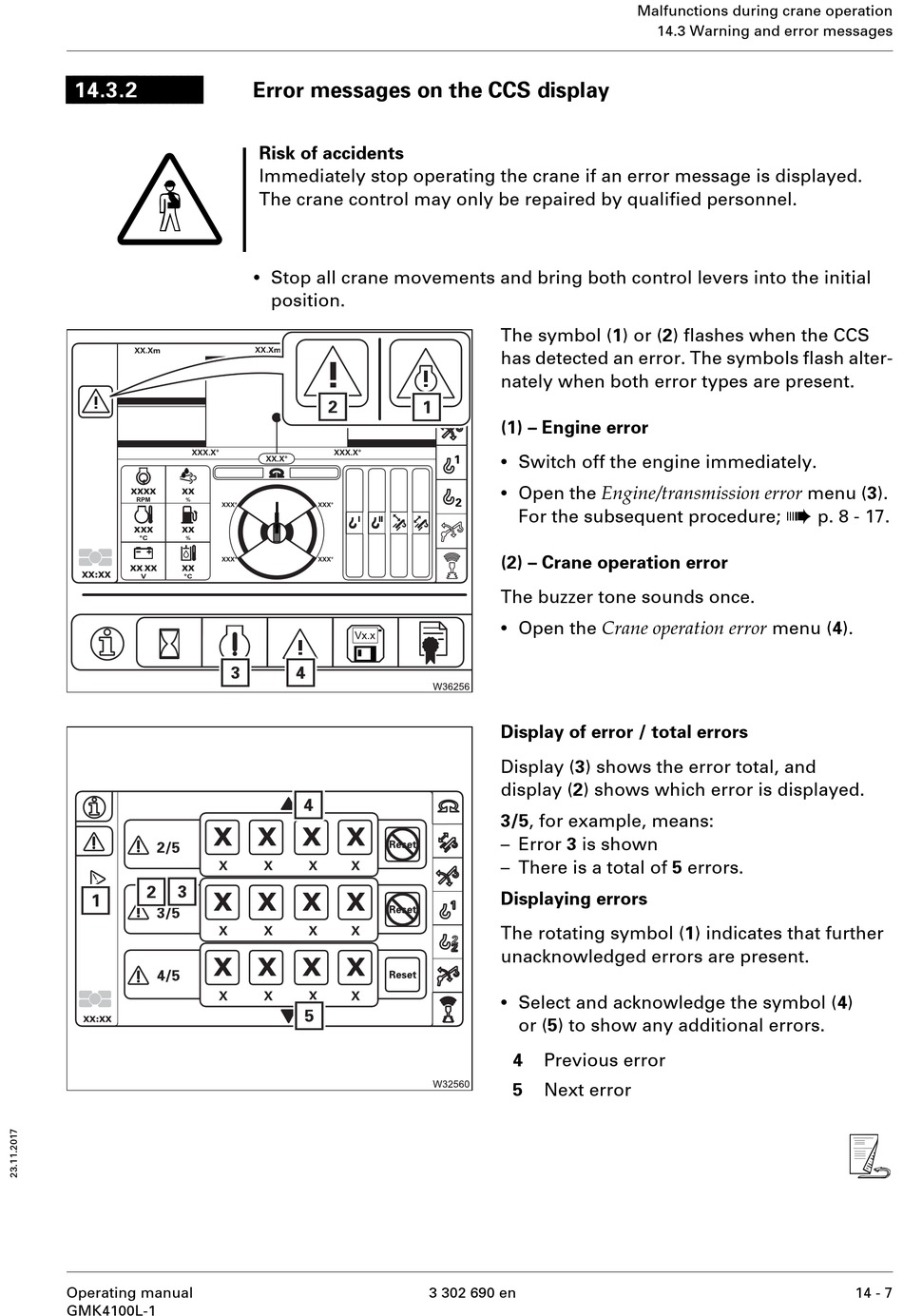

Error messages on the CCS display

Risk of accidents
Immediately stop operating the crane if an error message is displayed.
The crane control may only be repaired by qualified personnel.
•
Stop all crane movements and bring both control levers into the initial
position.
The symbol (1) or (2) flashes when the CCS
has detected an error. The symbols flash alter-
nately when both error types are present.
(1) – Engine error
•
Switch off the engine immediately.
•
Open the Engine/transmission error menu (3).
For the subsequent procedure;
(2) – Crane operation error
The buzzer tone sounds once.
•
Open the Crane operation error menu (4).
Display of error / total errors
Display (3) shows the error total, and
display (2) shows which error is displayed.
3/5, for example, means:
– Error 3 is shown
– There is a total of 5 errors.
Displaying errors
The rotating symbol (1) indicates that further
unacknowledged errors are present.
•
Select and acknowledge the symbol (4)
or (5) to show any additional errors.
4 Previous error
5 Next error
3 302 690 en
Malfunctions during crane operation
14.3 Warning and error messages
à
p. 8 - 17.
