Transfer Case; General Inspection; Checking The Oil Level - Manitowoc Grove GMK 5250L Maintenance Manual

7.7
Variants
7.7.1
7.7.2
Spare parts and
tools
Prerequisites
Maintenance manual
GMK5250L

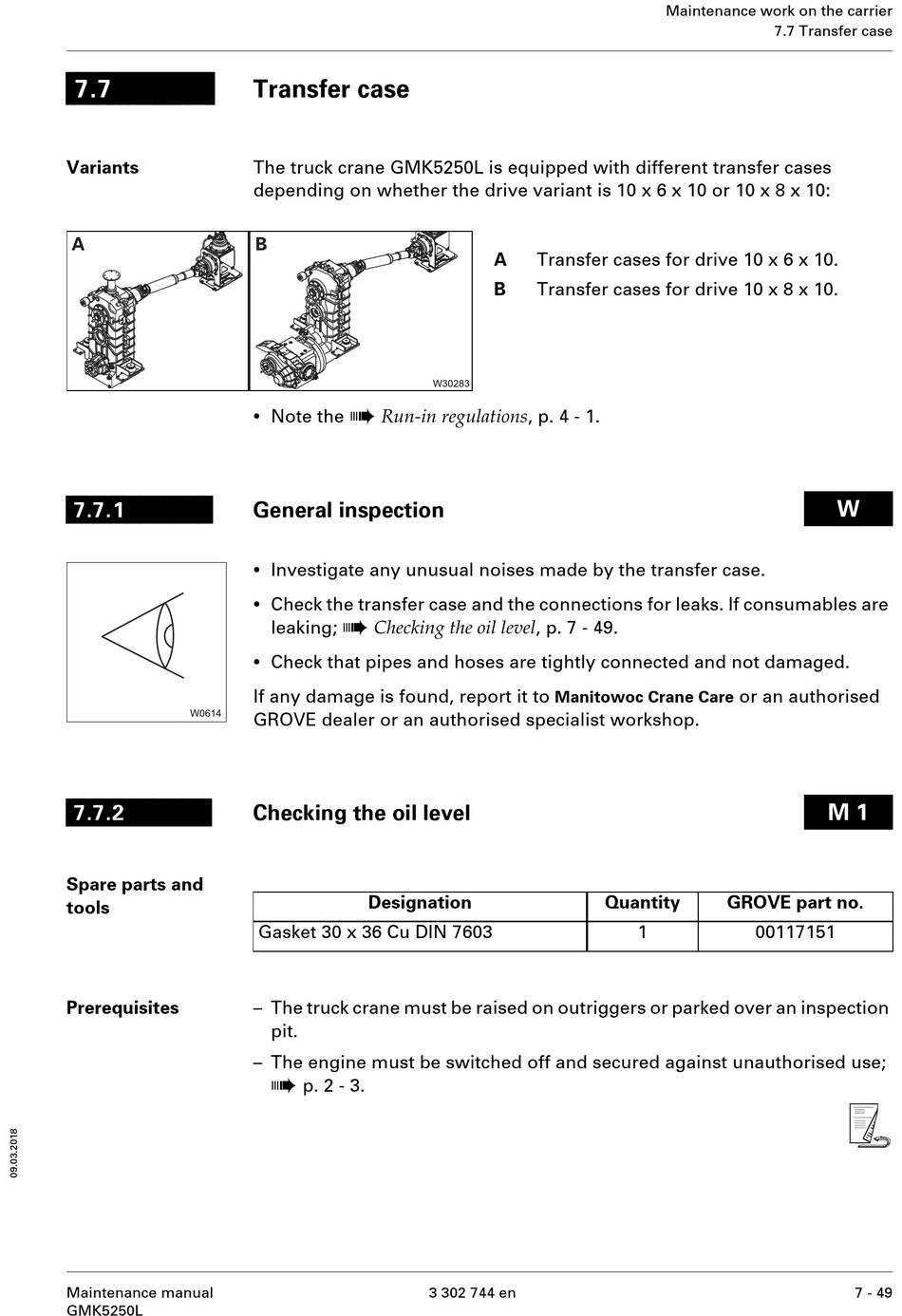

Transfer case

The truck crane GMK5250L is equipped with different transfer cases
depending on whether the drive variant is 10 x 6 x 10 or 10 x 8 x 10:
à
•
Run-in regulations , p. 4 - 1.
Note the

General inspection

•
Investigate any unusual noises made by the transfer case.
•
Check the transfer case and the connections for leaks. If consumables are
à
leaking; Checking the oil level , p. 7 - 49.
•
Check that pipes and hoses are tightly connected and not damaged.
If any damage is found, report it to
GROVE dealer or an authorised specialist workshop.

Checking the oil level

Designation
Gasket 30 x 36 Cu DIN 7603
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
A Transfer cases for drive 10 x 6 x 10.
B Transfer cases for drive 10 x 8 x 10.
Manitowoc Crane Care
3 302 744 en
Maintenance work on the carrier
7.7 Transfer case
or an authorised
Quantity GROVE part no.
1 00117151
W
M 1
s
7 - 49
