Real and imaginary parts
•

Smith chart format

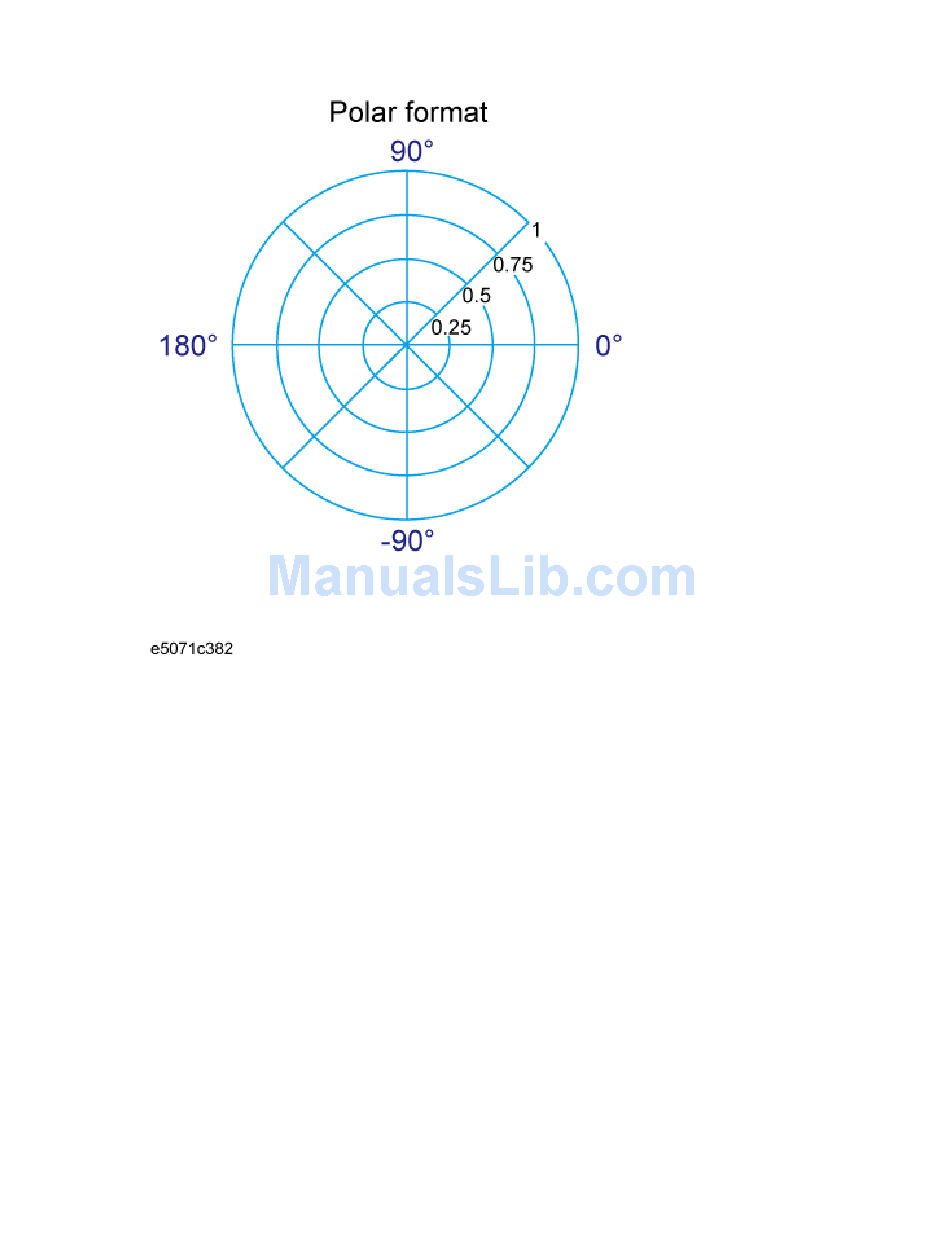

The Smith chart format is used to display impedances based on reflection
measurement data of the DUT. In this format, traces are plotted at the
same spots as in the polar format. The Smith chart format allows users to
select one of the following five data groups for displaying the marker
response values.
Linear magnitude and phase ( ° )
•
Log magnitude and phase ( ° )
•
Real and imaginary parts
•
Resistance (ohm), Reactance (ohm), and inductance (H) or
•
capacitance (F)
Conductance (S), susceptance (S), and capacitance (F) or inductance
•
(H)
