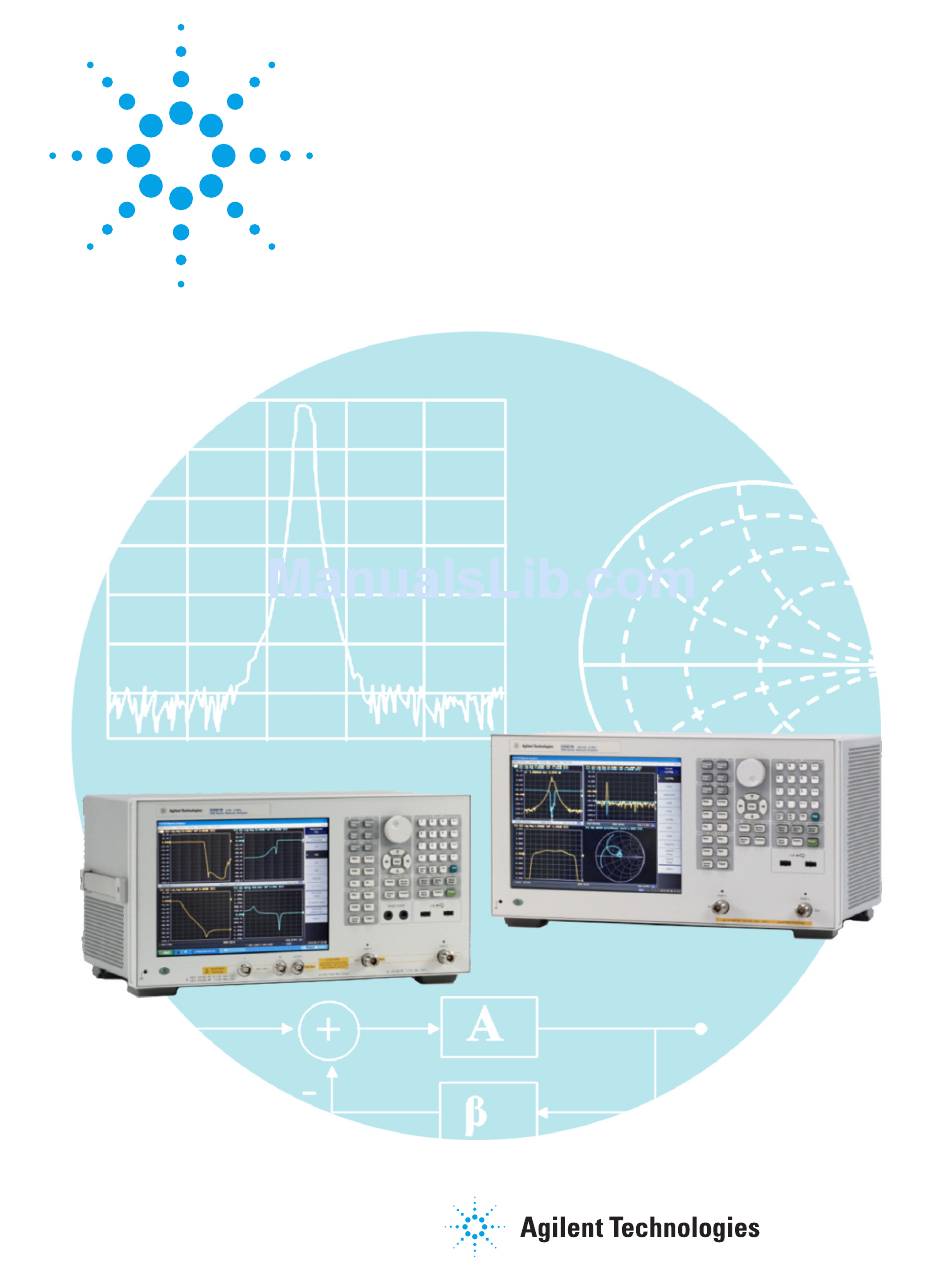

- Page 1 Agilent E5061B Network Analyzer Configuration Guide...
- Page 2 1. Keyboard and mouse are not furnished as standard. Refer to “Step 6. accessory option” for the selection of these items. 2. This option is not applicable for the E5061B RF NA options 1x5/2x5/1x7/2x7. 3. Refer to “Software upgrade” section for retrofit information on the above option.
- Page 3 1. Refer to “Hardware upgrade” section for retrofit information on the above options. 2. Option 020 is the only hard disk option for the E5061B. Must choose this option when ordering the E5061B. 3. Refer to “Software upgrade” section for retrofit information on the above option.
- Page 4 The express configurations deliver the same specifications and functionality as Agilent’s build-to-order instruments and also provide the same level of upgradeability, ensuring that they can evolve as your test needs change. For more detail, visit, www.agilent.com/find/express-e5061b Step 3. Choose hardware option (If not required, go to step 4) Option No.
- Page 5 This technique reduces operator errors and connector wear and abrasion. Mechanical calibration kits Electronic calibration (ECal) modules 1. ECal modules don’t cover the whole frequency range of the E5061B. Check whether the frequency range of each ECal module meets your measurement needs.
- Page 6 3.5 mm (m) and 3.5 mm (f) connectors, 50 kHz to 26.5 GHz N9399C 3.5 mm (m) and 3.5 mm (f) connectors, 700 kHz to 26.5 GHz 11667L 1. For transmission measurement with the gain-phase test port of the E5061B-3L5. Required for milliohm impedance measurements in the low frequency range.
- Page 7 - 10:1 and 100:1 divider 41800A-001 Adds a cable to connect the probe with an external power supply. This option is not necessary for the E5061B-3L5 since it is equipped with the probe power. 41800A-UK6 Commercial cal certificate with test data 85024A 300 kHz to 3 GHz active probe.
- Page 8 Non-Agilent test accessories (for 50 Ω system) Model No. Description Injection Transformer Picotest 1 Hz to 5 MHz (when terminated with 5 Ω), 10 Hz to 5 MHz (when terminated with J2100A Injection Transformer 50 Ω), Input: BNC(f), Output: Banana jacks, 600 V/CAT II isolation voltage. Optimized for loop gain measurements of DC-DC converters and switching power supplies.
- Page 9 Non-Agilent test accessories (for 50 Ω system, continued) Picotest J2100A Injection Transformer Picotest J2120A Line Injector Picotest J2111A Current Injector Picotest J2120A Line Injector (Banana-to-test clip leads connected to its banana jacks) North Hills Signal Processing 0017CC Pomona 3787-C-18 test lead (connected to gain-phase receiver ports) Pomona 2886 BNC breakout (connected to 0017CC) Picotest web page: http://www.picotest.com North Hills Signal Processing web page: http://www.northhills-sp.com/index.html...
- Page 10 Calibration kits (for 50 Ω system) Model No. Description Type-N Mechanical calibration kits 85032E 50 Ω economy calibration kit, DC to 6 GHz. Includes; - Type-N (m) fixed load - Type-N (m) combined open/short 85032F 50 Ω standard calibration kit, DC to 9 GHz. Includes; - Type-N (m) fixed load - Type-N (f) fixed load - Type-N (m) Open...
- Page 11 Calibration kits (for 50 Ω system, continued) Model No. Description 3.5mm Mechanical calibration kits 85033E 50 Ω standard calibration kit, DC to 9 GHz. Includes; - 3.5 mm (m) Load / 3.5 mm (m) Open / 3.5 mm (m) Short - 3.5 mm (f) Load / 3.5 mm (f) Open / 3.5 mm (f) Short - Torque wrench 85033E-100...
- Page 12 Calibration kits (for 50 Ω system, continued) Model No. Description 7-16 Mechanical calibration kits 85038A 50 Ω standard calibration kit, DC to 7.5 GHz. Includes; - 7-16 (m) Load / 7-16 (m) Open / 7-16 (m) Short - 7-16 (f) Load / 7-16 (f) Open / 7-16 (f) Short - Torque wrench - Open-end wrench 85038F...
- Page 13 Test accessories (for 75 Ω system) Model No. Description Test Port Cable 11857B 75 Ω type-N cable set, 61 cm (24 in). Includes; - Type-N (m) to type-N (m) cable - Type-N (m) to type-N (f) cable 11857F 75 Ω type-N to type-F cable set, 61 cm (24 in) 11857F-M0F Includes;...
- Page 14 Calibration kits (for 75 Ω system, continued) Model No. Description Type-F Mechanical calibration kits 85039B 75 Ω economy calibration kit, DC to 3 GHz 85039B-M0F Includes; - Type-F (m) Load / Type-F (m) Open / Type-F (m) Short - Type-F (f) Load / Type-F (f) Open / Type-F (f) Short - Type-F (m) to type-F (m) adapter - Type-F (f) to type-F (f) adapter - Type-F (f) to type-N (m) adapter...
- Page 15 Testmobile Scope Cart 1. For more detailed information about how to select impedance test accessories for the E5061B-3L5/005, refer to 5990-7033EN 2. For more detailed information about applicable DUT size of these test fixtures, refer to Accessories Selection Guide for Impedance Measurement (5965-4792E).
- Page 16 E5061BU-137 E5061BU-215 E5061BU-217 E5061BU-135+E5061BU-235 E5061BU-137+E5061BU-237 E5061BU-235 E5061BU-237 E5061BU-035 E5061BU-037 Test set upgrade (Installed by the Agilent service center) Upgrade kit No. Description Option No. Customer (Order with this No.) installable E5061BU Upgrade kit E5061BU-1E5 Add high stability time base E5061B-1E5...
- Page 17 E5061-60109 50 Ω resister set (Equivalent to E5061B-720) E5061B-720 Literature resources You can find detail information about the key features, application examples, and technical specification of the E5061B in the following document. Literature resources for the E5061B-3L5 Literature number Literature title...
- Page 18 United Kingdom 44 (0) 118 927 6201 For other unlisted countries: www.agilent.com/find/contactus Revised: January 6, 2012 Product specifications and descriptions in this document subject to change without notice. © Agilent Technologies, Inc. 2012 Published in USA, January 20, 2012 5990-4391EN...
