Changing The Driving Direction - Manitowoc Grove GMK6300L Operating Manual

Driving
5.2 Operating the transmission
5.2.8
5 - 34

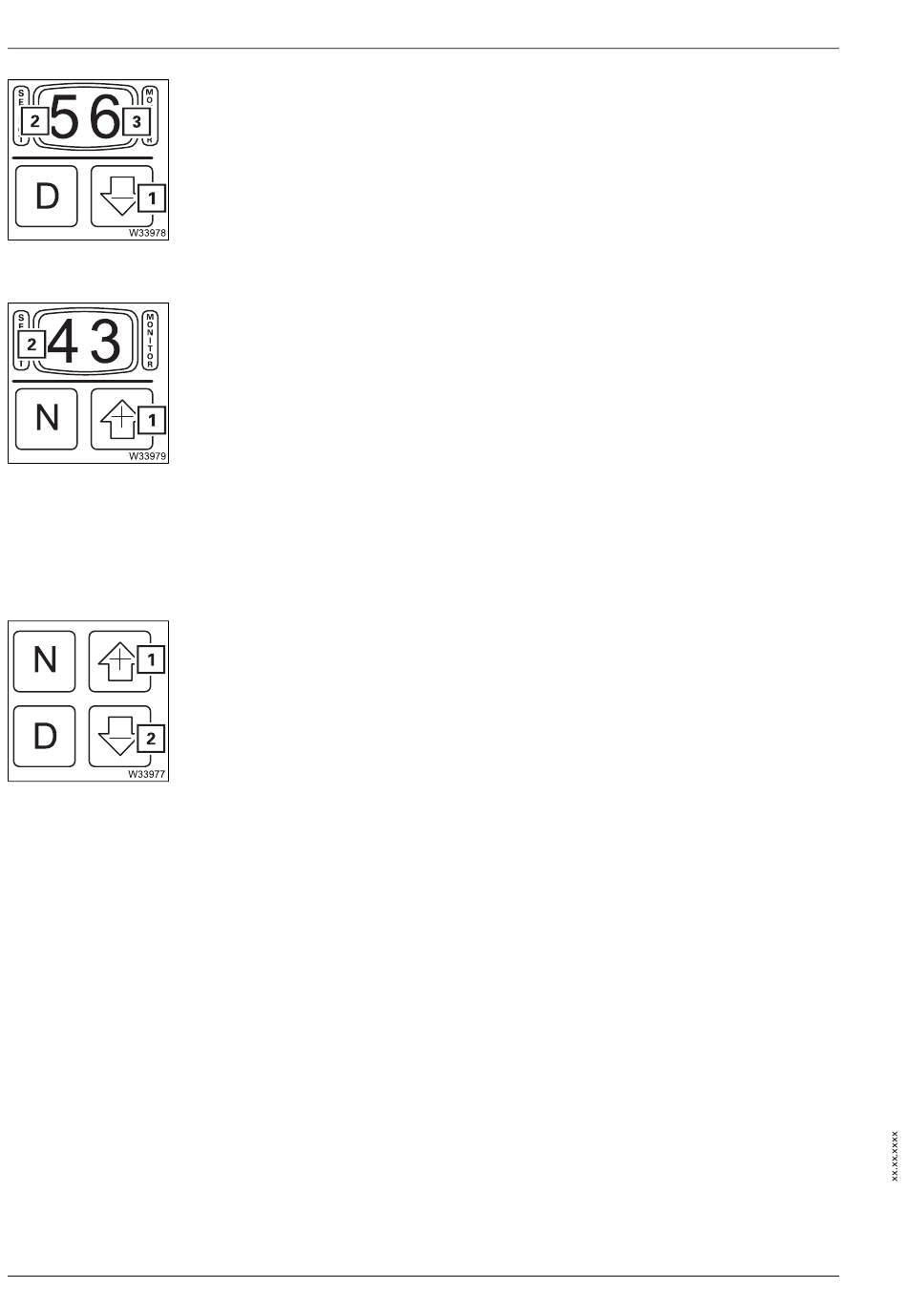

Manual downshifting
•
Select a gear that is smaller than the current gear (
gear (2) by using the button (1).
If it is permissible for the current driving mode, then transmission shifts
down. It may be necessary for you to slow down by braking until an engine
speed is reached that is permissible for downshifting.
Manual upshifting
The truck crane is being driven in the highest gear that is smaller than
gear 6.
•
Select a higher gear (2) by using the button (1).
If it is permissible for the current driving mode, then transmission shifts up.

Changing the driving direction

•
Stop the truck crane and leave the vehicle engine running at idling speed.
•
Select the opposite driving direction by using button (1) or (2).
•
Start moving.
3 112 xxx en
3
) as the highest
Operating Manual GMK6300L
