Operating elements for driving
3.2 Short description of the operating elements
3.2.15
Steering column
Instrument panel
3 - 60

Lighting/windscreen wipers/horn

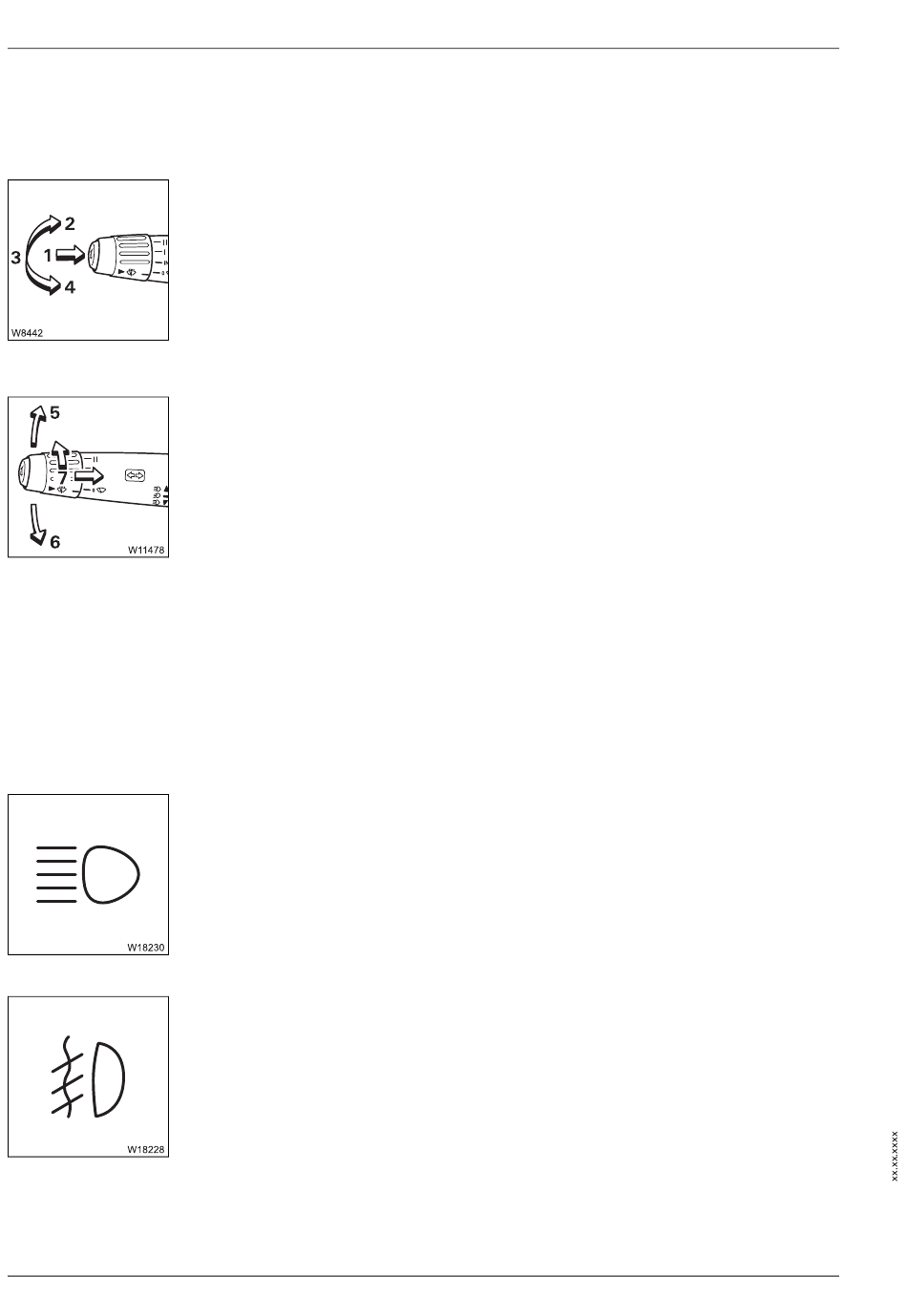

Multipurpose switch
Horn/headlight flasher/headlight – full beam
1 Horn:
2 Flash the headlights:
The parking light/headlight must be switched on:
3 Parking light/headlight:
4 Headlight – full-beam:
Turn signal indicator/wiper-washing system
5 Right turn signal indicator:
6 Left turn signal indicator:
7 Windscreen wiper/washing
system:
7 Windscreen wiper:
7 Adjusting the wiper stroke interval:
– Switch on intermittent
– Switch off after the first wipe (0)
– Wait for the required time (maximum 20 seconds)
– Switch on the interval – required time = pause between wipes
Headlight – full beam indicator lamp
– On:
– Off:
Fog light indicator lamp
– On:
– Off:
Press the button
Upwards
Middle position
Down – latches into place
Forwards
Backwards
Press
Turn – off (0),
intermittent, slow, fast
Headlight – full beam on
Headlight – full beam off
Fog light on
Fog light off
