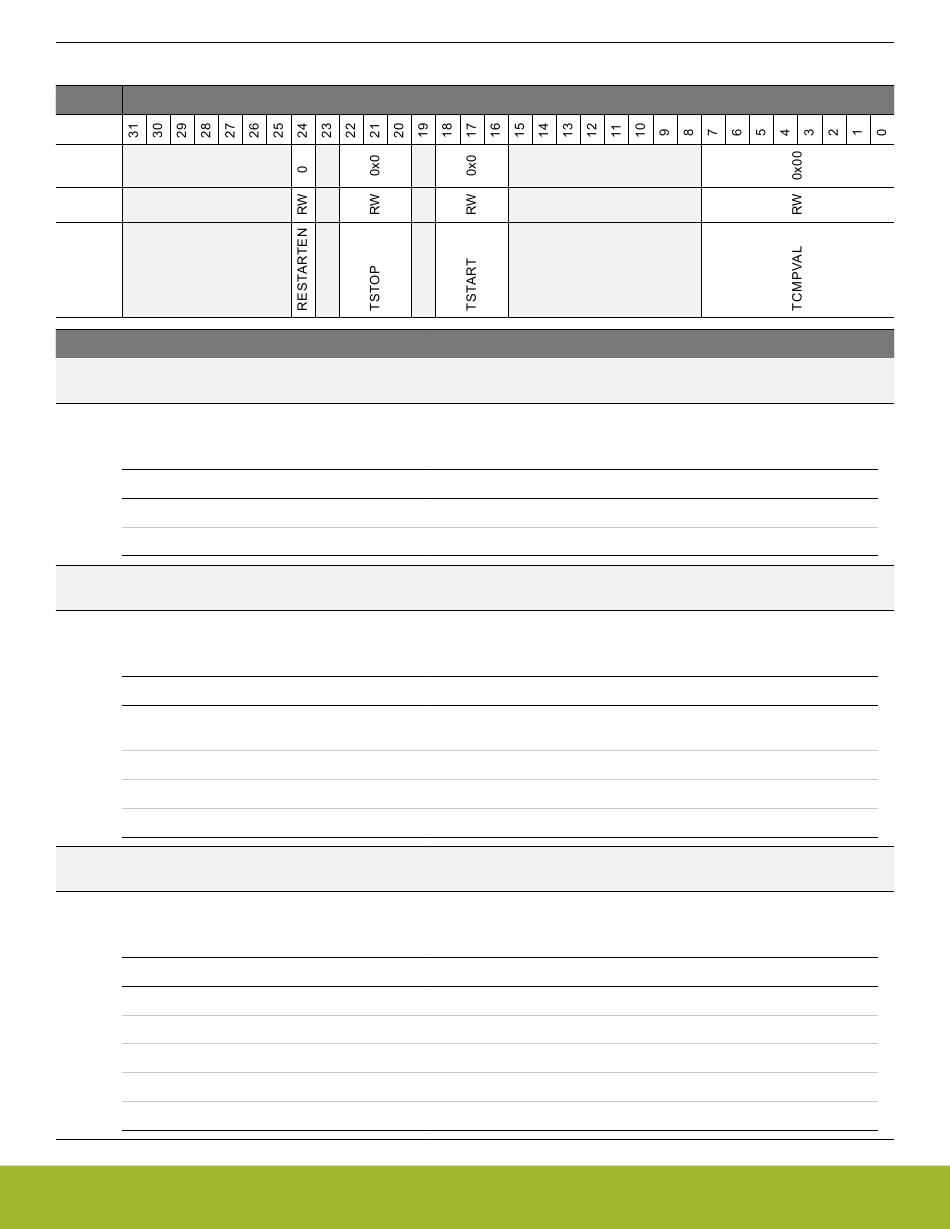

18.5.26 USARTn_TIMECMP0 - Used to Generate Interrupts and Various Delays

Offset
0x068
Reset
Access
Name
Bit Name
31:25 Reserved
24 RESTARTEN
Each TCMP0 event will reset and restart the timer
Value
0
1
23 Reserved
22:20 TSTOP
Select the source which disables comparator 0
Value
0
1
2
3
19 Reserved
18:16 TSTART
Source used to start comparator 0 and timer
Value
0
1
2
3
4
silabs.com | Building a more connected world.
USART - Universal Synchronous Asynchronous Receiver/Transmitter
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW Restart Timer on TCMP0
Description
Disable the timer restarting on TCMP0
Enable the timer restarting on TCMP0
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW Source Used to Disable Comparator 0
Mode Description
TCMP0 Comparator 0 is disabled when the counter equals TCMPVAL and trig-
gers a TCMP0 event
TXST Comparator 0 is disabled at the start of transmission
RXACT Comparator 0 is disabled on RX going going Active (default: low)
RXACTN Comparator 0 is disabled on RX going Inactive
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW Timer Start Source
Mode Description
DISABLE Comparator 0 is disabled
TXEOF Comparator 0 and timer are started at TX end of frame
TXC Comparator 0 and timer are started at TX Complete
RXACT Comparator 0 and timer are started at RX going Active (default: low)
RXEOF Comparator 0 and timer are started at RX end of frame
Bit Position
Reference Manual
1.2 Conven-
1.2 Conven-
1.2 Conven-
Rev. 1.1 | 599
