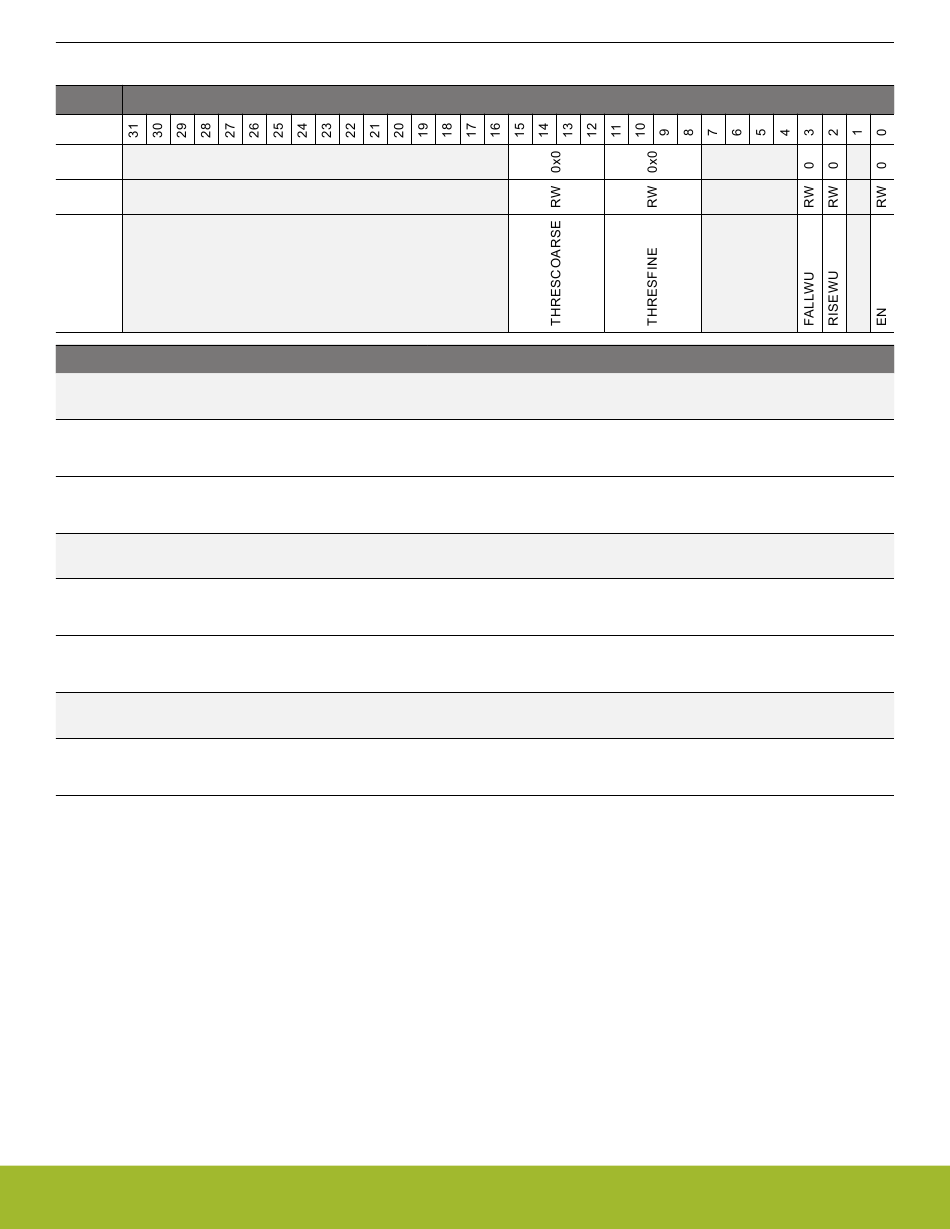

10.5.26 EMU_VMONALTAVDDCTRL - Alternate VMON AVDD Channel Control

Offset
0x094
Reset
Access
Name
Bit Name
31:16 Reserved
15:12 THRESCOARSE
Check VMON section for programming the threshold value. Reset with SYSEXTENDEDRESETn.
11:8 THRESFINE
Check VMON section for programming the threshold value. Reset with SYSEXTENDEDRESETn.
7:4 Reserved
3 FALLWU
When set, a wakeup from EM4H will take place upon a falling edge. Reset with SYSEXTENDEDRESETn.
2 RISEWU
When set, a wakeup from EM4H will take place upon a rising edge. Reset with SYSEXTENDEDRESETn.
1 Reserved
0 EN
Set this bit to enable the ALTAVDD VMON. Reset with SYSEXTENDEDRESETn.
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW Threshold Coarse Adjust
0x0 RW Threshold Fine Adjust
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW Fall Wakeup
0 RW Rise Wakeup
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW Enable
Bit Position
Reference Manual
EMU - Energy Management Unit
1.2 Conven-
1.2 Conven-
1.2 Conven-
Rev. 1.1 | 267
