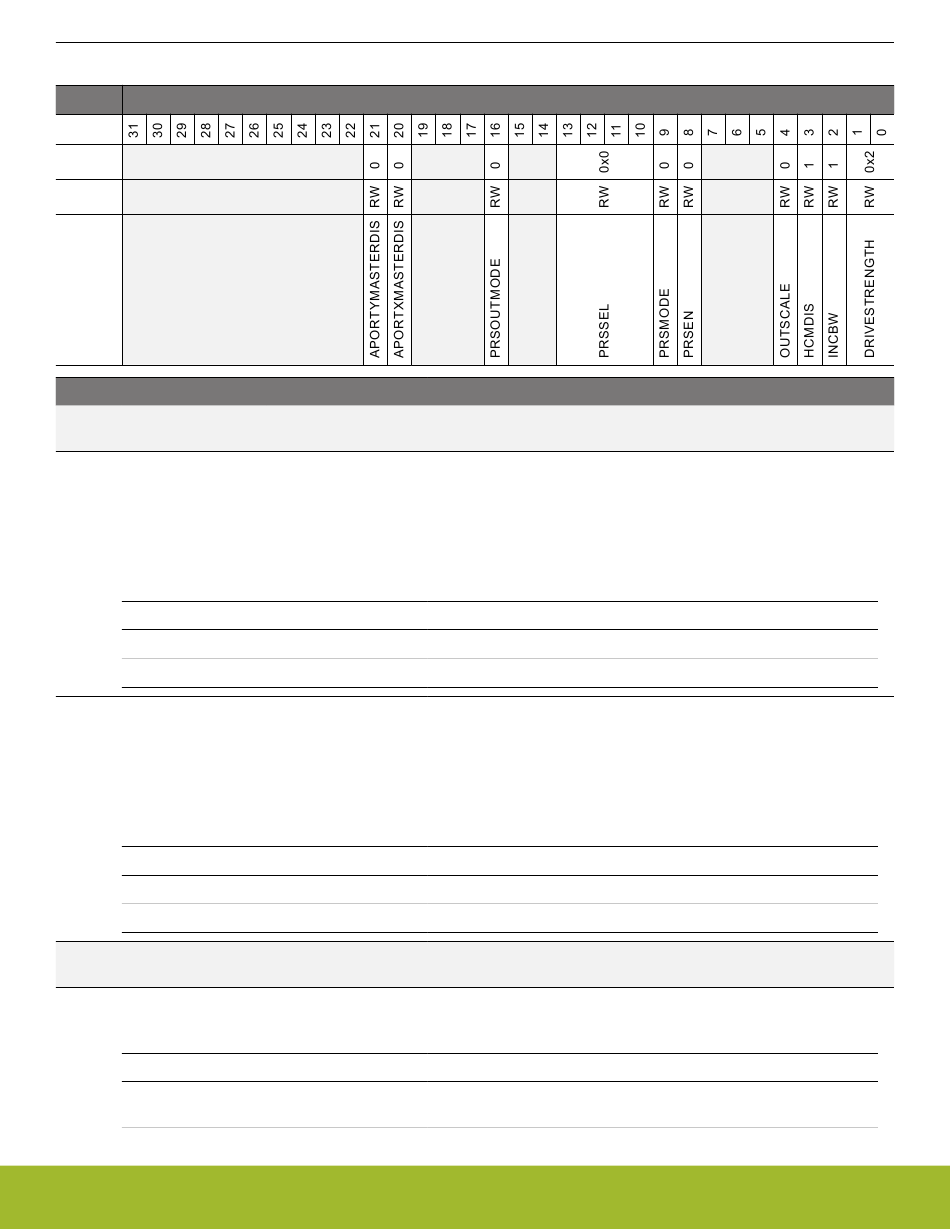

23.5.16 VDACn_OPAx_CTRL - Operational Amplifier Control Register

Offset
0x0A8
Reset
Access
Name
Bit Name
31:22 Reserved
21 APORTYMASTER-
DIS
Determines if the OPAx will request the APORT bus Y with POSSEL, NEGSEL or APORTOUTSEL. This bit allows multiple
APORT connected devices to monitor the same APORT bus simultaneously by allowing the OPAx to not master the selec-
ted bus. When 1, the determination is expected to be from another peripheral, and the OPAx only passively looks at the
bus. When 1, the selection of channel for a selected bus is ignored (the bus is not), and is whatever selection the external
device mastering the bus has configured for the APORT bus.
Value
0
1
20 APORTXMASTER-
DIS
Determines if the OPAx will request the APORT bus X with POSSEL , NEGSEL or APORTOUTSEL. This bit allows multiple
APORT connected devices to monitor the same APORT bus simultaneously by allowing the OPAx to not master the selec-
ted bus. When 1, the determination is expected to be from another peripheral, and the OPAx only passively looks at the
bus. When 1, the selection of channel for a selected bus is ignored (the bus is not), and is whatever selection the external
device mastering the bus has configured for the APORT bus.
Value
0
1
19:17 Reserved
16 PRSOUTMODE
Selects OPAx Output to PRS.
Value
0
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW APORT Bus Master Disable
Description
Bus mastering enabled
Bus mastering disabled
0 RW APORT Bus Master Disable
Description
Bus mastering enabled
Bus mastering disabled
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW OPAx PRS Output Select
Mode Description
WARM Warm status available on PRS. Warm status indicates that opamp is
warm and output is enabled.
Bit Position
Reference Manual
VDAC - Digital to Analog Converter
1.2 Conven-
1.2 Conven-
Rev. 1.1 | 786
