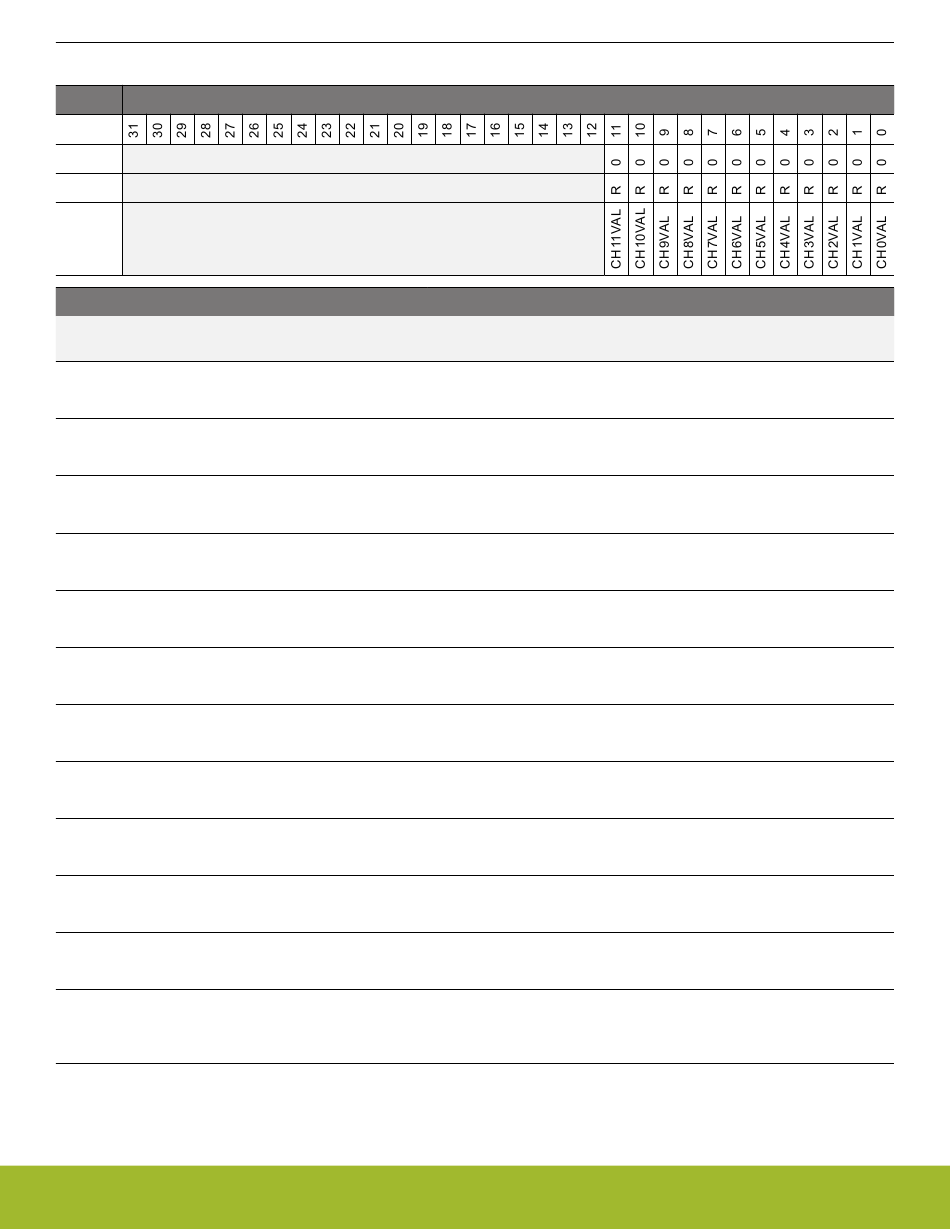

15.5.10 PRS_PEEK - PRS Channel Values

Offset
0x040
Reset
Access
Name
Bit Name
31:12 Reserved
11 CH11VAL
See bit 0.
10 CH10VAL
See bit 0.
9 CH9VAL
See bit 0.
8 CH8VAL
See bit 0.
7 CH7VAL
See bit 0.
6 CH6VAL
See bit 0.
5 CH5VAL
See bit 0.
4 CH4VAL
See bit 0.
3 CH3VAL
See bit 0.
2 CH2VAL
See bit 0.
1 CH1VAL
See bit 0.
0 CH0VAL
When ASYNC = 0, sample the current output value of channel 0. Any enabled edge detection will not be visible. This value
may be one or two clock delayed. When ASYNC = 1, no value is returned
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 R Channel 11 Current Value
0 R Channel 10 Current Value
0 R Channel 9 Current Value
0 R Channel 8 Current Value
0 R Channel 7 Current Value
0 R Channel 6 Current Value
0 R Channel 5 Current Value
0 R Channel 4 Current Value
0 R Channel 3 Current Value
0 R Channel 2 Current Value
0 R Channel 1 Current Value
0 R Channel 0 Current Value
Bit Position
Reference Manual
PRS - Peripheral Reflex System
1.2 Conven-
Rev. 1.1 | 439
