11.5 Register Description

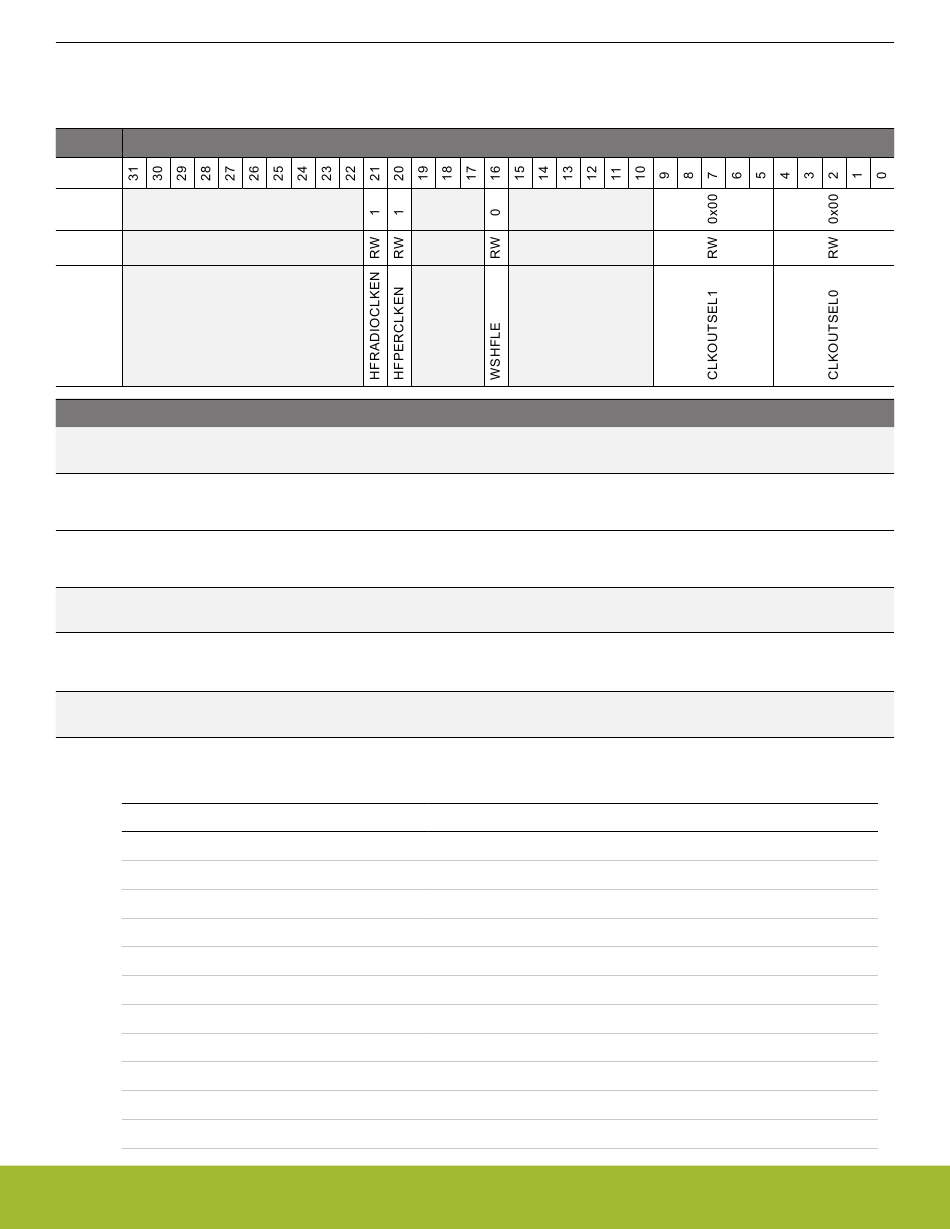

11.5.1 CMU_CTRL - CMU Control Register

Offset
0x000
Reset
Access
Name
Bit Name
31:22 Reserved
21 HFRADIOCLKEN
Set to enable the HFRADIOCLK.
20 HFPERCLKEN
Set to enable the HFPERCLK.
19:17 Reserved
16 WSHFLE
Set to allow access to LE peripherals when running HFBUSCLK
15:10 Reserved
9:5 CLKOUTSEL1
Controls the clock output 1 multiplexer. To actually output on the pin, set CLKOUT1PEN in CMU_ROUTE.
Value
0
1
2
3
6
7
9
10
11
12
13
