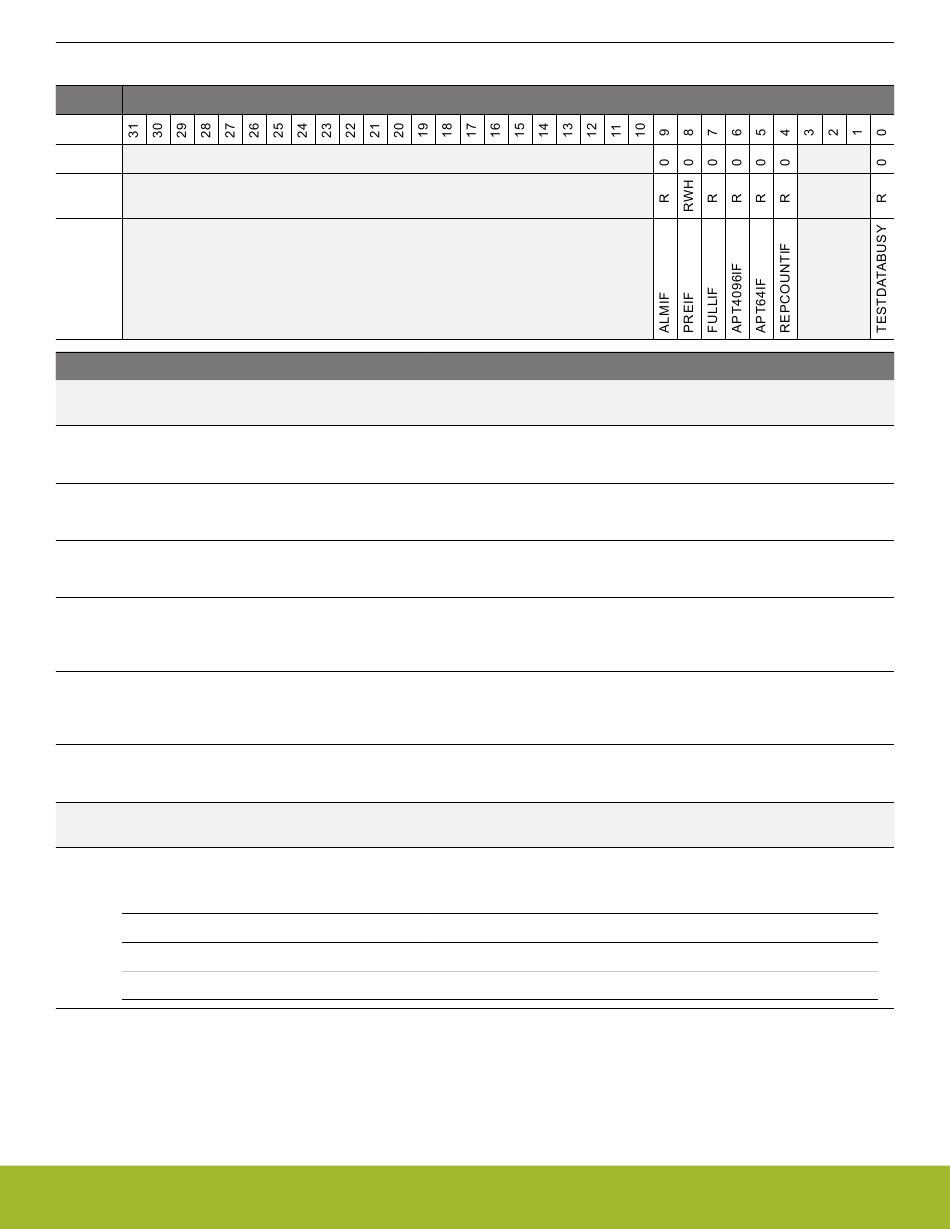

30.5.9 TRNGn_STATUS - Status Register

Offset
0x030
Reset
Access
Name
Bit Name
31:10 Reserved
9 ALMIF
Set when a noise alarm is detected in the AIS31 online test.
8 PREIF
Set when a preliminary noise alarm is detected in the AIS31 online test.
7 FULLIF
Set when the FIFO is full. The STATUS_FULLIF flag is cleared by reading FIFOLEVEL.
6 APT4096IF
Set when an Adaptive Proportion test (4096-sample window) failure occurs.
5 APT64IF
Set when an Adaptive Proportion test (64-sample window) failure occurs.
4 REPCOUNTIF
Set when a Repetition Count Test failure occurs.
3:1 Reserved
0 TESTDATABUSY
Indicates that data written to TESTDATA is being processed.
Value
0
1
