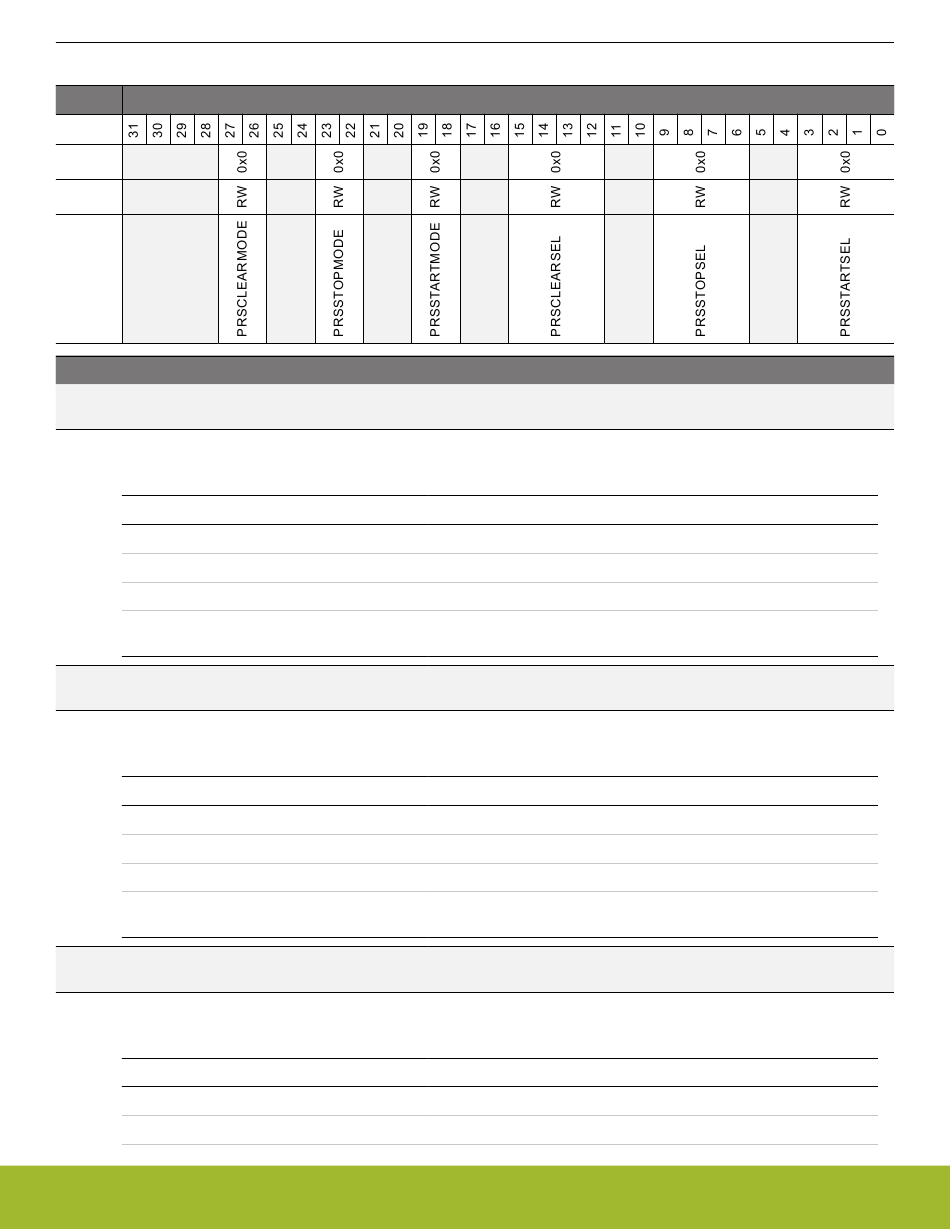

21.5.16 LETIMERn_PRSSEL - PRS Input Select Register

Offset
0x050
Reset
Access
Name
Bit Name
31:28 Reserved
27:26 PRSCLEARMODE
Determines mode for PRS input clear.
Value
0
1
2
3
25:24 Reserved
23:22 PRSSTOPMODE
Determines mode for PRS input stop.
Value
0
1
2
3
21:20 Reserved
19:18 PRSSTARTMODE
Determines mode for PRS input start.
Value
0
1
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW PRS Clear Mode
Mode Description
NONE PRS cannot clear the LETIMER
RISING Rising edge of selected PRS input can clear the LETIMER
FALLING Falling edge of selected PRS input can clear the LETIMER
BOTH Both the rising or falling edge of the selected PRS input can clear the
LETIMER
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW PRS Stop Mode
Mode Description
NONE PRS cannot stop the LETIMER
RISING Rising edge of selected PRS input can stop the LETIMER
FALLING Falling edge of selected PRS input can stop the LETIMER
BOTH Both the rising or falling edge of the selected PRS input can stop the
LETIMER
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0 RW PRS Start Mode
Mode Description
NONE PRS cannot start the LETIMER
RISING Rising edge of selected PRS input can start the LETIMER
Bit Position
Reference Manual
LETIMER - Low Energy Timer
1.2 Conven-
1.2 Conven-
1.2 Conven-
