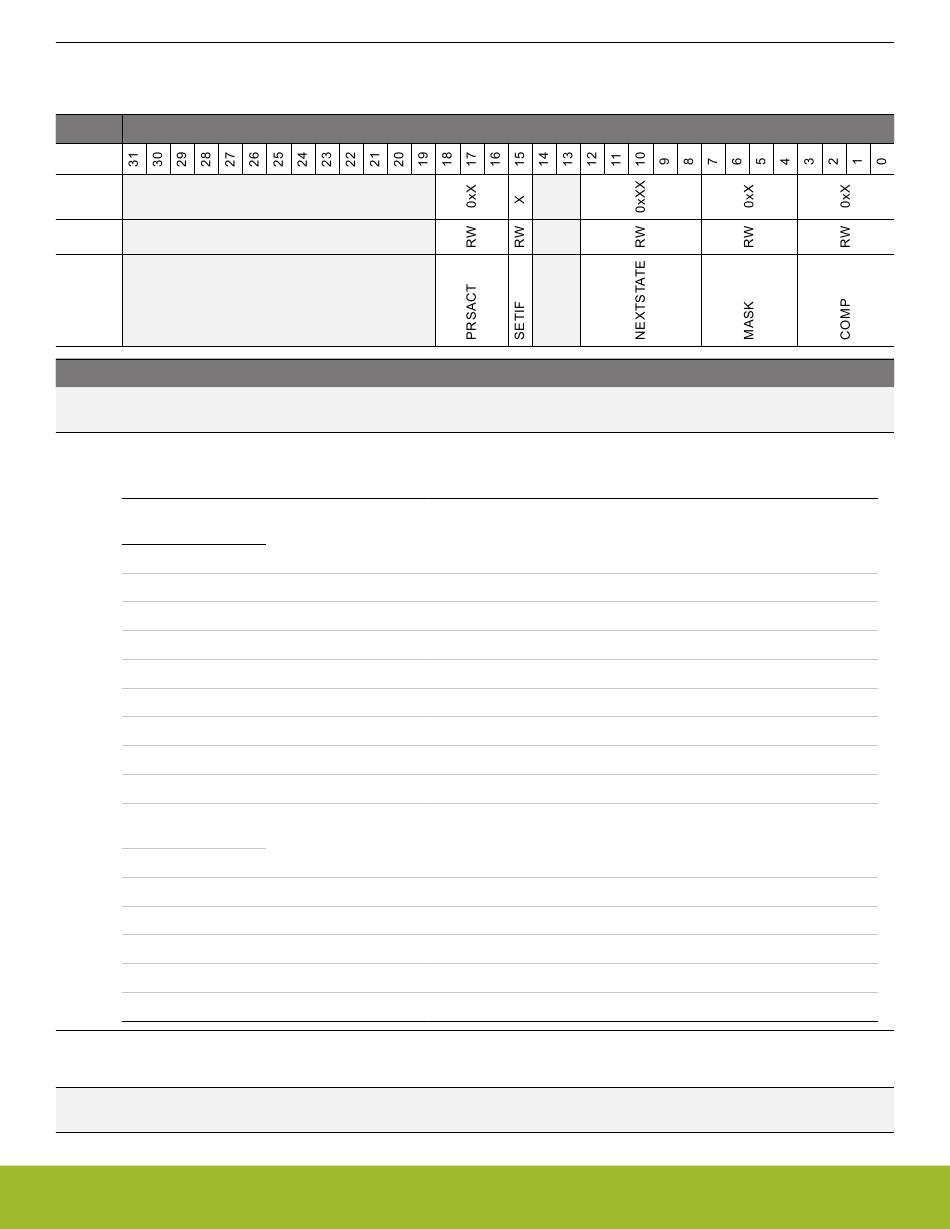

28.5.26 LESENSE_STx_TCONFB - State Transition Configuration B (Async Reg)

For more information about asynchronous registers see
Offset
0x104
Reset
Access
Name
Bit Name
31:19 Reserved
18:16 PRSACT
Configure which action to perform when sensor state equals COMP
DECCTRL_PRSCNT
= 0
Mode
NONE
PRS0
PRS1
PRS01
PRS2
PRS02
PRS12
PRS012
DECCTRL_PRSCNT
= 1
NONE
UP
DOWN
PRS2
UPANDPRS2
DOWNANDPRS2
15 SETIF
Set interrupt flag when sensor state equals COMP
14:13 Reserved
