25.5 Register Description

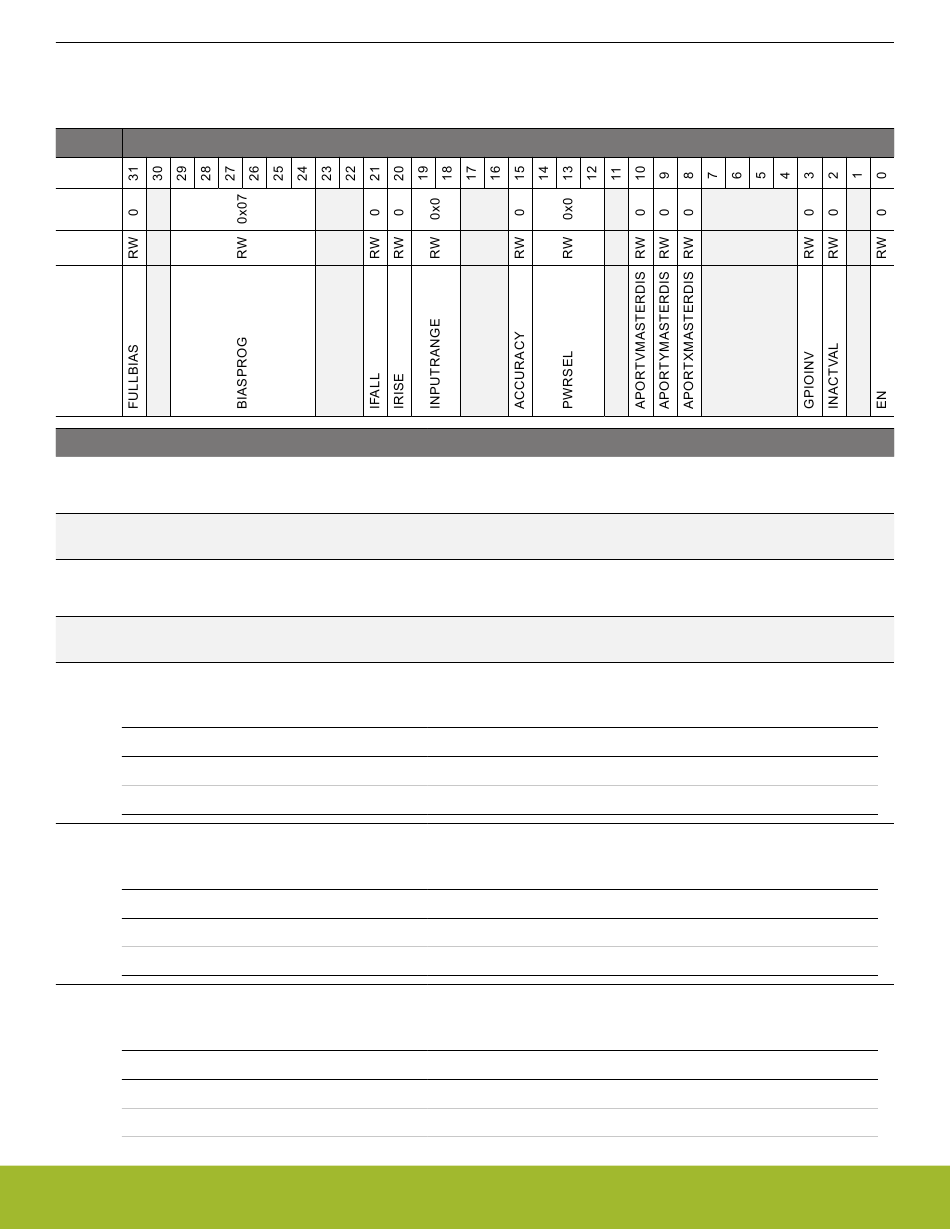

25.5.1 ACMPn_CTRL - Control Register
Offset
0x000
Reset
Access
Name
Bit Name
31 FULLBIAS
Set this bit to 1 for full bias current. See the data sheet for details.
30 Reserved
29:24 BIASPROG
These bits control the bias current level. See the data sheet for details.
23:22 Reserved
21 IFALL
Set this bit to 1 to set the EDGE interrupt flag on falling edges of comparator output.
Value
0
1
20 IRISE
Set this bit to 1 to set the EDGE interrupt flag on rising edges of comparator output.
Value
0
1
19:18 INPUTRANGE
Adjust performance of the comparator for a given input voltage range.
Value
0
1
