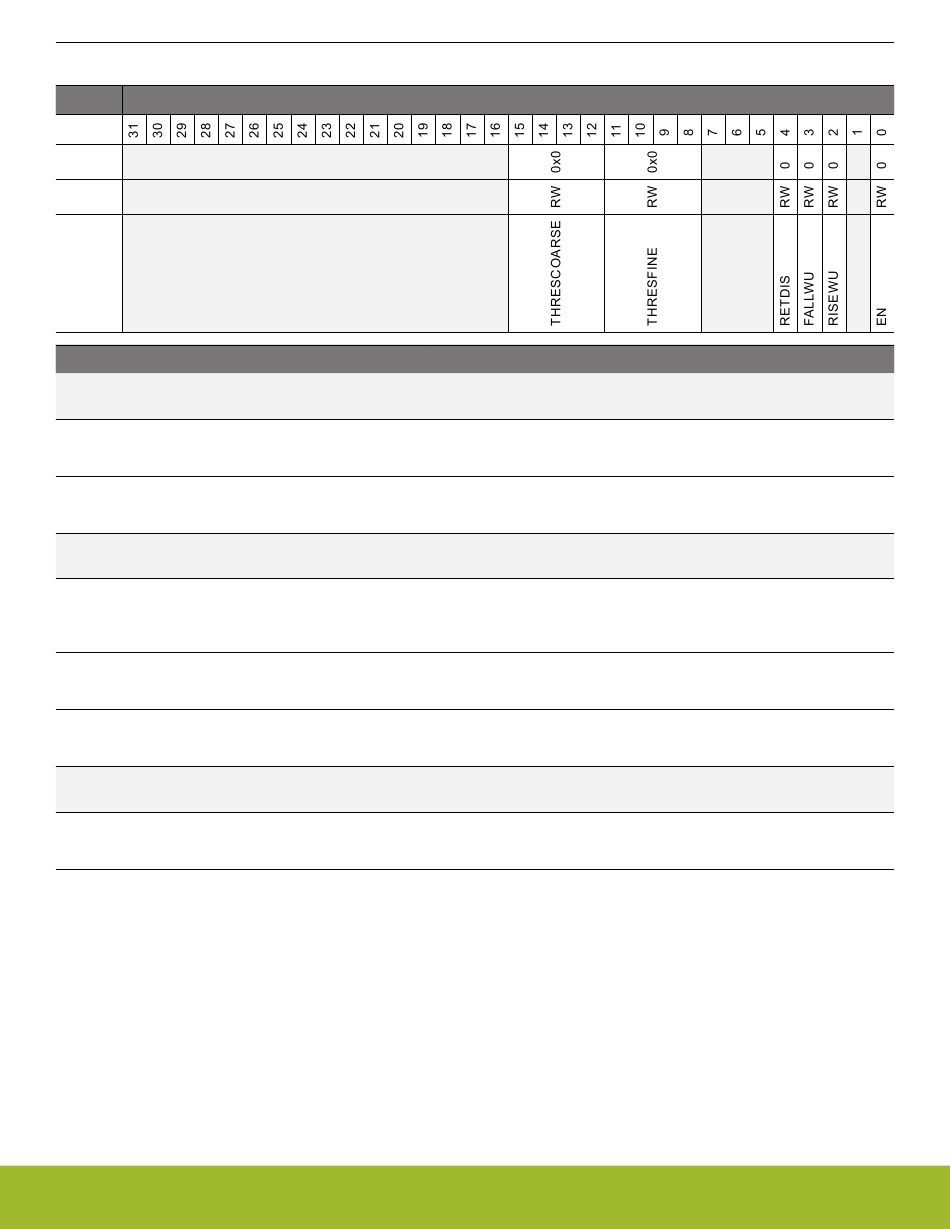

10.5.28 EMU_VMONIO0CTRL - VMON IOVDD0 Channel Control

Offset
0x09C
Reset
Access
Name
Bit
Name
31:16
Reserved
15:12
THRESCOARSE
Check VMON section for programming the threshold value. Reset with SYSEXTENDEDRESETn.
11:8
THRESFINE
Check VMON section for programming the threshold value. Reset with SYSEXTENDEDRESETn.
7:5
Reserved
4
RETDIS
When set, the IO0 Retention will be disabled when this IO0 voltage drops below the threshold set. Reset with SYSEXTEN-
DEDRESETn.
3
FALLWU
When set, a wakeup from EM4H will take place upon a falling edge. Reset with SYSEXTENDEDRESETn.
2
RISEWU
When set, a wakeup from EM4H will take place upon a rising edge. Reset with SYSEXTENDEDRESETn.
1
Reserved
0
EN
Set this bit to enable the IO0 VMON. Reset with SYSEXTENDEDRESETn.
silabs.com | Building a more connected world.
Reset
Access
Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x0
RW
Threshold Coarse Adjust
0x0
RW
Threshold Fine Adjust
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0
RW
EM4 IO0 Retention Disable
0
RW
Fall Wakeup
0
RW
Rise Wakeup
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0
RW
Enable
Bit Position
Reference Manual
EMU - Energy Management Unit
1.2 Conven-
1.2 Conven-
1.2 Conven-
Rev. 1.1 | 269
