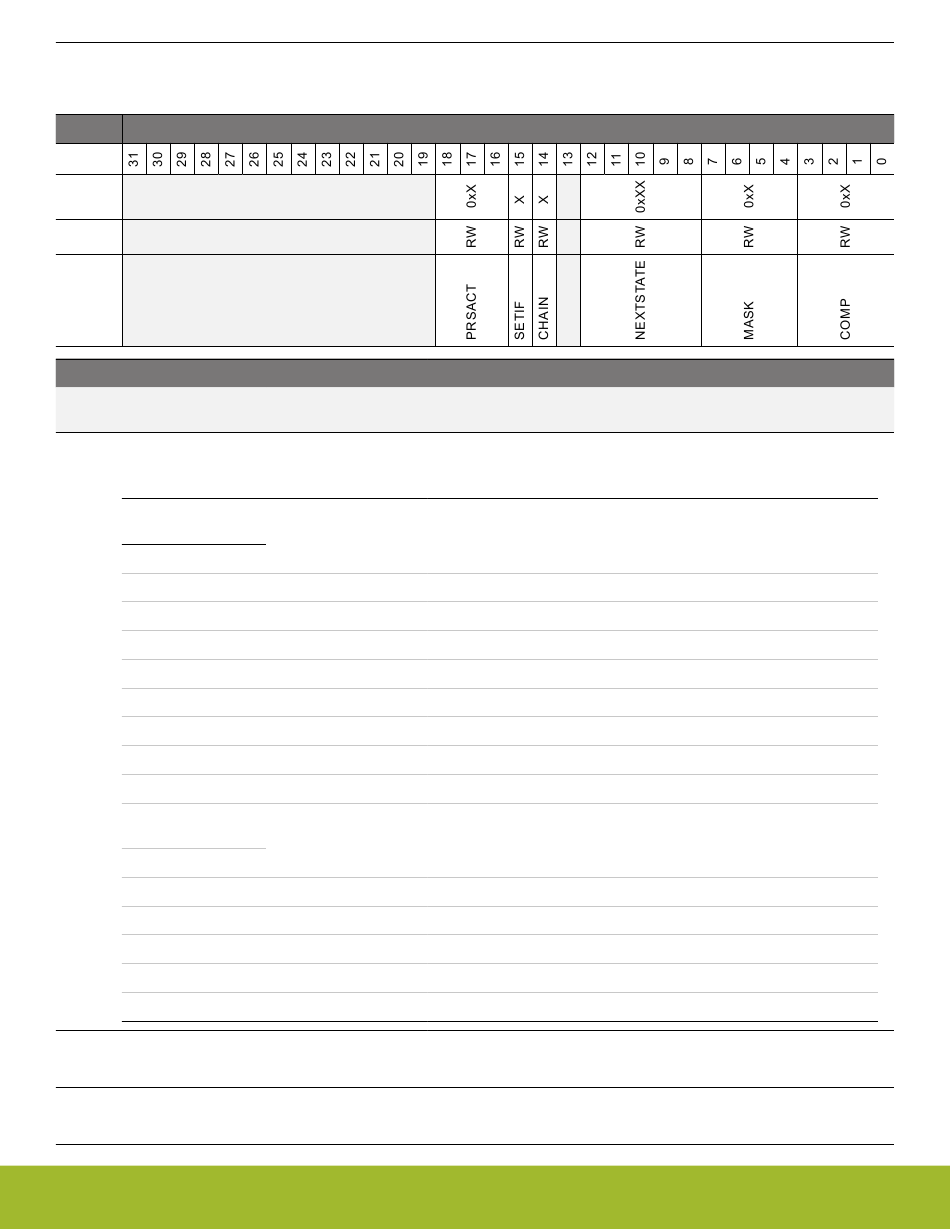

28.5.25 LESENSE_STx_TCONFA - State Transition Configuration a (Async Reg)

For more information about asynchronous registers see
Offset
0x100
Reset
Access
Name
Bit Name
31:19 Reserved
18:16 PRSACT
Configure which action to perform when sensor state equals COMP
DECCTRL_PRSCNT
= 0
Mode
NONE
PRS0
PRS1
PRS01
PRS2
PRS02
PRS12
PRS012
DECCTRL_PRSCNT
= 1
NONE
UP
DOWN
PRS2
UPANDPRS2
DOWNANDPRS2
15 SETIF
Set interrupt flag when sensor state equals COMP
14 CHAIN
When set, descriptor in the next location will also be evaluated
