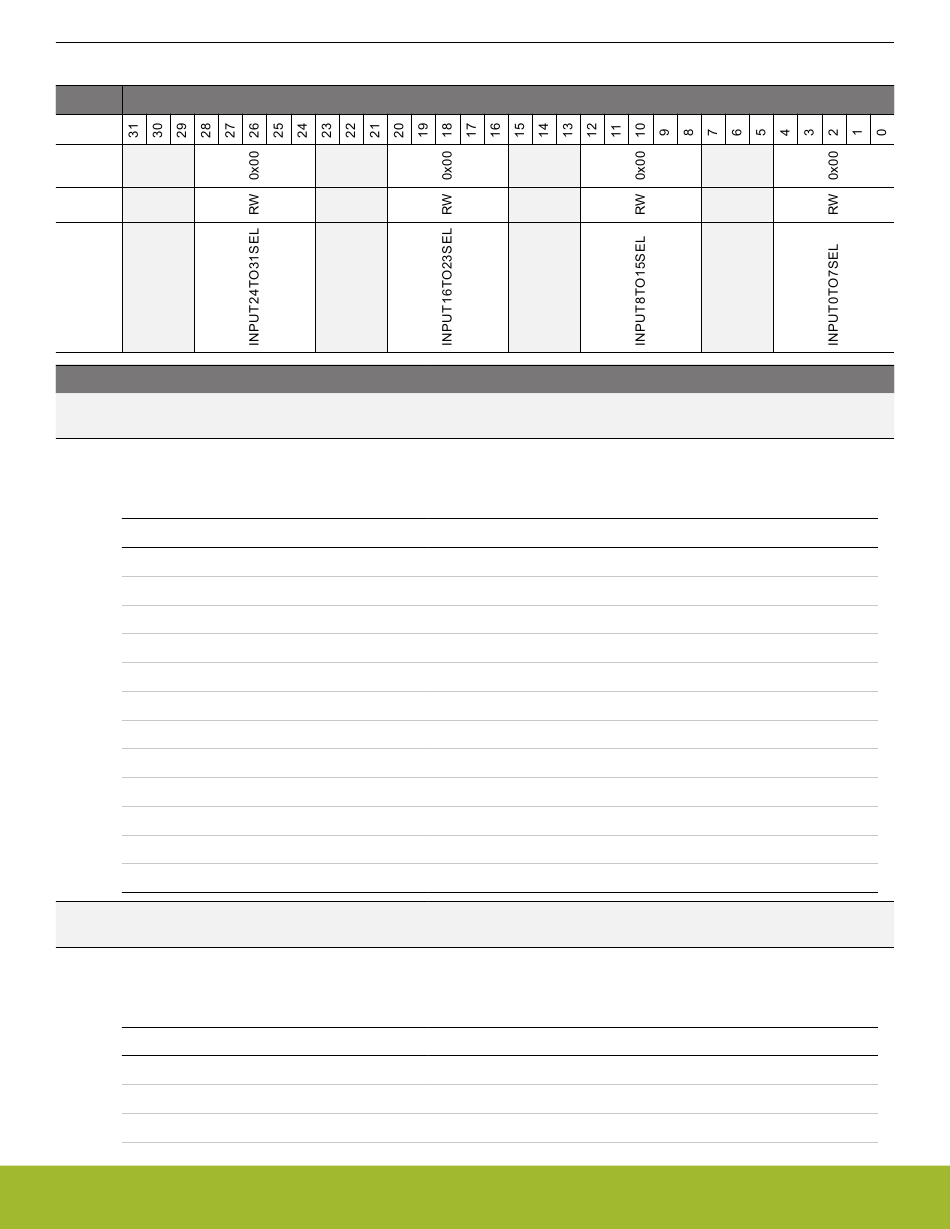

26.5.9 ADCn_SCANINPUTSEL - Input Selection Register for Scan Mode

Offset
0x024
Reset
Access
Name
Bit Name
31:29 Reserved
28:24 INPUT24TO31SEL
Mode
APORT0CH0TO7
APORT0CH8TO15
APORT1CH0TO7
APORT1CH8TO15
APORT1CH16TO23
APORT1CH24TO31
APORT2CH0TO7
...
APORT3CH0TO7
...
APORT4CH0TO7
...
23:21 Reserved
20:16 INPUT16TO23SEL
Mode
APORT0CH0TO7
APORT0CH8TO15
APORT1CH0TO7
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x00 RW Inputs Chosen for ADCn_INPUT24-ADCn_INPUT31 as Referred in
SCANMASK
Value Description
0 Select APORT0's CH0-CH7 as ADCn_INPUT24-ADCn_INPUT31
1 Select APORT0's CH8-CH15 as ADCn_INPUT24-ADCn_INPUT31
4 Select APORT1's CH0-CH7 as ADCn_INPUT24-ADCn_INPUT31
5 Select APORT1's CH8-CH15 as ADCn_INPUT24-ADCn_INPUT31
6 Select APORT1's CH16-CH23 as ADCn_INPUT24-ADCn_INPUT31
7 Select APORT1's CH24-CH31 as ADCn_INPUT24-ADCn_INPUT31
8 Select APORT2's CH0-CH7 as ADCn_INPUT24-ADCn_INPUT31
. ........
12 Select APORT3's CH0-CH7 as ADCn_INPUT24-ADCn_INPUT31
. ........
16 Select APORT4's CH0-CH7 as ADCn_INPUT24-ADCn_INPUT31
. ........
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0x00 RW Inputs Chosen for ADCn_INPUT16-ADCn_INPUT23 as Referred in
SCANMASK
Value Description
0 Select APORT0's CH0-CH7 as ADCn_INPUT16-ADCn_INPUT23
1 Select APORT0's CH8-CH15 as ADCn_INPUT16-ADCn_INPUT23
4 Select APORT1's CH0-CH7 as ADCn_INPUT16-ADCn_INPUT23
Bit Position
Reference Manual
ADC - Analog to Digital Converter
1.2 Conven-
1.2 Conven-
Rev. 1.1 | 894
