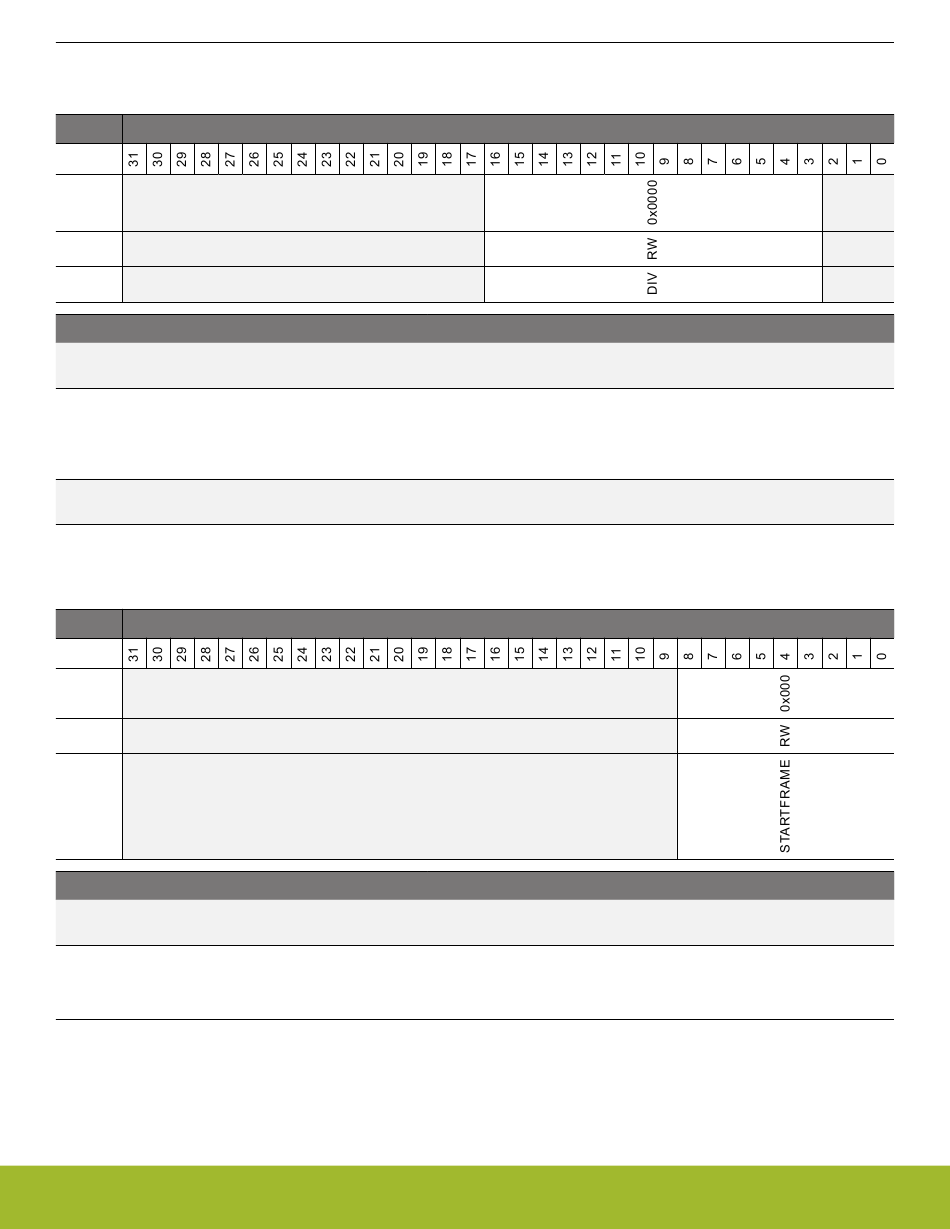

19.5.4 LEUARTn_CLKDIV - Clock Control Register (Async Reg)

For more information about asynchronous registers see
Offset
0x00C
Reset
Access
Name
Bit Name
31:17 Reserved
16:3 DIV
Specifies the fractional clock divider for the LEUART. Bits [7:3] are the fractional part and bits [16:8] are the integer part.
The total divider is ([16:8] + [7:3]/32). To make the math easier the total divider can also be calculated as '([16:8] + [7:0]/
256) where bits [0:2] will always be 0.
2:0 Reserved

19.5.5 LEUARTn_STARTFRAME - Start Frame Register (Async Reg)

For more information about asynchronous registers see
Offset
0x010
Reset
Access
Name
Bit Name
31:9 Reserved
8:0 STARTFRAME
When a frame matching STARTFRAME is detected by the receiver, STARTF interrupt flag is set, and if SFUBRX is set,
RXBLOCK is cleared. The start-frame is be loaded into the RX buffer.
