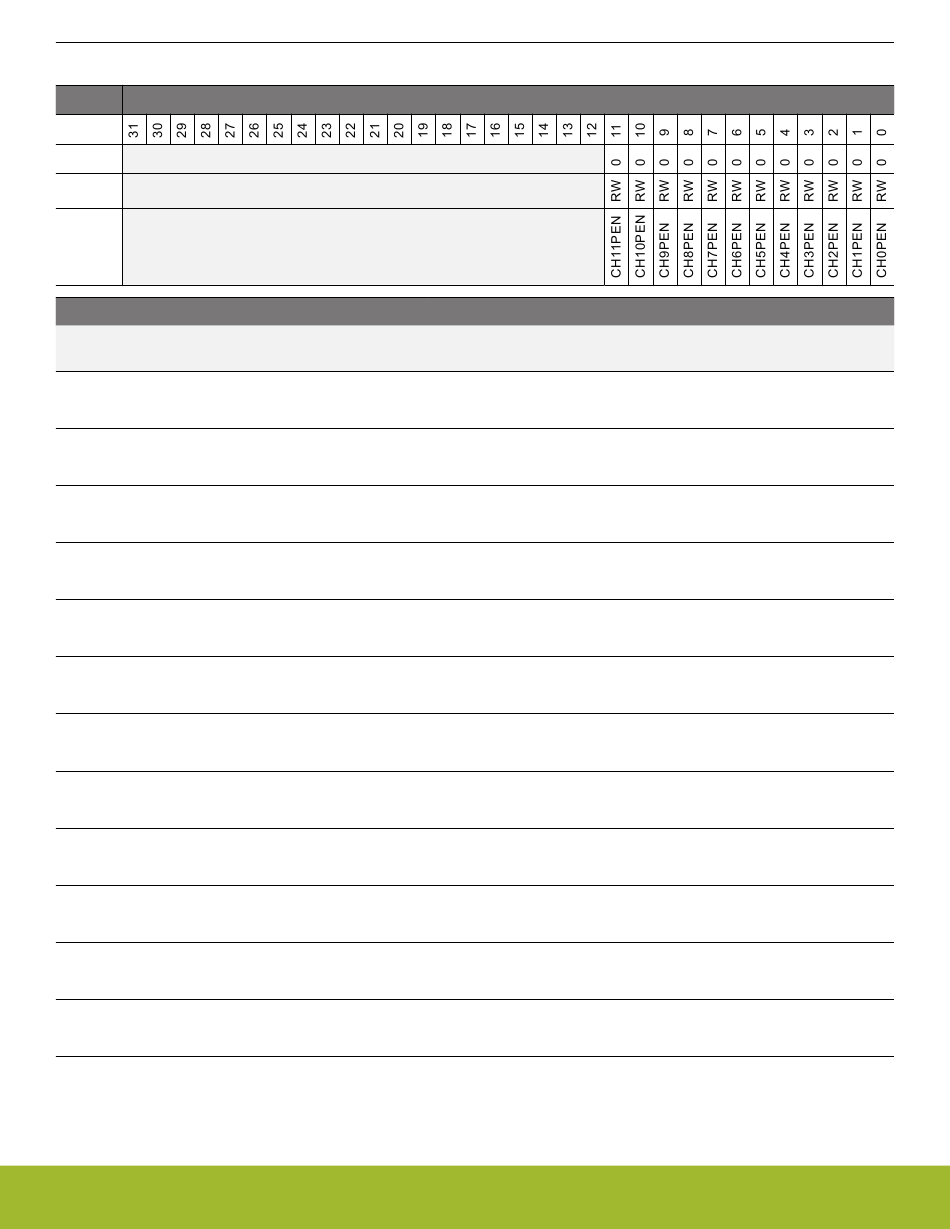

15.5.3 PRS_ROUTEPEN - I/O Routing Pin Enable Register

Offset
0x008
Reset
Access
Name
Bit Name
31:12 Reserved
11 CH11PEN
When set, GPIO output from PRS channel 11 is enabled
10 CH10PEN
When set, GPIO output from PRS channel 10 is enabled
9 CH9PEN
When set, GPIO output from PRS channel 9 is enabled
8 CH8PEN
When set, GPIO output from PRS channel 8 is enabled
7 CH7PEN
When set, GPIO output from PRS channel 7 is enabled
6 CH6PEN
When set, GPIO output from PRS channel 6 is enabled
5 CH5PEN
When set, GPIO output from PRS channel 5 is enabled
4 CH4PEN
When set, GPIO output from PRS channel 4 is enabled
3 CH3PEN
When set, GPIO output from PRS channel 3 is enabled
2 CH2PEN
When set, GPIO output from PRS channel 2 is enabled
1 CH1PEN
When set, GPIO output from PRS channel 1 is enabled
0 CH0PEN
When set, GPIO output from PRS channel 0 is enabled
silabs.com | Building a more connected world.
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 RW CH11 Pin Enable
0 RW CH10 Pin Enable
0 RW CH9 Pin Enable
0 RW CH8 Pin Enable
0 RW CH7 Pin Enable
0 RW CH6 Pin Enable
0 RW CH5 Pin Enable
0 RW CH4 Pin Enable
0 RW CH3 Pin Enable
0 RW CH2 Pin Enable
0 RW CH1 Pin Enable
0 RW CH0 Pin Enable
Bit Position
Reference Manual
PRS - Peripheral Reflex System
1.2 Conven-
