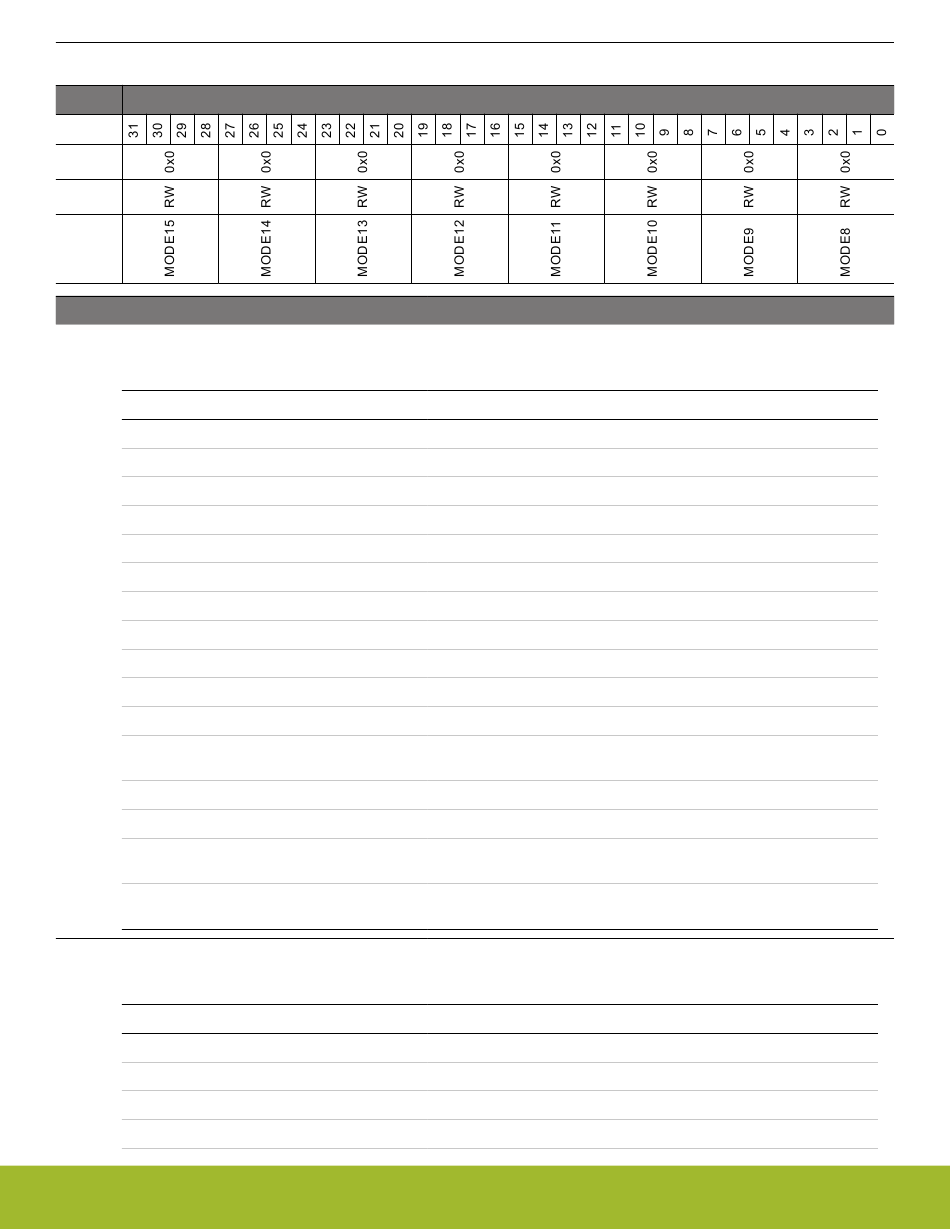

32.5.3 GPIO_Px_MODEH - Port Pin Mode High Register

Offset
0x008
Reset
Access
Name
Bit Name
31:28 MODE15
Configure mode for pin 15.
Value
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
27:24 MODE14
Configure mode for pin 14.
Value
0
1
2
3
silabs.com | Building a more connected world.
Reset Access Description
0x0 RW Pin 15 Mode
Mode Description
DISABLED Input disabled. Pullup if DOUT is set.
INPUT Input enabled. Filter if DOUT is set
INPUTPULL Input enabled. DOUT determines pull direction
INPUTPULLFILTER Input enabled with filter. DOUT determines pull direction
PUSHPULL Push-pull output
PUSHPULLALT Push-pull using alternate control
WIREDOR Wired-or output
WIREDORPULLDOWN Wired-or output with pull-down
WIREDAND Open-drain output
WIREDANDFILTER Open-drain output with filter
WIREDANDPULLUP Open-drain output with pullup
WIREDANDPULLUP- Open-drain output with filter and pullup
FILTER
WIREDANDALT Open-drain output using alternate control
WIREDANDALTFILTER Open-drain output using alternate control with filter
WIREDANDALTPULL- Open-drain output using alternate control with pullup
UP
WIREDANDALTPUL- Open-drain output using alternate control with filter and pullup
LUPFILTER
0x0 RW Pin 14 Mode
Mode Description
DISABLED Input disabled. Pullup if DOUT is set.
INPUT Input enabled. Filter if DOUT is set
INPUTPULL Input enabled. DOUT determines pull direction
INPUTPULLFILTER Input enabled with filter. DOUT determines pull direction
