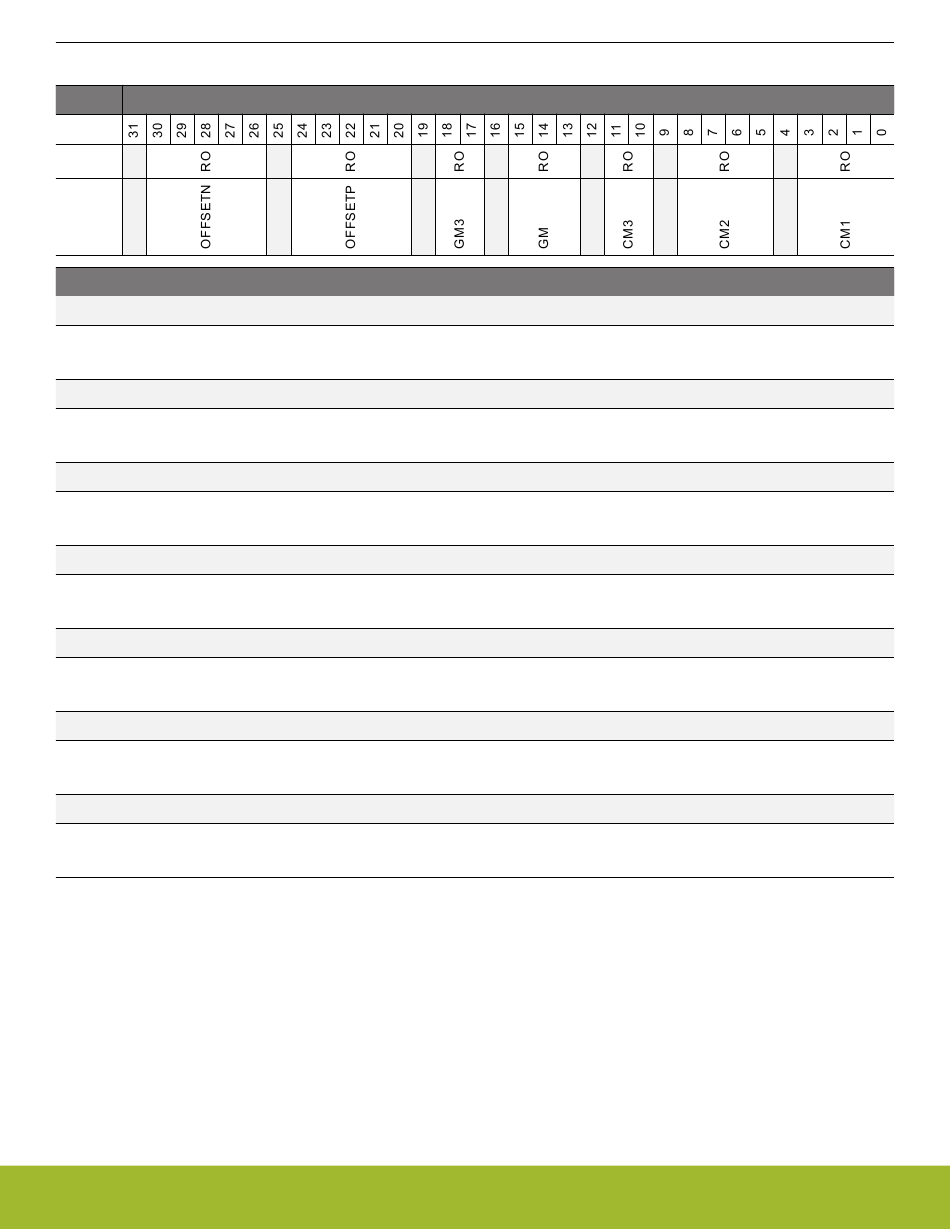

4.7.50 OPA0CAL2 - OPA0 Calibration Register for DRIVESTRENGTH 2, INCBW=1

Offset
0x198
Access
Name
Bit Name
31 Reserved
30:26 OFFSETN
25 Reserved
24:20 OFFSETP
19 Reserved
18:17 GM3
16 Reserved
15:13 GM
12 Reserved
11:10 CM3
9 Reserved
8:5 CM2
4 Reserved
3:0 CM1
