8.3.1.9 DMA Size and Source/Destination Increment Programming
The DMA channels' SIZE, SRCINC, and DSTINC bit-fields are programmed to best utilize memory resources. They provide a means
for memory packing and unpacking, as well as for matching the size of data being transmitted to or received from an IO peripheral. The

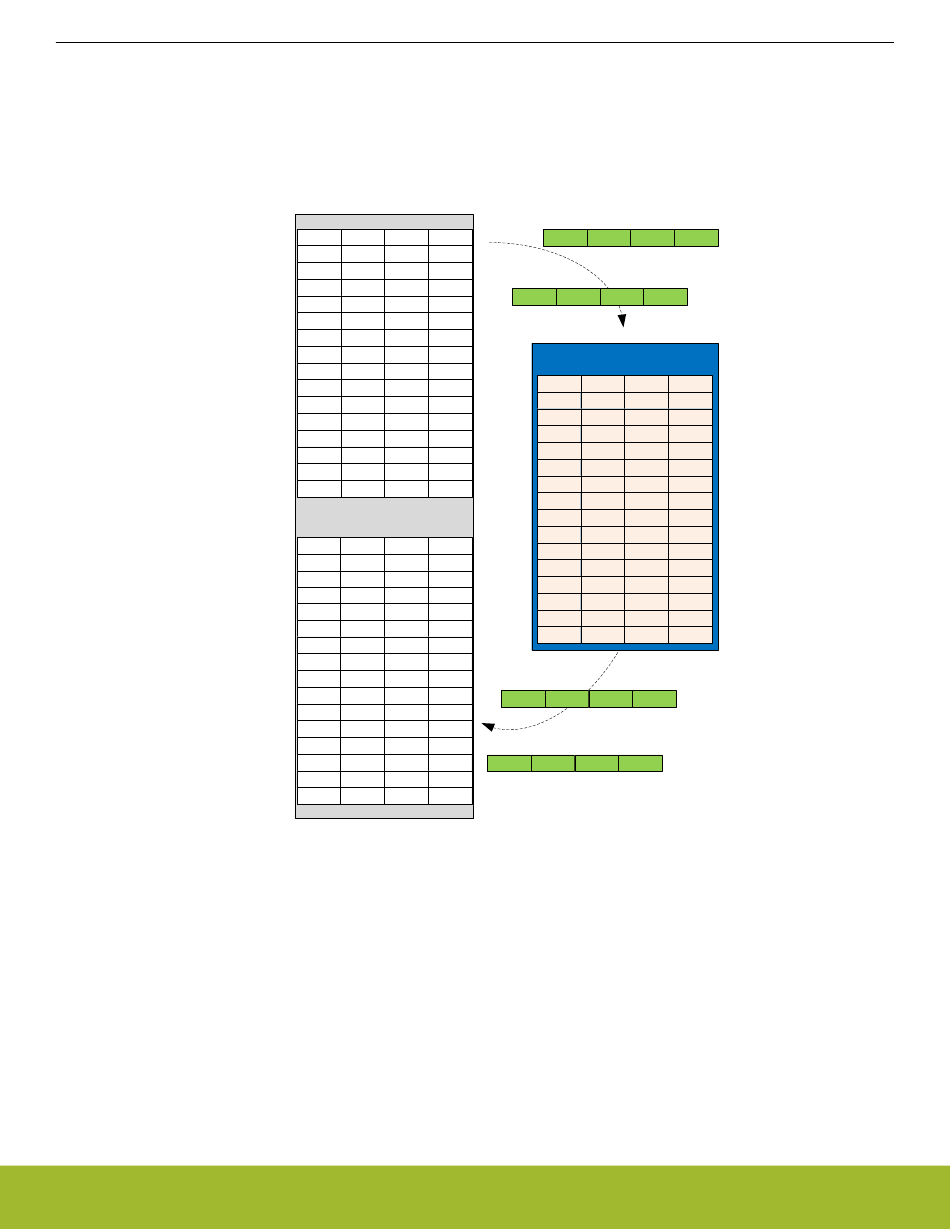

following figure shows how 32-bit words of data are read from a memory source into the DMA's internal transfer FIFO, and then written
out to the memory destination. The memory organization in bytes is shown as well as the first read to and write from the DMA's FIFO.
destination
The next example shows four variations of half-word sized transfers, with all possible combinations of half- and full-word source and
destination increments. Note that when the size and source/destination increments are all configured for half-word, the resulting DMA
transfer organization is equivalent to the full-word sized transfer in the previous example. The difference is that the half-word configura-
tion requires twice as many DMA transfers.
