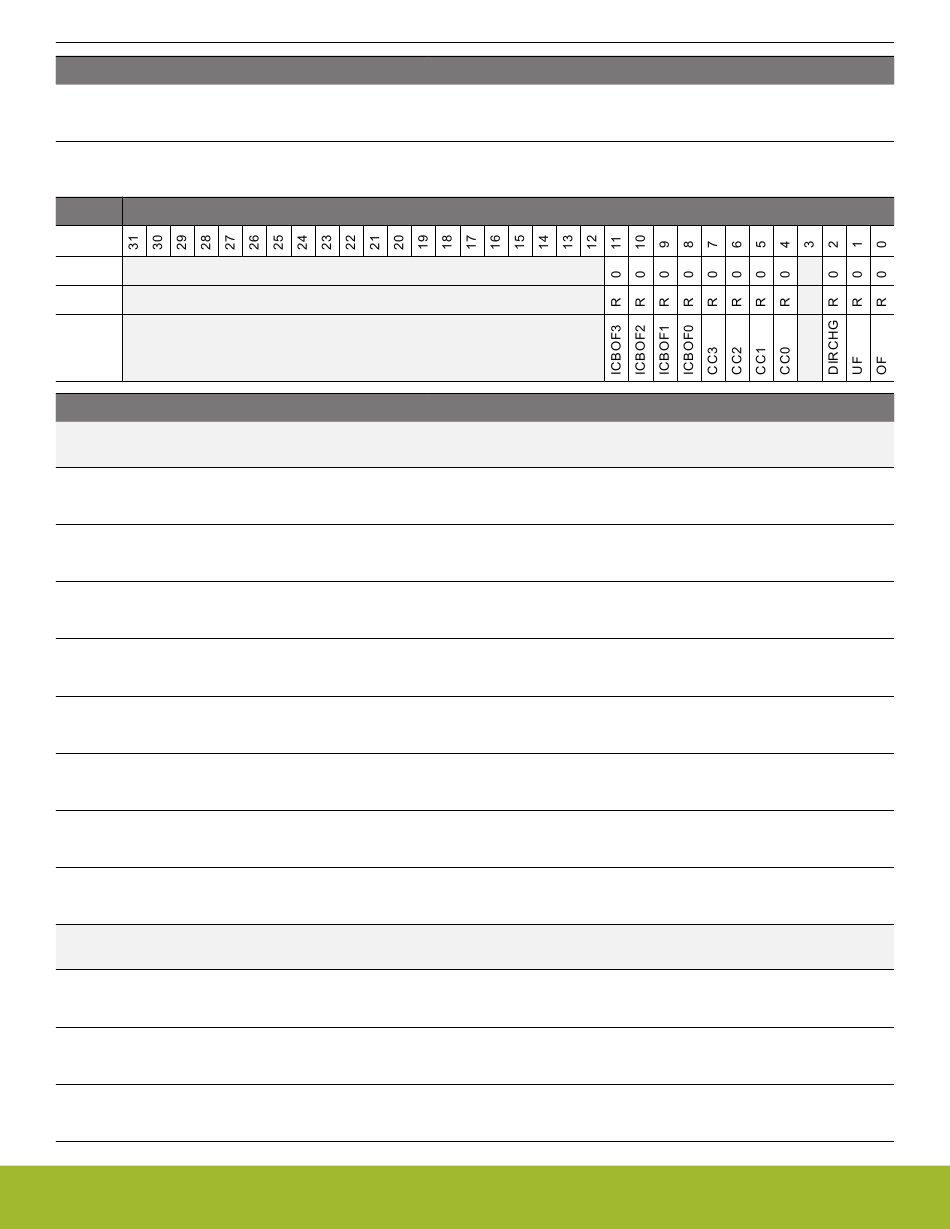

20.5.4 TIMERn_IF - Interrupt Flag Register

Offset
0x00C
Reset
Access
Name
Bit Name
31:12 Reserved
11 ICBOF3
This bit indicates that a new capture value has pushed an unread value out of TIMERn_CC3_CCVB.
10 ICBOF2
This bit indicates that a new capture value has pushed an unread value out of TIMERn_CC2_CCVB.
9 ICBOF1
This bit indicates that a new capture value has pushed an unread value out of TIMERn_CC1_CCVB.
8 ICBOF0
This bit indicates that a new capture value has pushed an unread value out of TIMERn_CC0_CCVB.
7 CC3
This bit indicates that there has been an interrupt event on Compare/Capture channel 3.
6 CC2
This bit indicates that there has been an interrupt event on Compare/Capture channel 2.
5 CC1
This bit indicates that there has been an interrupt event on Compare/Capture channel 1.
4 CC0
This bit indicates that there has been an interrupt event on Compare/Capture channel 0.
3 Reserved
2 DIRCHG
This bit is set when count direction changes. Set only in Quadrature Decoder mode
1 UF
This bit indicates that there has been an underflow.
0 OF
This bit indicates that there has been an overflow.
silabs.com | Building a more connected world.
Reset Access Description
0 R Running
Reset Access Description
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 R CC Channel 3 Input Capture Buffer Overflow Interrupt Flag
0 R CC Channel 2 Input Capture Buffer Overflow Interrupt Flag
0 R CC Channel 1 Input Capture Buffer Overflow Interrupt Flag
0 R CC Channel 0 Input Capture Buffer Overflow Interrupt Flag
0 R CC Channel 3 Interrupt Flag
0 R CC Channel 2 Interrupt Flag
0 R CC Channel 1 Interrupt Flag
0 R CC Channel 0 Interrupt Flag
To ensure compatibility with future devices, always write bits to 0. More information in
tions
0 R Direction Change Detect Interrupt Flag
0 R Underflow Interrupt Flag
0 R Overflow Interrupt Flag
