Up-counter
0
TOP
Down-counter
0
Calibration Started
Up-counter
0
TOP
Down-counter
0
Calibration Started
silabs.com | Building a more connected world.
Up-counter sampled and CALRDY
interrupt flag set.
Sampled value available in
CMU_CALCNT.
Calibration Stopped
(counters stopped)

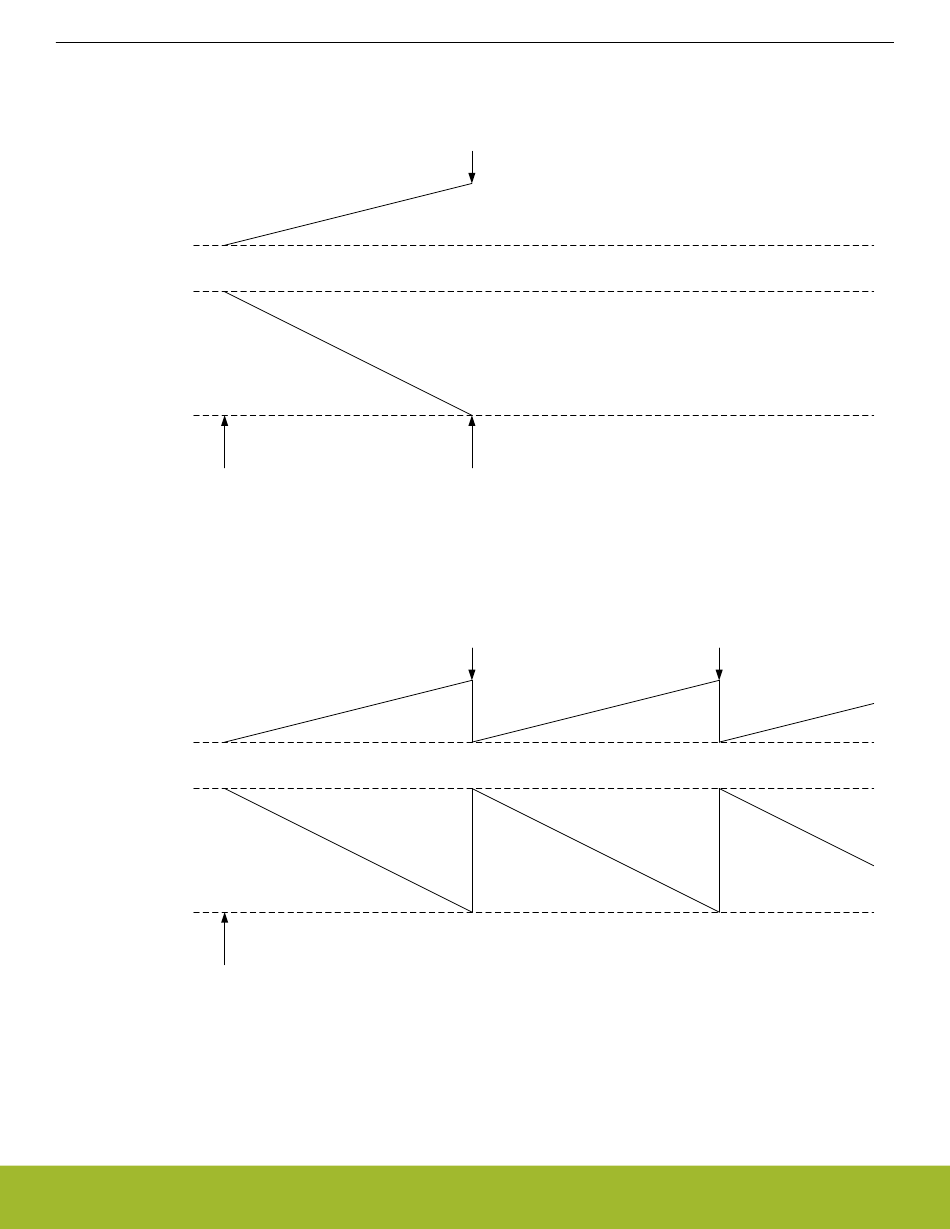

Figure 11.14. Single Calibration (CONT=0)
Up-counter sampled and CALRDY
interrupt flag set.
Sampled value available in
CMU_CALCNT.
Figure 11.15. Continuous Calibration (CONT=1)
Reference Manual
CMU - Clock Management Unit
Up-counter sampled and CALRDY
interrupt flag set.
Sampled value available in
CMU_CALCNT.
Rev. 1.1 | 301
