8.6 Register Description

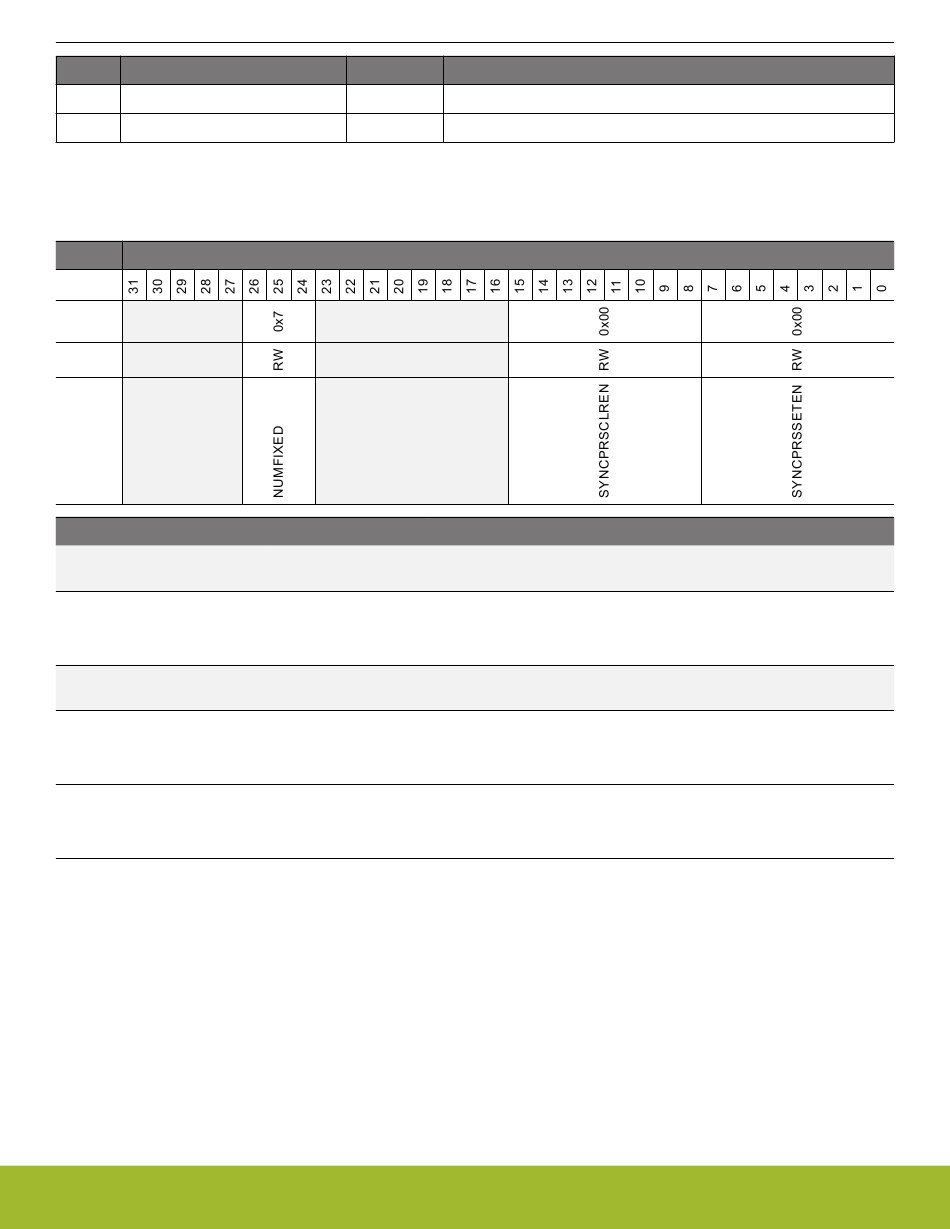

8.6.1 LDMA_CTRL - DMA Control Register

Offset
0x000
Reset
Access
Name
Bit
Name
31:27
Reserved
26:24
NUMFIXED
This field defines the number of Fixed Priority Arbitration channels. Channels CH0 though CH(n-1) are fixed, and channels
CH(n) through CH7 are round robin, where n is the field value. The reset value will give all fixed channels.
23:16
Reserved
15:8
SYNCPRSCLREN
Setting a bit in this field will enable the corresponding PRS input to clear the respective bit in the SYNCTRIG field of the
LDMA_SYNC register. Refer to the PRS section for a list of the PRS inputs.
7:0
SYNCPRSSETEN
Setting a bit in this field will enable the corresponding PRS input to set the respective bit in the SYNCTRIG field of the
LDMA_SYNC register. Refer to the PRS section for a list of the PRS inputs.
