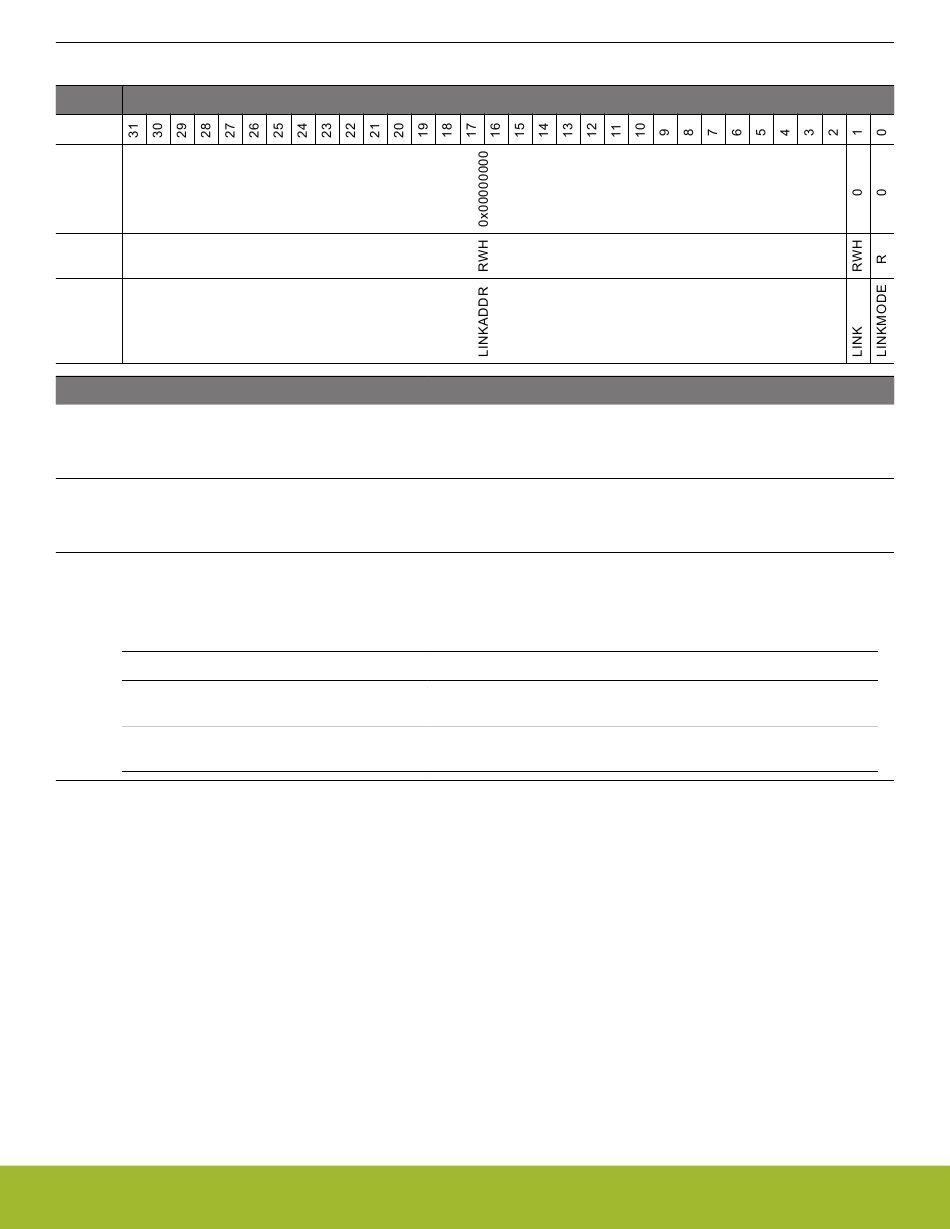

8.6.23 LDMA_CHx_LINK - Channel Descriptor Link Structure Address Register

Offset
0x098
Reset
Access
Name
Bit Name
31:2 LINKADDR
To use linking, write the address of the the first linked descriptor to this register. When a linked descriptor is loaded, it may
also be linked to another descriptor. Reading this register will reflect the address of the next linked descriptor.
1 LINK
After completing the initial transfer, if this bit is set, the DMA will load the next linked descriptor. If the next linked descriptor
also has this bit set, the DMA will load the next linked descriptor.
0 LINKMODE
This field specifies the addressing mode of linked descriptors. After loading a linked descriptor, reading this field will indi-
cate the addressing mode of the loaded linked descriptor. Note that the first descriptor always uses absolute addressing
mode.
Value
0
1
silabs.com | Building a more connected world.
Reset Access Description
0x00000000 RWH Link Structure Address
0 RWH Link Next Structure
0 R Link Structure Addressing Mode
Mode Description
ABSOLUTE The LINKADDR field of LDMA_CHx_LINK contains the absolute ad-
dress of the linked descriptor.
RELATIVE The LINKADDR field of LDMA_CHx_LINK contains the relative offset of
the linked descriptor.
Bit Position
Reference Manual
LDMA - Linked DMA Controller
Rev. 1.1 | 198
