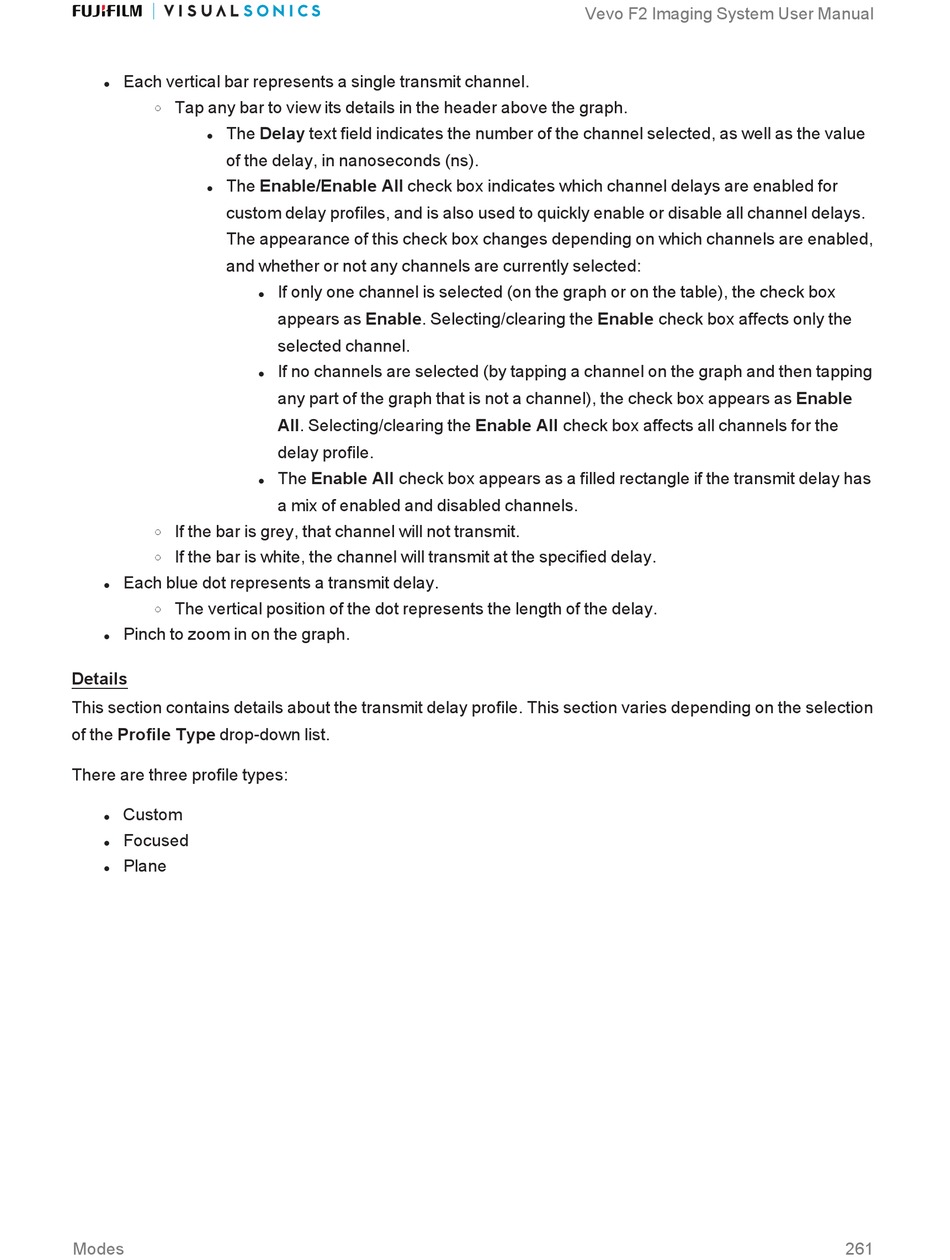

Each vertical bar represents a single transmit channel.
l
Tap any bar to view its details in the header above the graph.
o
The Delay text field indicates the number of the channel selected, as well as the value
l
of the delay, in nanoseconds (ns).
The Enable/Enable All check box indicates which channel delays are enabled for
l
custom delay profiles, and is also used to quickly enable or disable all channel delays.
The appearance of this check box changes depending on which channels are enabled,
and whether or not any channels are currently selected:
If the bar is grey, that channel will not transmit.
o
If the bar is white, the channel will transmit at the specified delay.
o
Each blue dot represents a transmit delay.
l
The vertical position of the dot represents the length of the delay.
o
Pinch to zoom in on the graph.
l
Details
This section contains details about the transmit delay profile. This section varies depending on the selection
of the Profile Type drop-down list.
There are three profile types:
Custom
l
Focused
l
Plane
l
Modes
If only one channel is selected (on the graph or on the table), the check box
l
appears as Enable. Selecting/clearing the Enable check box affects only the
selected channel.
If no channels are selected (by tapping a channel on the graph and then tapping
l
any part of the graph that is not a channel), the check box appears as Enable
All. Selecting/clearing the Enable All check box affects all channels for the
delay profile.
The Enable All check box appears as a filled rectangle if the transmit delay has
l
a mix of enabled and disabled channels.
