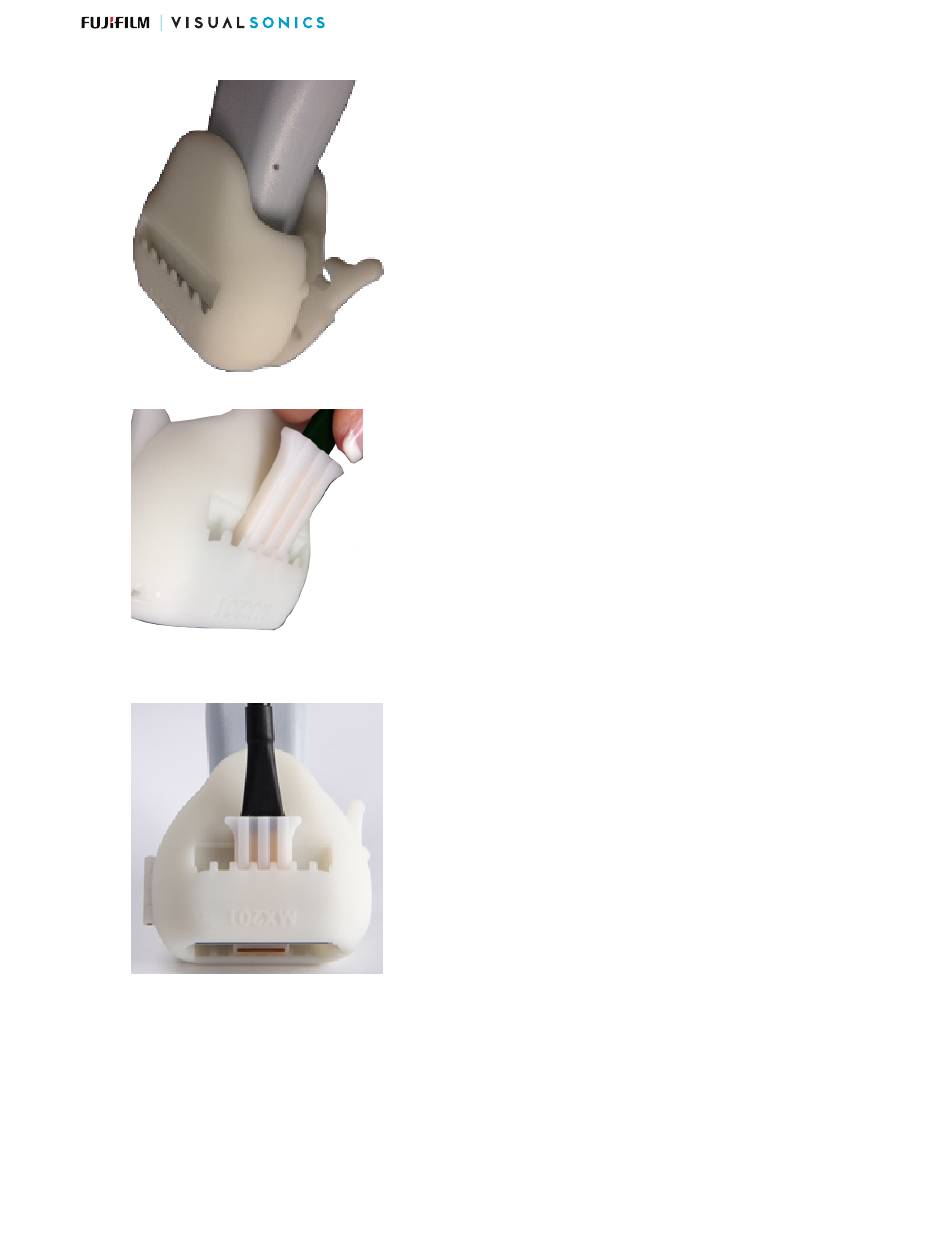

5. Obtain the fiber bundle and insert each piece into either side of the jacket.
6. When using a fiber bundle smaller than the transducer width (for example, the narrow fibers with the
UHF22x) ensure the fibers are centered with respect to the transducer.
Connecting Transducers to the Vevo LAZR-X laser cart
Connecting a transducer to the Vevo LAZR-X laser cart is similar to the procedure for the Vevo F2, except
there are additional steps to connect the transducer to the laser cart.
Components
Vevo F2 Imaging System User Manual
423
