Vevo F2 Imaging System User Manual

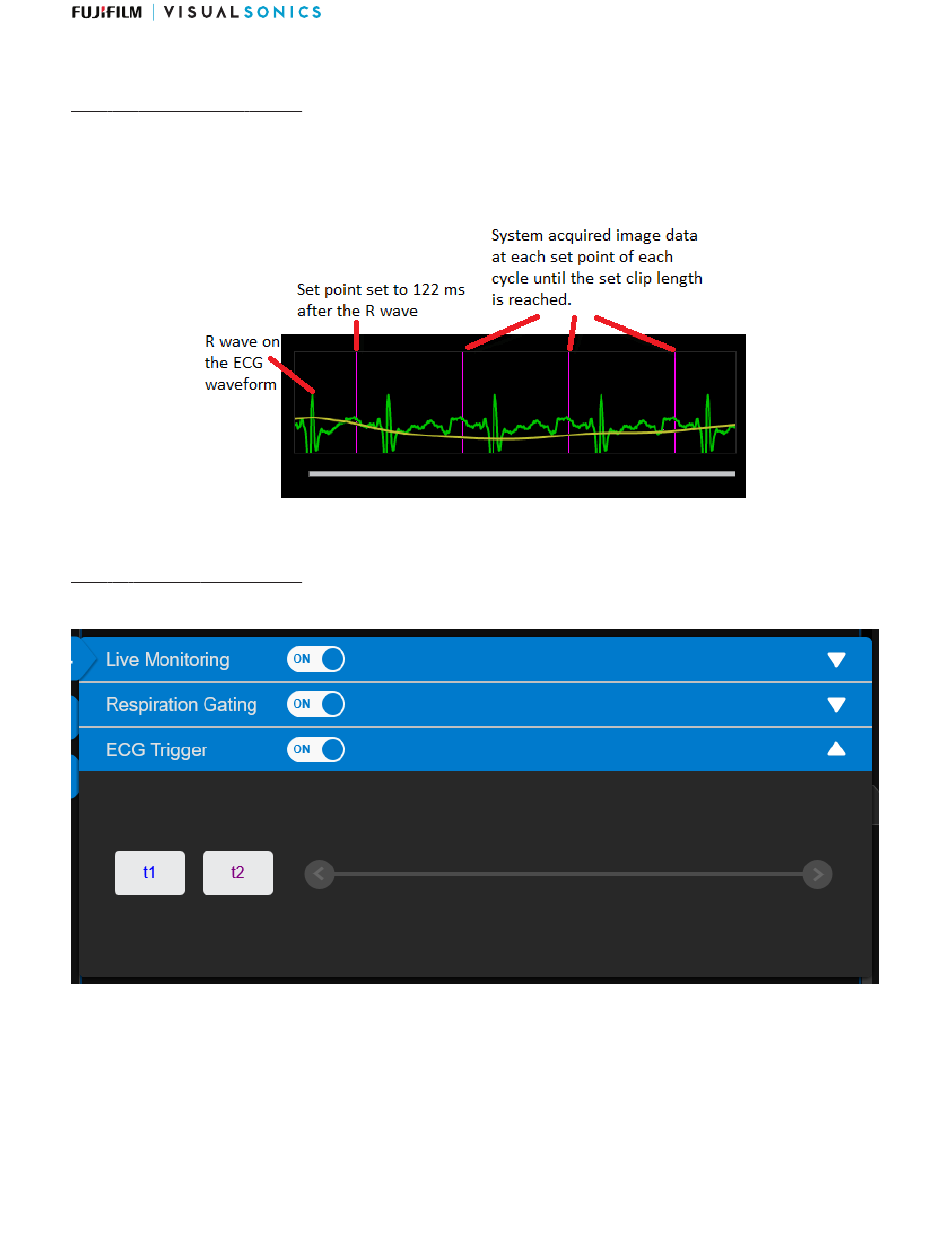

How the ECG Trigger Works
ECG triggering acquires one single frame of image data during each cardiac cycle, at precisely the same
time point after the R wave peak. The result of this triggering is a clip of a nearly static heart. It can also be
used to acquire two frames at two specific time points after the R wave.
How ECG Triggering works
How to Use the ECG Trigger
ECG Trigger settings are controlled in the ECG Trigger section of the Physiology panel.
The ECG Trigger panel
Session Tasks 54
