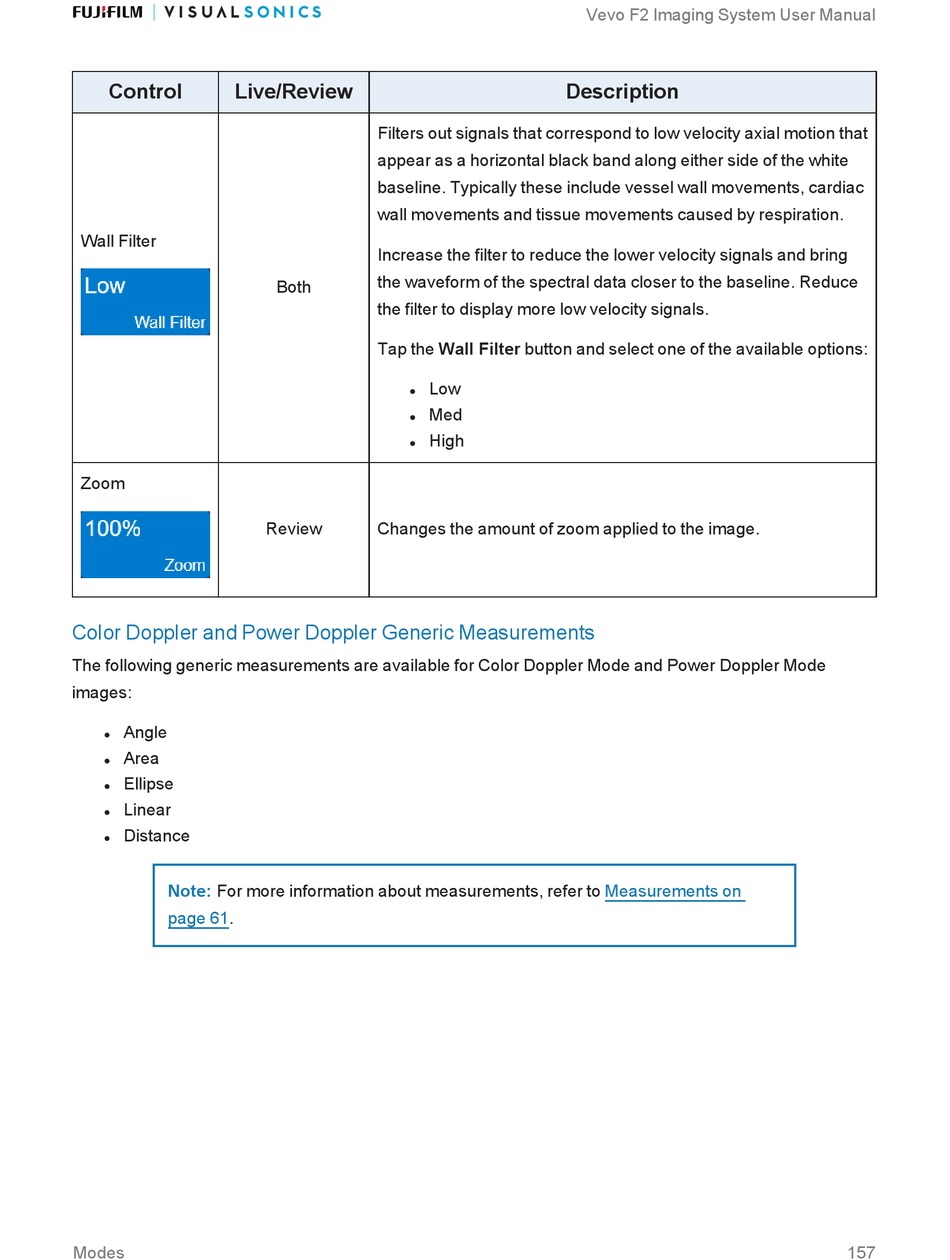

FujiFilm VisualSonics Vevo F2 User Manual page 157

Control Live/Review
Wall Filter
Zoom
Color Doppler and Power Doppler Generic Measurements
The following generic measurements are available for Color Doppler Mode and Power Doppler Mode
images:
Angle
l
Area
l
Ellipse
l
Linear
l
Distance
l
Note: For more information about measurements, refer to Measurements on
page 61.
Modes
Filters out signals that correspond to low velocity axial motion that
appear as a horizontal black band along either side of the white
baseline. Typically these include vessel wall movements, cardiac
wall movements and tissue movements caused by respiration.
Increase the filter to reduce the lower velocity signals and bring
the waveform of the spectral data closer to the baseline. Reduce
Both
the filter to display more l ow velocity signals.
Tap the Wall Filter button and select one of the available options:
Low
l
Med
l
High
l
Review Changes the amount of zoom applied to the image.
Vevo F2 Imaging System User Manual
Description
157
