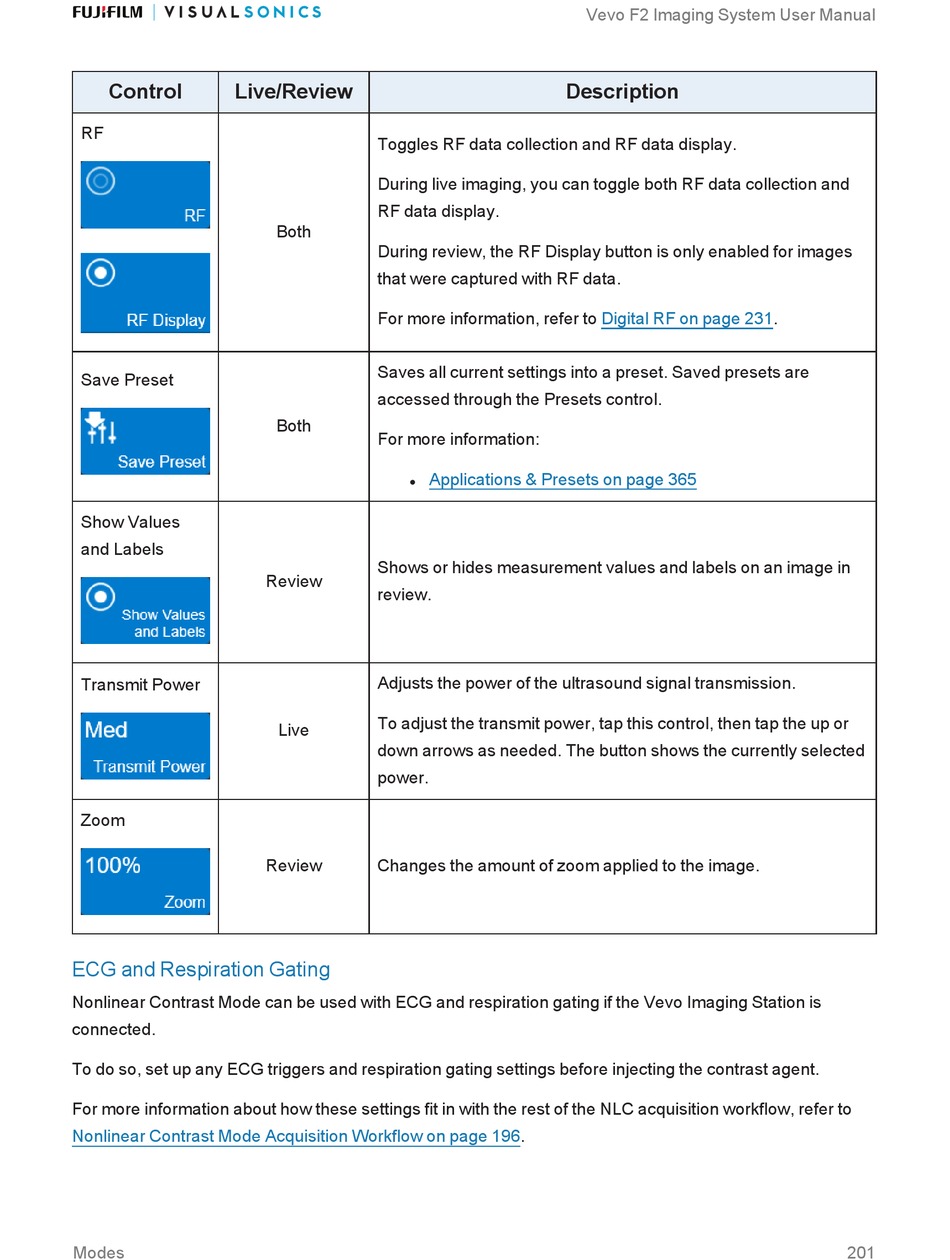

FujiFilm VisualSonics Vevo F2 User Manual page 201

Control Live/Review
RF
Save Preset
Show Values
and Labels
Transmit Power
Zoom
ECG and Respiration Gating
Nonlinear Contrast Mode can be used with ECG and respiration gating if the Vevo Imaging Station is
connected.
To do so, set up any ECG triggers and respiration gating settings before injecting the contrast agent.
For more information about how these settings fit in with the rest of the NLC acquisition workflow, refer to
Nonlinear Contrast Mode Acquisition Workflow on page 196.
Modes
Toggles RF data collection and RF data display.
During live imaging, you can toggle both RF data collection and
RF data display.
Both
During review, the RF Display button is only enabled for images
that were captured with RF data.
For more information, refer to Digital RF o
Saves all current settings into a preset. Saved presets are
accessed through the Presets control.
Both
For more information:
Applications & Presets on page 365
l
Shows or hides measurement values and labels on an image in
Review
review.
Adjusts the power of the ultrasound signal transmission.
To adjust the transmit power, tap this control, then tap the up or
Live
down arrows as needed. The button shows the currently selected
power.
Review Changes the amount of zoom applied to the image.
Vevo F2 Imaging System User Manual
Description
n page 231.
