Vevo F2 Imaging System User Manual
Before scanning an image, the tab appears on the left side of the control panel. The 3D Mode panel is used
to set parameters (which includes setting the motor position) and starting the 3D Mode scan.

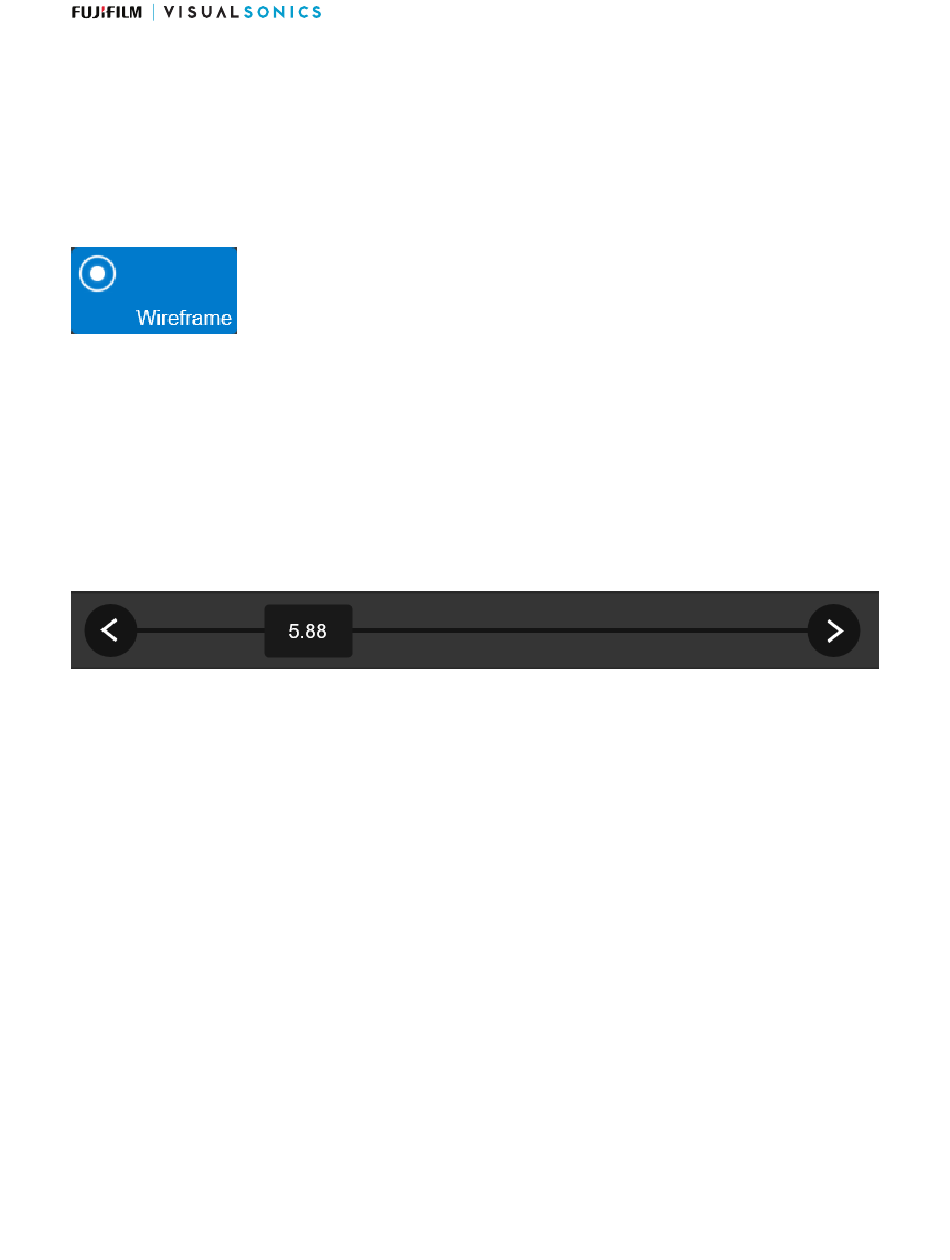

Cube Wireframe
A wireframe appears over every view by default.
To turn this wireframe on or off, tap the Wireframe control.
Orientation Indicator
The orientation indicator shows the x, y, and z-axis positions of the image. It turns when you turn the image
in 3D Mode.
Inactive View Pane
The gray panes on the control panel represent inactive panes on the Image Display.
Tap any inactive pane to select it.
Frame Slider
The frame slider
The frame slider shows the current slice being displayed on the selected pane.
To change frames, tap and drag the slider, or tap the arrow buttons to either side of the slider.
Working with 3D Mode Images
This section lists procedures for common tasks when reviewing a 3D Mode image after tapping the Load
into 3D button.
Change View Types
Each view pane can be set to a different view type.
To change the view type of a pane, tap the pane, t ap the View Type control, and then tap a view type.
Modes 209
