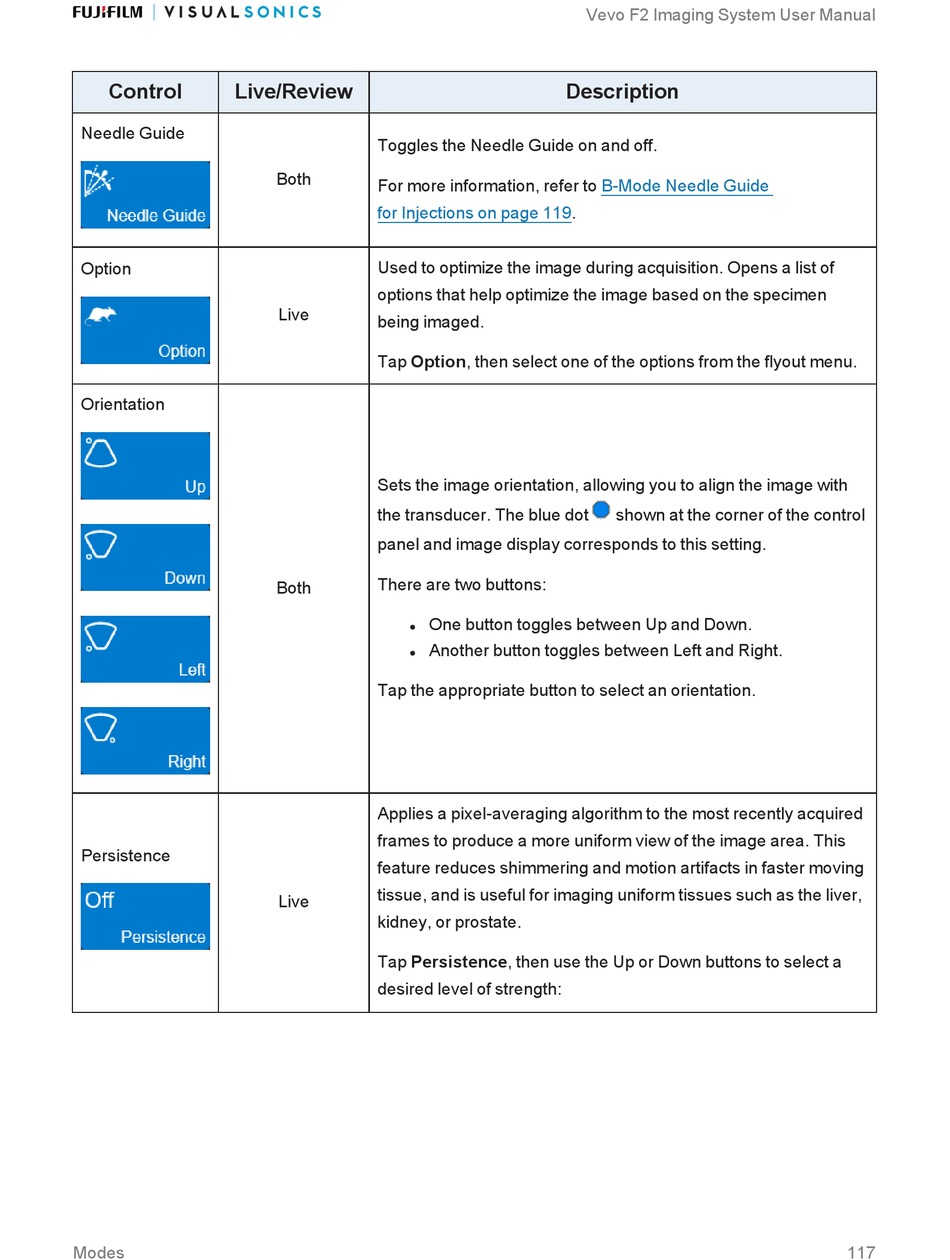

FujiFilm VisualSonics Vevo F2 User Manual page 117

Control Live/Review
Needle Guide
Option
Orientation
Persistence
Modes
Toggles the Needle Guide on and off.
Both
For more information, refer to B-Mode Needle Guide
for Injections on page 119.
Used to optimize the image during acquisition. Opens a list of
options that help optimize the image based on the specimen
Live
being imaged.
Tap Option, then select one of the options from the flyout menu.
Sets the image orientation, allowing you to align the image with
the transducer. The blue dot
panel and image display corresponds to this setting.
There are two buttons:
Both
One button toggles between Up and Down.
l
Another button toggles between Left and Right.
l
Tap the appropriate button to select an orientation.
Applies a pixel-averaging algorithm to the most recently acquired
frames to produce a more uniform view of the image area. This
feature reduces shimmering and motion artifacts in faster moving
tissue, and is useful for imaging uniform tissues such as the liver,
Live
kidney, or prostate.
Tap Persistence, then use the Up or Down buttons to select a
desired level of strength:
Vevo F2 Imaging System User Manual
Description
shown at the corner of the control
