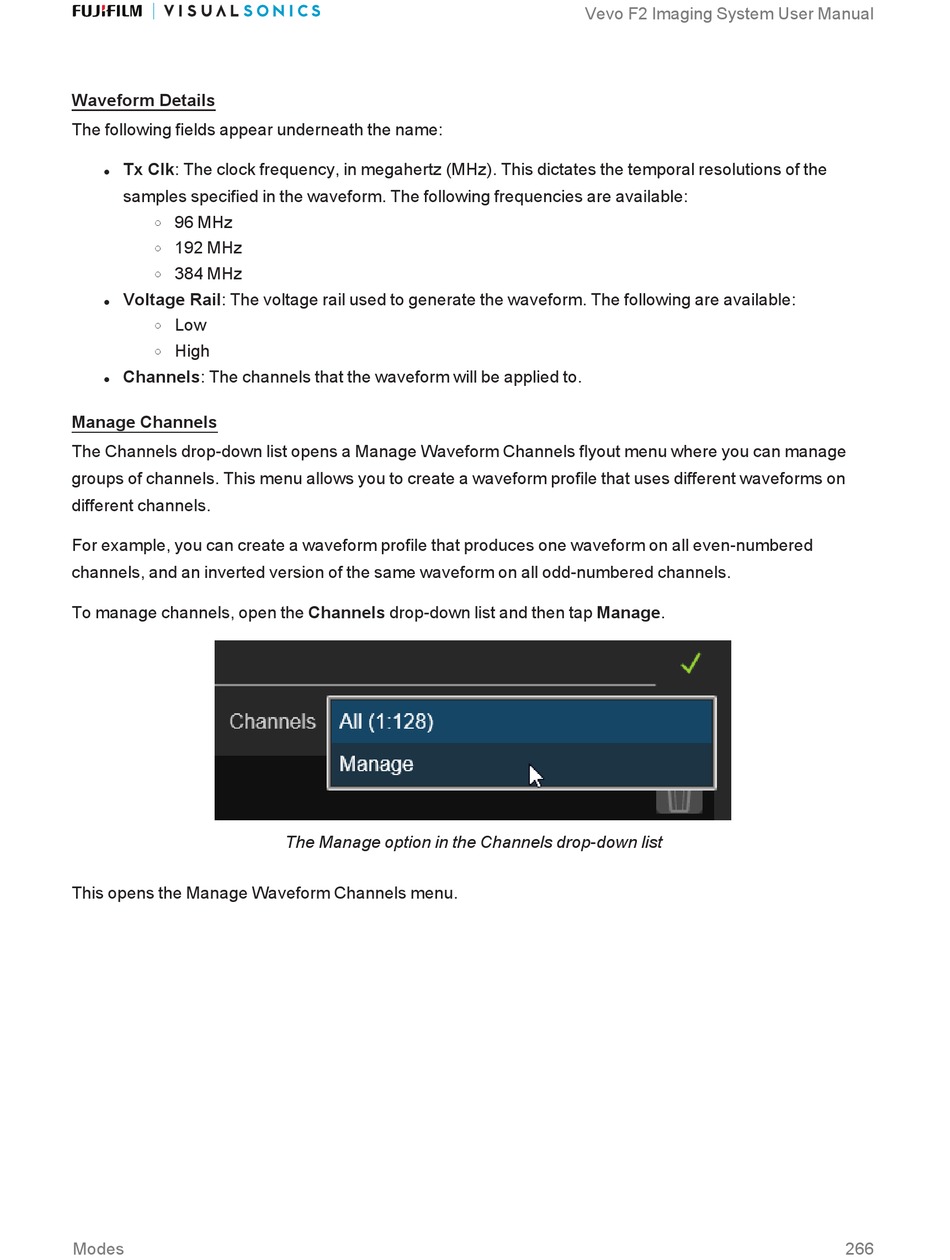

FujiFilm VisualSonics Vevo F2 User Manual page 266

Waveform Details
The following fields appear underneath the name:
Tx Clk: The clock frequency, in megahertz (MHz). This dictates the temporal resolutions of the
l
samples specified in the waveform. The following frequencies are available:
96 MHz
o
192 MHz
o
384 MHz
o
Voltage Rail: The voltage rail used to generate the waveform. The following are available:
l
Low
o
High
o
Channels: The channels that the waveform will be applied to.
l
Manage Channels
The Channels drop-down list opens a Manage Waveform Channels flyout menu where you can manage
groups of channels. This menu allows you to create a waveform profile that uses different waveforms on
different channels.
For example, you can create a waveform profile that produces one waveform on all even-numbered
channels, and an inverted version of the same waveform on all odd-numbered channels.
To manage channels, open the Channels drop-down list and then tap Manage.
This opens the Manage Waveform Channels menu.
Modes
The Manage option in the Channels drop-down list
