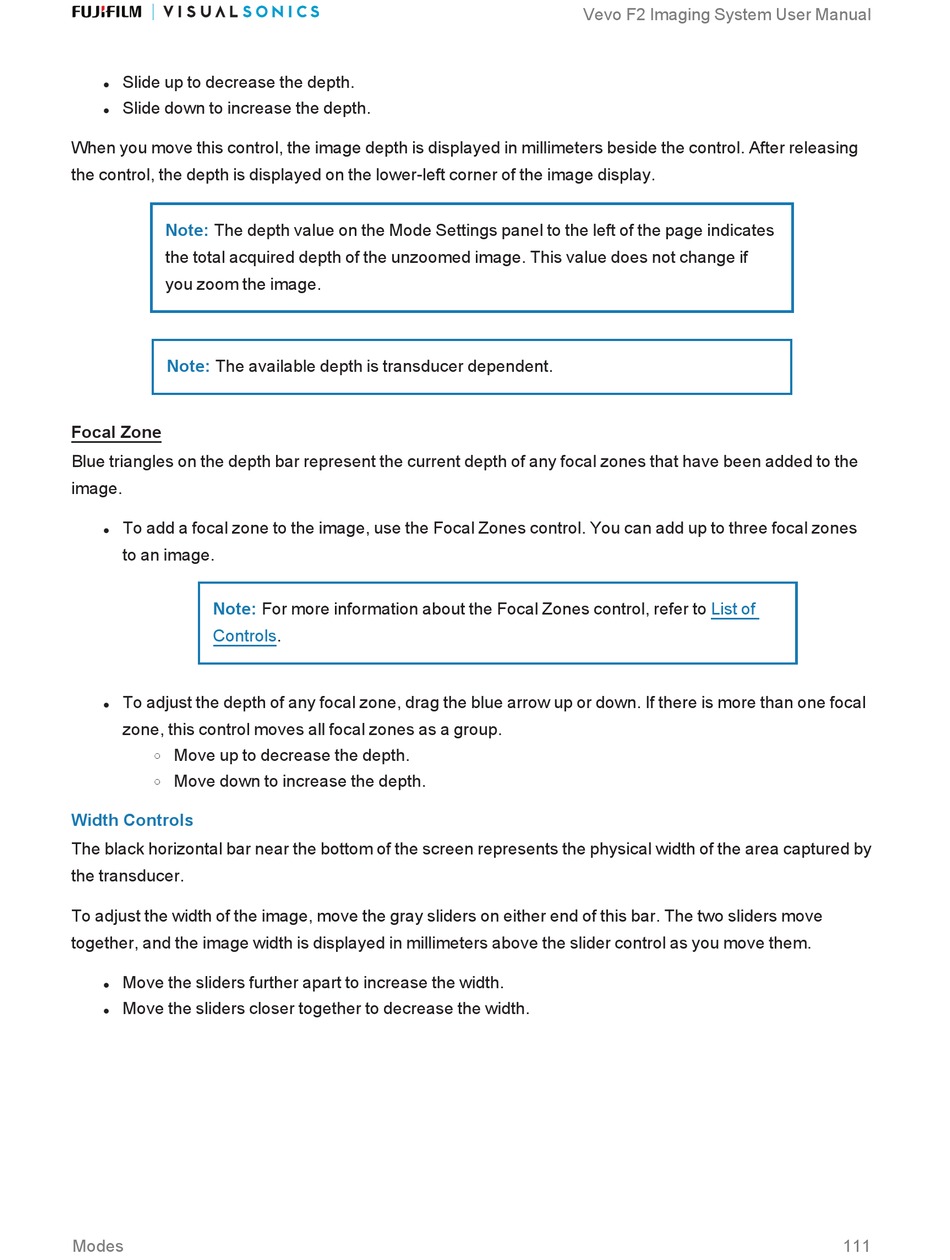

FujiFilm VisualSonics Vevo F2 User Manual page 111

Slide up to decrease the depth.
l
Slide down to increase the depth.
l
When you move this control, the image depth is displayed in millimeters beside the control. After releasing
the control, the depth is displayed on the lower-left corner of the image display.
Note: The depth value on the Mode Settings panel to the left of the page indicates
the total acquired depth of the unzoomed image. This value does not change if
you zoom the image.
Note: The available depth is transducer dependent.
Focal Zone
Blue triangles on the depth bar represent the current depth of any focal zones that have been added to the
image.
To add a focal zone to the image, use the Focal Zones control. You can add up to three focal zones
l
to an image.
Note: For more information about the Focal Zones control, refer to List of
Controls.
To adjust the depth of any focal zone, drag the blue arrow up or down. If there is more than one focal
l
zone, this control moves all focal zones as a group.
Move up to decrease the depth.
o
Move down to increase the depth.
o
Width Controls
The black horizontal bar near the bottom of the screen represents the physical width of the area captured by
the transducer.
To adjust the width of the image, move the gray sliders on either end of this bar. The two sliders move
together, and the image width is displayed in millimeters above the slider control as you move them.
Move the sliders further apart to increase the width.
l
Move the sliders closer together to decrease the width.
l
